Quick Details
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-2024PFS
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100/1000M
-
PoE Standard::
-
IEEE802.3af/at
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
1 Year
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop,Rackmount
-
Operation TEMP/ Humidity:
-
-20~+55°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+80°C, 5%~95% RH Non condensing
-
MAC:
-
2K
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10.8Gbps (non-blocking)
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-2024PFS
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100/1000M
-
PoE Standard::
-
IEEE802.3af/at
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
1 Year
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop,Rackmount
-
Operation TEMP/ Humidity:
-
-20~+55°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+80°C, 5%~95% RH Non condensing
-
MAC:
-
2K
Product Description
Specification
|

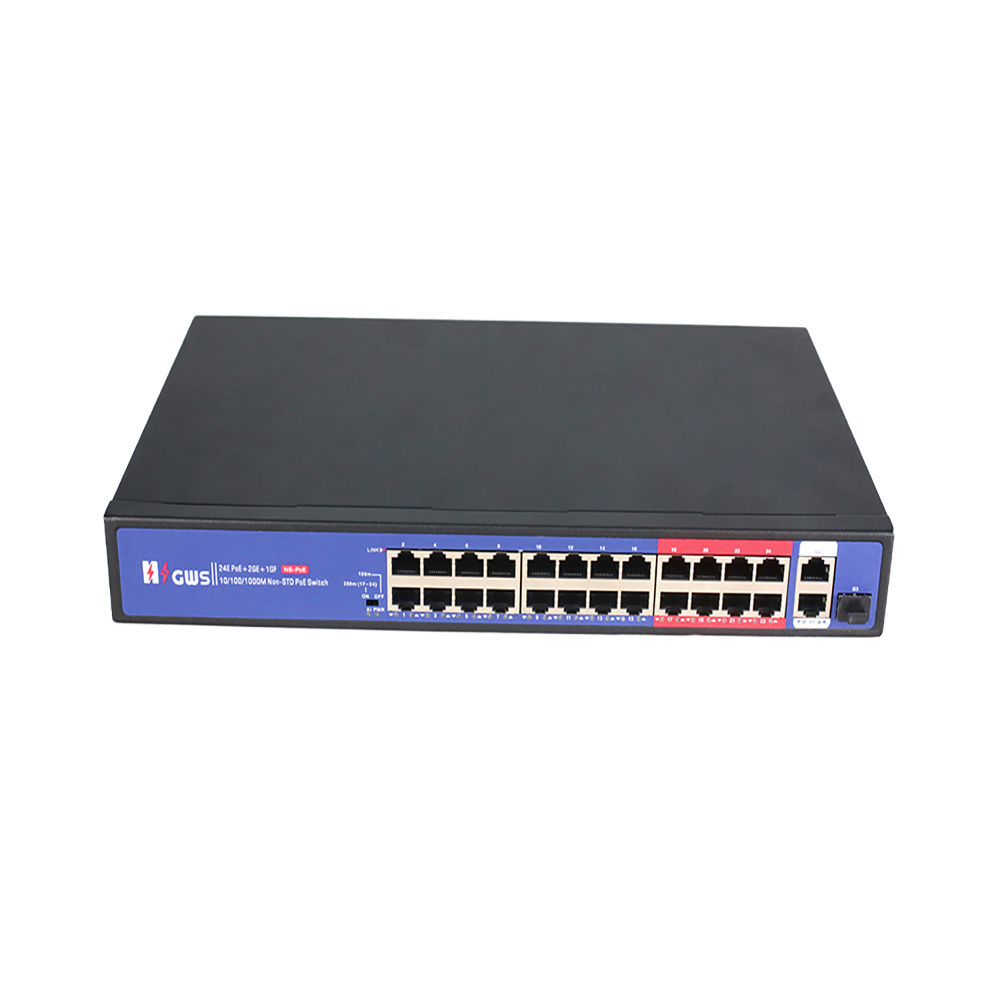

Model
|
GWS-2024PFS
|
|
|
Interface Characteristics
|
|
|
|
Fixed Port
|
24*10/100Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP ports (Data) |
|
|
Ethernet Port
|
Port 1-16/1-24 can support 10/100Base-T(X) and 17-18/25-26 can support 100/1000Base-T(X) automatic detection, full/half-duplex MDI/MDI-X auto-sensing
|
|
|
Functional Switch
|
E: long-distance function (Default: OFF, Use:ON), After opening, ports 9-16/17-24 support 10M/250m long distance
|
|
|
|
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
|
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Optical Fiber Port
|
Gigabit optical fiber port, default no include optical module(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC/SC)
|
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Chip Parameter
|
|
|
|
Network Management Type
|
Unmanaged
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x |
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
|
Switching Capacity
|
10.8Gbps (Non-blocking)
|
|
|
Forwarding
Rate@64byte |
8.04Mpps
|
|
|
MAC
|
2K
|
|
|
Buffer Memory
|
2.75M
|
|
|
Jumbo Frame
|
9.2Kbyte
|
|
|
LED Indicator
|
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: EXTEND (Green)
|
|
|
PoE & Power Supply
|
|
|
|
PoE Port
|
Port 1 to 24 support 24V POE+ power supply
|
|
|
Power Supply Pin
|
4/5(+) 7/8(-)
|
|
|
Max Power Per Port
|
24W, non-standard PoE+
|
|
|
Total PWR / Input Voltage
|
280W/ (AC100-240V)
|
|
|
Power Consumption
|
Standby <8W, Full load <250W
|
|
|
Power Supply
|
Built-in power supply, AC100~240V 50-60Hz 4.1A
|
|
|
Physical Parameter
|
|
|
|
Heat Dissipation
|
No Fan natural cooling
|
|
|
Operation TEMP/ Humidity
|
-20~+55°C, 5%~90% RH Non condensing
|
|
|
Storage TEMP/ Humidity
|
-40~+80°C, 5%~95% RH Non condensing
|
|
|
Dimension (L*W*H)
|
350*215*44mm
|
|
|
Net /Gross Weight
|
<2.5kg / <3.0kg
|
|
|
Installation
|
Desktop, Rack-mounted
|
|
|
Certification & Warranty
|
|
|
|
Lightning Protection
|
Lightning protection: 4KV 8/20us, Protection level: IP30
|
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
|
Warranty
|
1 year, lifelong maintenance.
|
|
