Quick Details
-
Brand Name:
-
BL
-
Model Number:
-
GF-8E2O-G, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
Gigabit Managed Switch
-
Dimension:
-
143*101*44(mm)
-
Frame Filtering and Forward Rate:
-
10*10/100/ 1000Mbps
-
Transfer Method:
-
Store and Forward
-
External power supply:
-
12-24(V)
-
Type:
-
Industrial Managed
-
Support:
-
Vlan
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
Standard
-
Brand Name:
-
BL
-
Model Number:
-
GF-8E2O-G, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
Gigabit Managed Switch
-
Dimension:
-
143*101*44(mm)
-
Frame Filtering and Forward Rate:
-
10*10/100/ 1000Mbps
-
Transfer Method:
-
Store and Forward
-
External power supply:
-
12-24(V)
-
Type:
-
Industrial Managed
-
Support:
-
Vlan
PRODUCT INFORMATION
|
Brand:
|
BL
|
|
PCBA size:
|
143*101*44(mm)
|
|
Interface:
|
10/100/1000Mbps
|
|
External power supply:
|
5-52V
|
|
Transfer Method:
|
Store-and-Forward
|
|
OEM&ODM:
|
yes
|
|
Applicable:
|
factory automation, intelligent transportation, video surveillance and other industrial applications
|

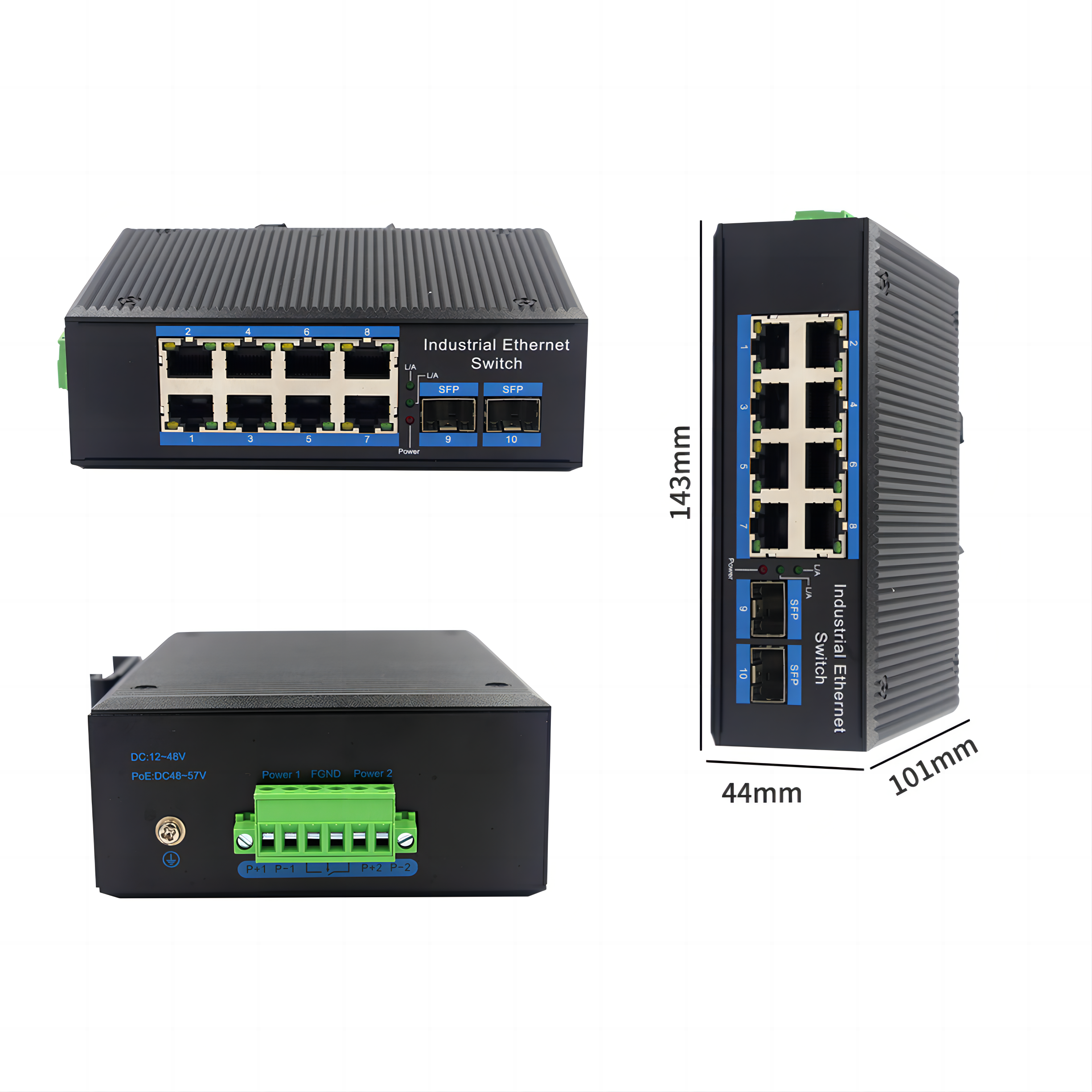

Gigabit Managed Switch 2 Optical 8 Electrical VLAN Network Lightning-proof DIN-Rail SFP Optical Converter for Security Surveillance
Managed industrial Ethernet switch products comply with FCC, CE, ROHS standards. Supporting 2 Gigabit optical ports and 6 Gigabit electrical ports, they support Ethernet Layer 2 protocols required at industrial sites to ensure the stability of the communication network; this series of switches adopts low-power, fanless design to ensure no noise interference, and at the same time, they support -40~85℃ working temperature and good EMC EMC performance to ensure stable operation in harsh industrial environments, and are suitable for industrial application fields such as factory automation, intelligent transportation, video surveillance, etc. to set up fast and stable work. It provides a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to set up a fast and stable network terminal access network.
Product Features
●
Adopting high-quality optoelectronic integration module to provide good optical and electrical characteristics.
●Ensure reliable data transmission and long working life.
●
Supports full-duplex or half-duplex mode with auto-negotiation capability.
●Network ports support fully automatic cross-recognition
●Integrated store-and-forward mechanism, support multiple protocols
●
Port-based VLAN support for easy network planning
●
Supports QoS
●
Supports STP/RSTP to ensure network security.
●Management function: Support WEB management mode.
●Provide three kinds of power protection protection, greatly improve the reliability of the switch power supply.
Supports positive and negative reverse connection protection. Reverse connection can also work normally to prevent misuse and damage to the equipment.
When the equipment is short-circuited, it can quickly cut off the power supply to avoid other accidents.
Can pass 4KV common mode, 1KV differential mode surge test, greatly improving the power supply anti-lightning performance.
●
Supports two power outputs, redundant power supply to ensure uninterrupted operation of the equipment.
Product Name:Industrial Ring Managed Gigabit Switch
Fiber rate:100/1000Base
Interface: 8 electrical ports / 2 SFP optical port
Operating Temperature: High Temperature 85°C Low Temperature -45C
Power input: 12-52V DC redundant power supply
Enclosure: IP40 ultra-thin metal enclosure
Product size: 143*101*44(mm)
Network protocol:
IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
