DVL1000 Deep Well Electronic Water Level Dip meter

DVL1000 Deep Well Electronic Water Level Dip meter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: DVL1000 Deep Well Electronic Water Level Dipmeter

Pressure range:: 30m, 50m,100m,150m,200m,250m,300m,400m,500m

Accuracy:: 1mm

Power supply:: 9v lithium battery

Measurement signal ouput:: LED, buzzer, electricity meter

Material of Probe:: stainless steel

Material of reels:: Nylon or steel

Reels color:: orange, blue, gray, black etc optional

Certificate:: CE

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: VOLLTEL

Model Number:: DVL1000, DVL1000

Type:: DVL1000 Deep Well Electronic Water Level Dipmeter

Pressure range:: 30m, 50m,100m,150m,200m,250m,300m,400m,500m

Accuracy:: 1mm

Power supply:: 9v lithium battery

Measurement signal ouput:: LED, buzzer, electricity meter

Material of Probe:: stainless steel

Material of reels:: Nylon or steel

Reels color:: orange, blue, gray, black etc optional

Certificate:: CE

Product Description

Model DVL1000

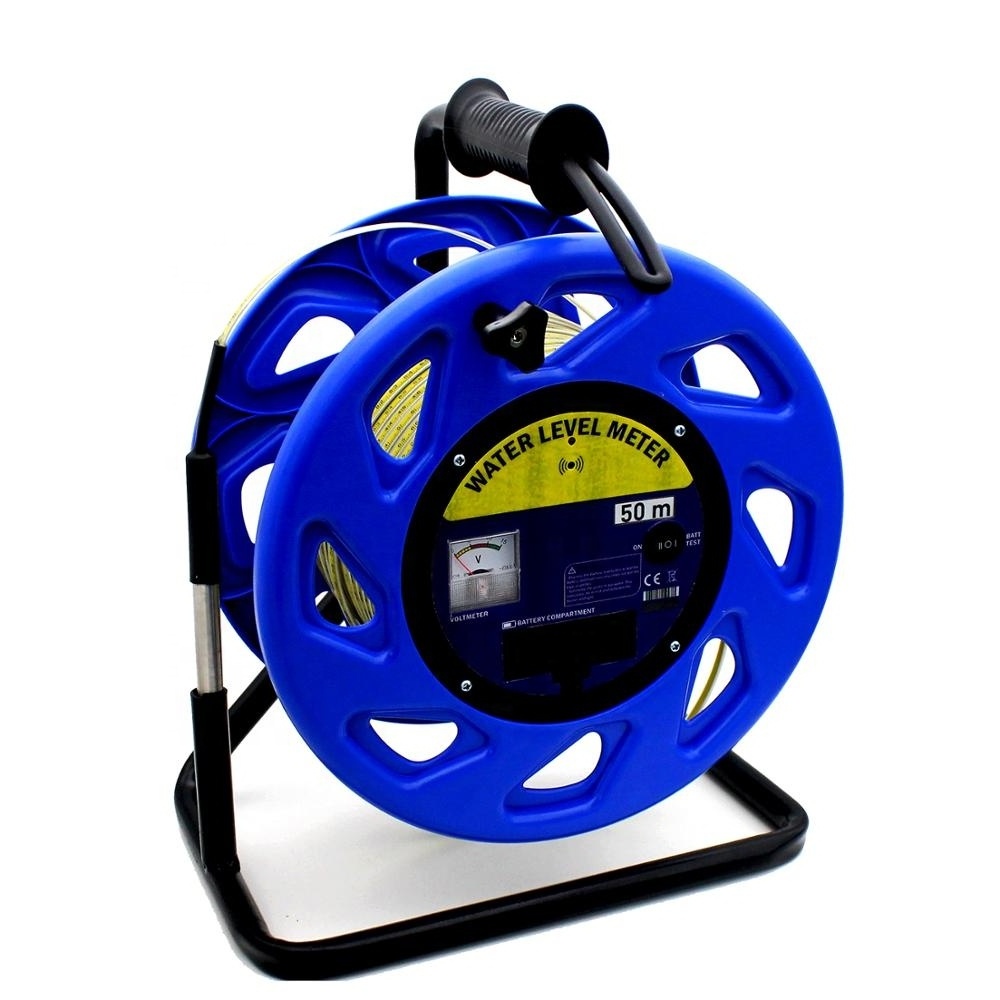

Deep Well Electronic Water Level meter

Up to 600 m

Submersible stainless steel probe
Nylon or steel reels (for tapes longer than 150 m or 400 ft) mounted
on sturdy polyurethane-coated steel frames
Available in metric in lengths up to 600 m (2,000 ft)
Accuracy to each millimeter or 0.01 foot
DC to AC conversion prevents corrosion and mineral buildup on probe
Sensitivity dial filters out false signals from falling water
Removable, sealed electronics module
Security link protects tape by releasing the probe if it becomes stuck in the well

Performance Specifications

Specification	DVL1000-30	DVL1000-50	DVL1000-100	DVL1000-150	DVL1000-200
Depth of the measurement(m)	0~30	0~50	0~100	0-150	0-200
	DVL1000-300	DVL1000-350	DVL1000-400	DVL1000-500	DVL1000-600
	0~300	0~350	0~400	0-500	0-600
Minimum indication(mm)	1.0
Repeat indication (mm)	±2.0
Reels color	Orange, Blue, Black
Reels material	ABS, Metallica
weight (kg)	3.5	4.5	6.5	8.5	11
Power supply(V)	9V battery
Instrument for temperature	-20°C~+60°C
The response time for output	≤1ms
Adaptation range	10μω~1000μω (water quality)
Measurement signal	LED, buzzer, electricity meter
Construction of cable	Conductor: Multi-strand tinning copper wires twisted Core wire: Special PP mixed insulation Ecderon: Special PUR or PE mixed Ecderon color: natural color

Ordering Information

Note: Please contact us for product datasheet

Model	Measuring range	Reels color	Reels material
DLV1000	150 m	Orange	ABS

Benefits:

• Gives you years of accurate use – High-strength tape reduces stretching, ensuring accurate readings over the lifetime of the meter. Corrosion-resistant probe and protected electronics prevent wear and tear. Built-in roller bar guards the tape from rough or jagged well casings.

• Reduces the amount of equipment needed– With the switch of a button you can use the same meter for static and drawdown modes, so you’ll always have the right tool for the job.

• Helps you finish projects faster – The integrated well hanger and roller bar save time and money by both protecting the tape and speeding up deployment. Flexible tape winds smoothly onto the reel and does not stick to wet surfaces and well casings, and vinyl-coated carrying handle is ergonomically designed for easy tape rewinding.

INCLUDES:

• Submersible probe, tape, and reel

• Well hook

• 9V battery

Working principle:

The measurement of the water level by the following two parts:

1. Underground material, it is composed by water level pipe and bottom cover (not include in the system, it is need purchased separately)

Ground receiver-ruler water level meter, it is composed by detect head, ruler cable, receiver system and cable reel.

Detect head: made by steel, inside is a water resistance contact point. When the contact point contact water, the receiver system will open, and when the contact point leave the water, the receiver system will close.

Ruler cable: it made by ruler and cable, and use plastic technology keep them together, and avoid the steel corrosion and simple the operation, make the read more convenient and accurate.

Receiver system: it is composed by sounder, indicate light and peak value indicator, peak value indicate is voltage indicate.

Use method:

In measuring, make the cable reel rotate and push the power button, put the detect head in the water pipe, put the ruler cable in hand and make it drop slowly. When the detect head contact point contact water, the receiver system buzzer will sound. Then you can read the data of the ruler cable and can know the water level.(if the surrounding voice is loudly, maybe you can hear buzzer, so you can observe the indicate light and voltage meter)

User should notice the following two points:

1. when the detect head contact water, buzzer will sound, indicator light on, voltage meter needle rotate. This time you should slowly put the cable and look for the right place of the water level and the pipe or hole’s depth.

2. The accuracy of the indication, which depend on the judge the right place which the buzzer and indicator light on. So practice of the operation is very necessary.

Maintenance:

Because the system use battery to supply power, so when you finish test, you should keep it power off. Power supply is 9V, when it has no power, you should open the cover and change it.

After measurement, please keep the detect head and cable clean, cable rolled in cable reel. And put them in a good condition.

Unauthorized disassembly of the product, it can not put in water horizontally, the cable can not bucking, especially the ends.The detect head should carry and put soft and avoid vibration
