Monitor the working status in real time to ensure that the overall elevation of the ground is consistent
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JIUBANG
Quick Details
-
Weight (KG):
-
1000
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIUBANG
Products Description

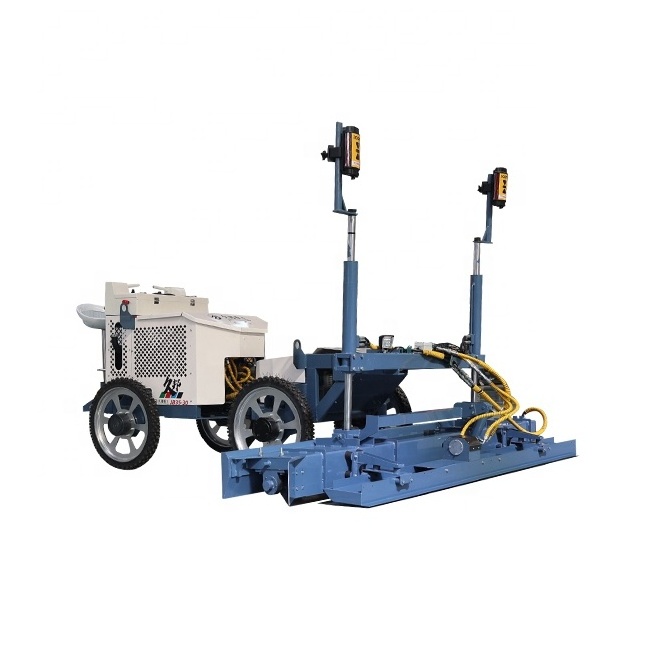

The Jiubang laser screed machine can control the leveling head in real time through the laser receiver, so as to achieve high-precision and rapid concrete leveling, saving time and labor, and is applicable to the construction of workshops, shopping malls, warehouses and other large areas of cement concrete floors.
AUTOMATIC LEVELING DURING CONSTRUCTION
Real-time control and automatic leveling of laser measurement and control system
RAPID CONSTRUCTION AND ONE-TIME FORMING
Flexible operation, high efficiency and small error
Product Paramenters
|
Engine model
|
Brigg & stratton 38E3
|
Length
|
1260 mm
|
||
|
Engine type
|
Air-cooled, 4-stroke, double-cylinder
|
|
|
||
|
Engine power
|
22.8 Kw / 31 HP
|
Height
|
1160 mm
|
||
|
Fuel
|
Gasoline
|
|
|
||
|
Fuel tank
|
20 L (Construction duration 8 hours)
|
Power consumption
|
40 - 60 Kw
|
||
|
Hydraulic oil tank
|
35 L
|
|
|
||
|
Laser control system
|
Danfoss Laser Control System
|
Max.cutting diameter
|
400 mm
|
||
|
Laser transmitter
|
Swiss Leica transmitter
|
Chain pitch
|
0.404 “
|
||
|
Laser transmitter
|
Swiss Leica receiver
|
Chain saw speed
|
40 m/s
|
||
|
Control effect
|
Plane, Slope, Double slope (3D)
|
maxMax. opening of roller
|
410 mm
|
||
|
Control mode
|
Microcomputer laser scanning
|
Max. feed speed
|
4 m/s
|
||
|
Paving method
|
Hydraulic mixing cage paving
|
|
|
||
|
Shock plate width
|
3000 mm
|
Max. opening of rear knife
|
450 mm
|
||
|
Screed thickness
|
60 - 300 mm
|
|
|
||
|
Vibration mode
|
Hydraulic vibration
|
|
|
||
|
Exciting force
|
2000 N
|
|
|
||
|
Drive mode
|
Reducer motor integrated
|
|
|
||
|
Walking speed
|
0 - 4 Km/h (Speed adjustable)
|
|
|
||
|
Tyre
|
Solid anti-skid and stab-resistant tire (Optional wide tire)
|
|
|
||
|
Dimensions
|
3300 x 3460 x 1650 mm
|
|
|
||
|
Weight
|
1000 Kg
|
|
|
||
Details Images
01
CONTROL SYSTEM
02
LASER SYSTEM
Laser automatic leveling, automatic elevation
03
VIBRATING PLATE
Alloy material, widened and thickened, more stable work
04
HIGH-FREQUENCY VIBRATOR
High frequency, large amplitude, smooth appearance after construction
05
STIRRER
Make concrete mixing more uniform
06
TYRE
Solid anti-skid and stab-resistant tires, optional wide tires
MORE DETAILS
More real
details
photos
PRODUCT PHOTOGRAPH
More real product photos
