Quick Details
-
Package:
-
Plywood drum + Standard export carton
-
Jacket Material:
-
LSZH
-
Length:
-
1km or 2km
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Fiber count:
-
1-12 Cores
-
Certification:
-
CE/ROHS/ISO9001/ANATEL
-
MOQ:
-
1 Km
-
Standard:
-
IEC 60794-1 YD/T901-2009
-
Jacket color:
-
White or Black
-
Cable Size:
-
2.0*5.0mm
Quick Details
-
Brand Name:
-
EC
-
Model Number:
-
GJYXCH
-
Place of Origin:
-
Hunan, China
-
Package:
-
Plywood drum + Standard export carton
-
Jacket Material:
-
LSZH
-
Length:
-
1km or 2km
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Fiber count:
-
1-12 Cores
-
Certification:
-
CE/ROHS/ISO9001/ANATEL
-
MOQ:
-
1 Km
-
Standard:
-
IEC 60794-1 YD/T901-2009
-
Jacket color:
-
White or Black
-
Cable Size:
-
2.0*5.0mm

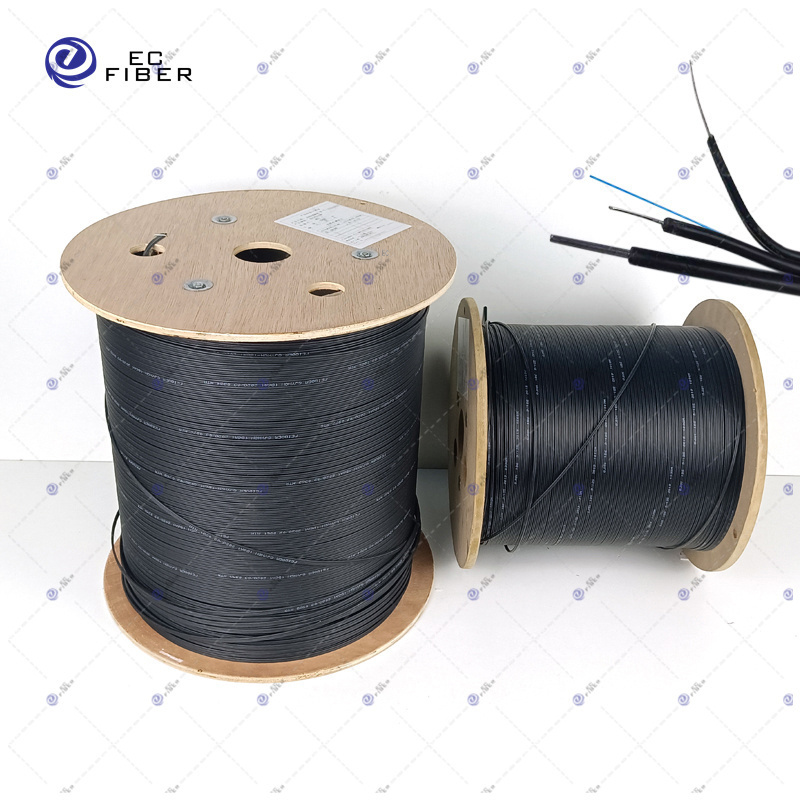

cable factory 1km price fiber optic cable price list Fttx Ftth 1 2 4 6 12 Core Fiber Optic Drop Cable Roll
New LSZH outer sheath,long service life and wear resistance.
The messenger wire is 1.0 millimeter phosphatized steel wire,2pcs strength member is 0.45 millimeter phosphatized steel wire,Strengthen phosphatin g steel wire to protect optical fiber perfectly .
Use coloured G657A optical fiber,can ultimate bending is not easy to break.
The bending resistance of the G657A optical fiber ensures easy and quick construction.
Each roll of drop cable is strictly tested before leaving our factory.
Optical loss is only 3db,this is due to the additon of fast connector.
Can print your company LOGO on the cable in free.
Applications
• Outdoor aerial
Cable Structural Parameter (Take GJYXCH 1 core as an example)
|
Item |
|
Parameters |
|||
|
Fiber Material |
Silica |
||||
|
Self-supporting strength member |
Material |
1.0mm phosphatized Steel wire |
|||
|
Strength member |
Material |
0.45mm phosphatized Steel wire |
|||
|
Outer jacket |
Material |
LSZH |
|||
|
Color |
Black |
||||
|
Min. bending radius |
Static |
20 times cable diameter |
|||
|
Dynamic |
40 times cable diameter |
||||
|
Tensile performance |
Core |
MAT (N) |
|
|
|
|
1 |
600 |
|
|
||
|
Crush |
Short term |
2200N/100mm |
|
|
|
Fiber Parameter (Take G657A1 as an example,can make according to your inquiry)
|
Item |
Unit |
Specification |
|
|
G.657A1 |
|||
|
Mode field diameter |
1310nm |
m m |
8.4-9.2 |
|
1550nm |
m m |
9.3-10.3 |
|
|
Cladding diameter |
m m |
125.0±0.7 |
|
|
Cladding non-circularity |
% |
≤0.7 |
|
|
Core/cladding concentricity error |
m m |
≤0.5 |
|
|
Coating diameter |
m m |
235-245 |
|
|
Coating/cladding concentricity error |
m m |
≤12.0 |
|
|
Bending radius |
m |
≥4 |
|
|
Cable cut-off wavelength |
nm |
≤1260 |
|
|
Attenuation coefficient |
1310nm |
dB/km |
£ 0.35 |
|
1550nm |
dB/km |
£ 0.21 |
|
|
Proof stress level |
kpsi |
≥100 |
|
