Quick Details
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR12N75C
-
Nominal Diameter::
-
320 mm
-
Frequency Range::
-
50-2000HZ
-
Rated Impedance::
-
8Ω
-
Voice Coil Diameter::
-
75 mm
-
Former Material::
-
Glass Fiber
-
Power Capacity::
-
400w
-
Sensitivity (1w/1m)::
-
98DB
-
Magnet::
-
Neodymium ring
-
FS::
-
54Hz
-
Qts::
-
0.33
Quick Details
-
Power:
-
400w
-
Frequency Range (Hz):
-
50-2000HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR12N75C
-
Nominal Diameter::
-
320 mm
-
Frequency Range::
-
50-2000HZ
-
Rated Impedance::
-
8Ω
-
Voice Coil Diameter::
-
75 mm
-
Former Material::
-
Glass Fiber
-
Power Capacity::
-
400w
-
Sensitivity (1w/1m)::
-
98DB
-
Magnet::
-
Neodymium ring
-
FS::
-
54Hz
-
Qts::
-
0.33

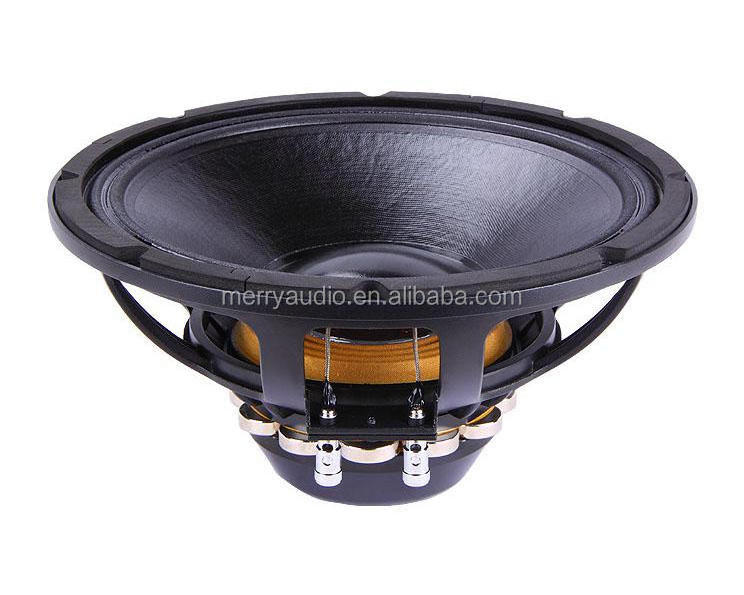

Product Picture
MR12N75C 12”Inch-400W-98dB
Product Description
| MR12N75C |
| 12"-400W-98dB |
| NOMINAL SPECIFICATIONS |
| Nominal Diameter 320mm (12 in) |
| Overall Diameter 320mm(12 in) |
| Bolt circle diameter 296mm |
| Baffle Cutout Diameter 281mm |
| Depth 145mm |
| Net Weight 3.5kg |
| Shipping Box 330×330×150mm |
| Shipping Weight 4kg |
| TECHNICAL PARAMETERS |
| Nominal lmpedance 8Ω |
| Minimum lmpedance 6.2Ω |
| AES Power Handing(1) 400W |
| Maximum Power Handling(4) 800W |
| Sensitivity(1W/1m) 98dB |
| Frequency Range 50-2000Hz |
| Voice Coil Diameter 75mm(3in) |
| Winding Material Aluminum |
| Former Material Glass Fiber |
| Winding Depth 20mm |
| Magnetic Gap Depth 10mm |
| Flux Density 1.25T |
| Magnet Neodymium Ring |
| Demodulation Aluminum Ring |
| Suspension(5) M-Roll |
| THIELE & SMALL PARAMETERS |
| Fs 54Hz |
| Re 5.4Ω |
| Qes 0.34 |
| Qms 7 |
| Qts 0.33 |
| Vas 55 dm³ |
| Sd 531cm² |
| Xmax 8.5mm |
| Mms 64g |
| Bl 18.68N/A |
| Cms 0.14mm /N |
| η(Eta Zero) 4.3% |
| EBP 160Hz |
Application:
Our speakers are widely used for professional concert performance, weekend party, meeting and speech, indoor and outdoor activities. You can just enjoy the music anywhere and anytime. MerryAudio---your reliable one-stop pro Audio partner.
