Quick Details
-
Dimension(L*W*H):
-
1600*500*1200mm
-
Weight:
-
190kg
-
Power:
-
220V/380V
-
Certification:
-
CE
-
Product name:
-
Shotcrete Concrete Injector Cement Mortar Spraying Machine
-
Model:
-
HG-411
-
Voltage:
-
220V/380V
-
Conveying pressure:
-
3Mpa
-
Mixer capacity:
-
50L
-
Max. particle size:
-
6mm
-
Gross weight:
-
190kg
-
Packing size:
-
1600*500*1200mm
-
Usage:
-
Concrete foam machine
-
Air compressor:
-
2.2kw
Quick Details
-
Application:
-
Construction mortar spraying machine
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HG
-
Dimension(L*W*H):
-
1600*500*1200mm
-
Weight:
-
190kg
-
Power:
-
220V/380V
-
Certification:
-
CE
-
Product name:
-
Shotcrete Concrete Injector Cement Mortar Spraying Machine
-
Model:
-
HG-411
-
Voltage:
-
220V/380V
-
Conveying pressure:
-
3Mpa
-
Mixer capacity:
-
50L
-
Max. particle size:
-
6mm
-
Gross weight:
-
190kg
-
Packing size:
-
1600*500*1200mm
-
Usage:
-
Concrete foam machine
-
Air compressor:
-
2.2kw
Product Description

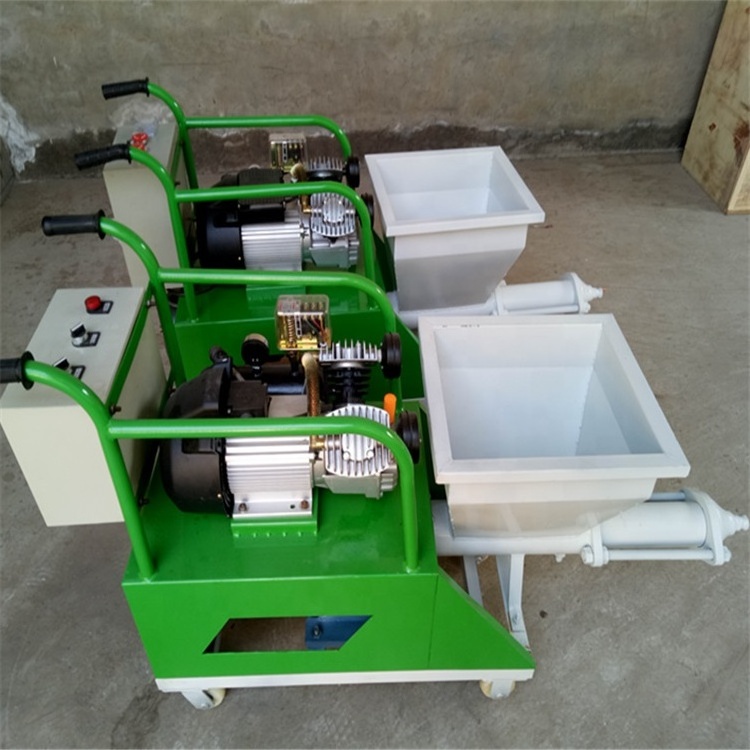

Shotcrete Concrete Injector Cement Mortar Spraying Machine
Themortar pump with double cylinder and single acting. It has the advantages of compact structure, reliable operation, low fault rate, convenient cleaning and maintenance, etc. This machine can be used not only for pumping / grouting the cement slurry or mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.
Size Information
Shotcrete Concrete Injector Cement Mortar Spraying Machine
parameters
|
Product name
|
mortar concrete spraying grouting machine
|
|
Model
|
411
|
|
Air compressor pressure
|
3Mpa
|
|
Voltage
|
380v/220v
|
|
Horizontal conveying height
|
30m
|
|
Vertical conveying height
|
20m
|
|
Diameter of passing particle
|
6mm
|
|
Displacement volume
|
120 squared per hour
|
|
Water: ash: sand ratio
|
0.7~1：1：3
|
|
Bucket capacity
|
50L
|
|
Supporting air compressor
|
0.26
|
|
Matching nozzle diameter
|
32mm
|
|
Main motor power
|
5kw
|
|
Air compressor power
|
2.2kw
|
|
Vibration motor
|
No
|
|
Demesion
|
1600*500*1200mm
|
|
Weight
|
190kg
|
Detailed Images
Shotcrete Concrete Injector Cement Mortar Spraying Machine
1,Directional-control ball valve.
2, Hydraulic drive.
3, Integrate pump head and hopper, prevent education and deposition together with the paddle agitating.
4, High frequency work cylinder, less pulse;
5, Compact structure, convenient for maintaining.
2, Hydraulic drive.
3, Integrate pump head and hopper, prevent education and deposition together with the paddle agitating.
4, High frequency work cylinder, less pulse;
5, Compact structure, convenient for maintaining.
Packing&Shipping
Packing:
Shotcrete Concrete Injector Cement Mortar Spraying Machine
Leading time: according your order quantity
Company Introduction
Shanghai Honggang Machiney
Co., Ltd. is located in Shanghai, China.
We are a professional construction machine supplier
and constantly focus on the quality of our products.
With experience of 30 years, we offer innovating solutions in raw material processing machine series. Our products have been sold to more than 30 countries and regions with very competitive price and advantaged function to meet different demonds of customers. We devote to contribute an additional value to customers.
FAQ
1. Why choose us?
We are mainly engaged in production of construction industrial with 10 years. The mainly member of chinese national fraternity of construction machinery dealer;
Promise all products offered 12months warranty.
2. What's your delivery time?
Around 5~10 workdays to delivery from China port.
3. What is the MOQ?
1 sets.
4. Whether can OEM?
Yes.
5. Do you have agent or distributor in our countyr?
There are so many end-users in your country, and just we are looking for agent in your country. Do you have any interest?
