Quick Details
-
Power:
-
0.75kw
-
Min. Lifting Height:
-
9 m
-
Table Size:
-
0.64*0.58m
-
Overall Dimensions:
-
1.36*0.85*1.98m
-
Weight:
-
320 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
New design aerial work platform
-
Voltage:
-
AC380V/AC220V/50HZ
-
Color:
-
Blue ,Orange,OEM
-
Material:
-
aluminum profile
-
Model:
-
Electric Sizer Lift Table
-
Application:
-
Fixing ceiling,Pasting wall work ect
-
Feature:
-
Low noise
-
Lift Speed:
-
3-6m/min
-
New configuration:
-
yes
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LESP
-
Power:
-
0.75kw
-
Min. Lifting Height:
-
9 m
-
Table Size:
-
0.64*0.58m
-
Overall Dimensions:
-
1.36*0.85*1.98m
-
Weight:
-
320 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
New design aerial work platform
-
Voltage:
-
AC380V/AC220V/50HZ
-
Color:
-
Blue ,Orange,OEM
-
Material:
-
aluminum profile
-
Model:
-
Electric Sizer Lift Table
-
Application:
-
Fixing ceiling,Pasting wall work ect
-
Feature:
-
Low noise
-
Lift Speed:
-
3-6m/min
-
New configuration:
-
yes

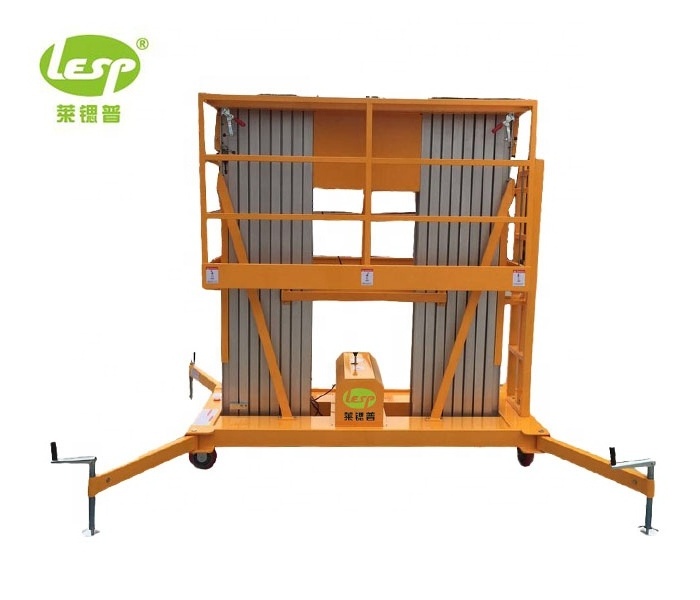

Welcome to visit hydraulic lift table ,hydraulic manual lift platform, 10.7M aerial work platform:
Regarding the delivery, we guarantee 7-15 delivery on time.
| Model | Lift Height(m) | Max Lifting Height(m) | Rated Loading Capacity(kg) | Table Size(m) | Voltage(v) | Motor Power(KW) | Total Weight(kg) | Overall Dimensions(M) | |
| singel mast | GTWY4-100 | 4 | 5.7 | 125 | 0.64*0.58 | AC220/50HZ | 0.75 | 250 | 1.18*0.80*1.65 |
| singel mast | GTWY 6-100 | 6 | 7.7 | 125 | 0.64*0.58 | AC220/50HZ | 0.75 | 280 | 1.28*0.80*1.65 |
| singel mast | GTWY 8-100 | 8 | 9.7 | 125 | 0.64*0.58 | AC220/50HZ | 0.75 | 300 | 1.28*0.80*1.98 |
| singel mast | GTWY 9-100 | 9 | 10.7 | 125 | 0.64*0.58 | AC220/50HZ | 0.75 | 320 | 1.36*0.85*1.98 |
| dual-mast | GTWY 6-200S | 6 | 7.7 | 200 | 1.16*0.60 | AC220/50HZ | 1.1 | 450 | 1.36*0.85*1.65 |
| dual-mast | GTWY 8-200S | 8 | 9.7 | 200 | 1.32*0.60 | AC220/50HZ | 1.1 | 550 | 1.36*0.85*1.98 |
| dual-mast | GTWY 9-200S | 9 | 10.7 | 200 | 1.32*0.60 | AC220/50HZ | 1.1 | 600 | 1.56*0.90*1.98 |
| dual-mast | GTWY 10-200S | 10 | 11.7 | 200 | 1.32*0.60 | AC220/50HZ | 1.1 | 650 | 1.56*0.90*2.04 |
| dual-mast | GTWY 11-200S | 11 | 12.7 | 200 | 1.32*0.60 | AC220/50HZ | 1.1 | 680 | 1.56*0.90*2.04 |
| dual-mast | GTWY 12-200S | 12 | 13.7 | 200 | 1.42*0.60 | AC220/50HZ | 1.1 | 700 | 1.66*0.97*1.98 |
| Three mast | GTWY 13-250S | 13 | 14.7 | 200 | 1.56*0.80 | AC220/50HZ | 2.2 | 1000 | 1.69*1.13*2.25 |
| Three mast | GTWY 14-200S | 14 | 15.7 | 200 | 1.56*0.82 | AC220/50HZ | 2.2 | 1100 | 1.69*1.13*2.48 |
| Four mast | GTWY 16-200S | 16 | 17.7 | 200 | 1.60*0.82 | AC220/50HZ | 2.2 | 1400 | 1.80*1.15*2.48 |
| Four mast | GTWY 18-150S | 18 | 19.7 | 150 | 1.48*0.80 | AC220/50HZ | 2.2/1.1 | 1600 | 2.26*1.30*2.45 |
Scissor aerial work platform suitable for factories, construction sites, hotels, airports, railway stations, yards High-altitude
equipment installation, maintenance and sanitation of the head, gymnsiums and other tall buildings, field power Facilities,
overhead pipes, lifting machinery maintenance, ect...Scissor aerial work platform is to protect Job security, improve the
work efficiency of the ideal equipment, aetial work safe, convenient, fast.
Scissor Aerial Work Platform Product Features:
Lifting mechanism uses high-strength manganess steel rectangular pipe production. Has a safety device to prevent overloading
of the lifting platform. Security features to prevent hydraulic line valve. Blackouts case of emergency lowering device.
