- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
930*680*1000mm
-
Product name:
-
Quarry Stone Cutting Machine
-
Key word:
-
Hydraulic Rock Splitter
-
Power:
-
Diesel/Electric
-
Diesel Power Pack:
-
Changchai 6hp or 8hp
-
Hydraulic Power Unit:
-
Pressure Adjustable 10-60Mpa
-
Piston stroke (mm):
-
90/220mm
-
Punching depth (mm):
-
>900mm
-
Punch diameter (mm):
-
46mm
-
Crack width (mm):
-
10-20mm
-
Splitting time (s):
-
10-15/
Quick Details
-
Weight (KG):
-
180
-
Application:
-
rock splitter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
930*680*1000mm
-
Product name:
-
Quarry Stone Cutting Machine
-
Key word:
-
Hydraulic Rock Splitter
-
Power:
-
Diesel/Electric
-
Diesel Power Pack:
-
Changchai 6hp or 8hp
-
Hydraulic Power Unit:
-
Pressure Adjustable 10-60Mpa
-
Piston stroke (mm):
-
90/220mm
-
Punching depth (mm):
-
>900mm
-
Punch diameter (mm):
-
46mm
-
Crack width (mm):
-
10-20mm
-
Splitting time (s):
-
10-15/

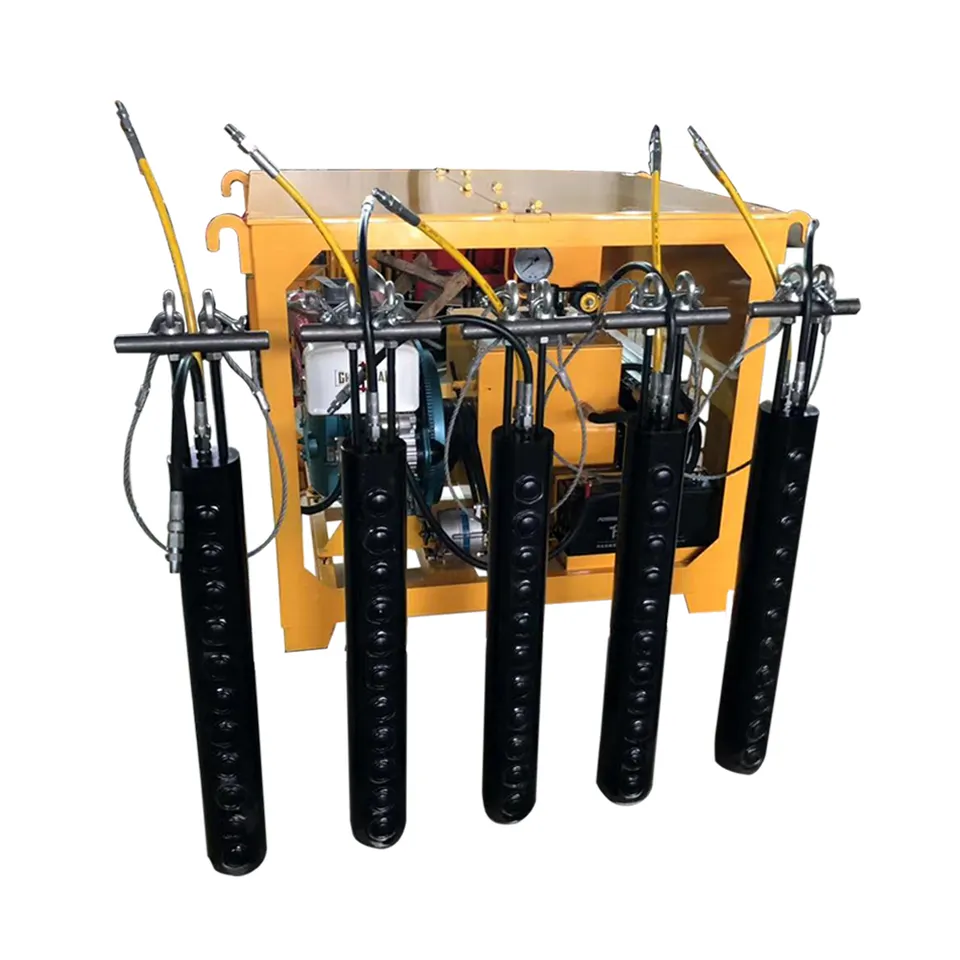

Machine Description
Rock splitting machine is a machine used to split rocks, which is used in construction, decoration, engineering construction, ore mining operations, secondary disintegration of large ores, partial and complete demolition of concrete components. Safe, fast, adjustable oil pressure.
Product Parameters
During operation, the pump station outputs high-pressure oil to drive the cylinder, generating huge thrust. When the high-pressure oil output from the hydraulic station pushes the middle wedge of the splitting gun forward, it pushes the side wedges to both sides, splitting the object to be split in a predetermined direction in a very short time.
|
Model
|
YG-250
|
YG-350
|
YG-450
|
||
|
Power
|
Diesel Power Pack
|
|
|
||
|
Diesel Power Pack
|
Changchai 6hp or 8hp
|
|
|
||
|
Hydraulic Power Unit
|
Pressure Adjustable 10-60Mpa
|
|
|
||
|
Wedge length (mm)
|
250
|
350
|
450
|
||
|
Piston stroke (mm)
|
90/220mm
|
90/220mm
|
90/220mm
|
||
|
Punching depth (mm)
|
>500mm
|
>700mm
|
>900mm
|
||
|
Punch diameter (mm)
|
42mm
|
46mm
|
46mm
|
||
|
Crack width (mm)
|
10-20mm
|
10-20mm
|
10-20mm
|
||
|
Splitting time (s)
|
10-15/s
|
10-15/
|
10-15/s
|
||
|
Splitting force (T)
|
500t
|
800t
|
800t
|
||
|
Weight (kg)
|
30kg
|
32kg
|
35kg
|
||
Display
