Quick Details
-
Brand Name:
-
JXLJQ
-
Keyword:
-
Metal Flexible Pipe
-
Certificated:
-
CE ROHS REACH
-
Usage:
-
Cable Protector
Quick Details
-
Type:
-
Flexible
-
Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
JXLJQ
-
Keyword:
-
Metal Flexible Pipe
-
Certificated:
-
CE ROHS REACH
-
Usage:
-
Cable Protector
Technical Data:

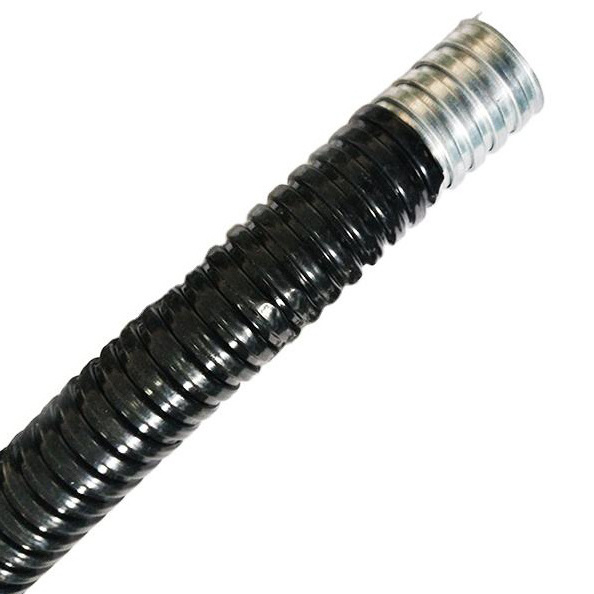

Material : galvanized steel (inside)+PVC(outside)
Operating range: -10 ℃ ~+80 ℃ ,100 ℃ in short time
Standard color: Black, Grey
Certificate: RoHS
Cutting tool: Pliers
| Tube size |
Inner diameter
d |
Outer diameter
D |
Bending radius
R |
Meter/Roll |
| φ8 | 8.0±0.3 | 11.8±0.5 | 45 | 200 |
| φ10 | 10.0±0.3 | 14.5±0.5 | 55 | 100 |
| φ12 | 12.5±0.3 | 16.8±0.5 | 65 | 100 |
| φ16 | 15.5±0.3 | 20.2±0.5 | 85 | 50 |
| φ20 | 20.0±0.3 | 25.0±0.5 | 100 | 50 |
| φ25 | 25.0±0.3 | 30.7±0.5 | 120 | 50 |
| φ32 | 32.0±0.3 | 38.6±0.5 | 150 | 30 |
| φ38 | 38.0±1.0 | 44.6±1.0 | 180 | 30 |
| φ51 | 51.0±1.0 | 59.0±1.0 | 220 | 20 |
| φ64 | 64.0±1.5 | 73.5±1.5 | 310 | 20 |
| φ75 | 75.0±2.0 | 83.5±2.0 | 350 | 10 |
| φ100 | 100.0±3.0 | 109.5±3.0 | 410 | 10 |
Application:
It is widely used in power plants, power transmission systems, communication systems,
transportation system for protecting the electrical wires.
