Quick Details
-
Core Components:
-
Precision
-
Standard:
-
JIS MAS403
-
Material:
-
20CrMnTi
-
Material Hardness:
-
HRC48-52
-
Run out accuracy:
-
≤0.01mm
-
Clamping range:
-
1mm-25mm
-
Customized:
-
available
-
Roundness:
-
<0.8μm
-
Carburized depth:
-
>0.8mm
-
Surface roughness:
-
>0.8mm
-
Quality control:
-
100% inspection
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WARWICK
-
Model Number:
-
BT50-FMA25.4-60
-
Core Components:
-
Precision
-
Standard:
-
JIS MAS403
-
Material:
-
20CrMnTi
-
Material Hardness:
-
HRC48-52
-
Run out accuracy:
-
≤0.01mm
-
Clamping range:
-
1mm-25mm
-
Customized:
-
available
-
Roundness:
-
<0.8μm
-
Carburized depth:
-
>0.8mm
-
Surface roughness:
-
>0.8mm
-
Quality control:
-
100% inspection

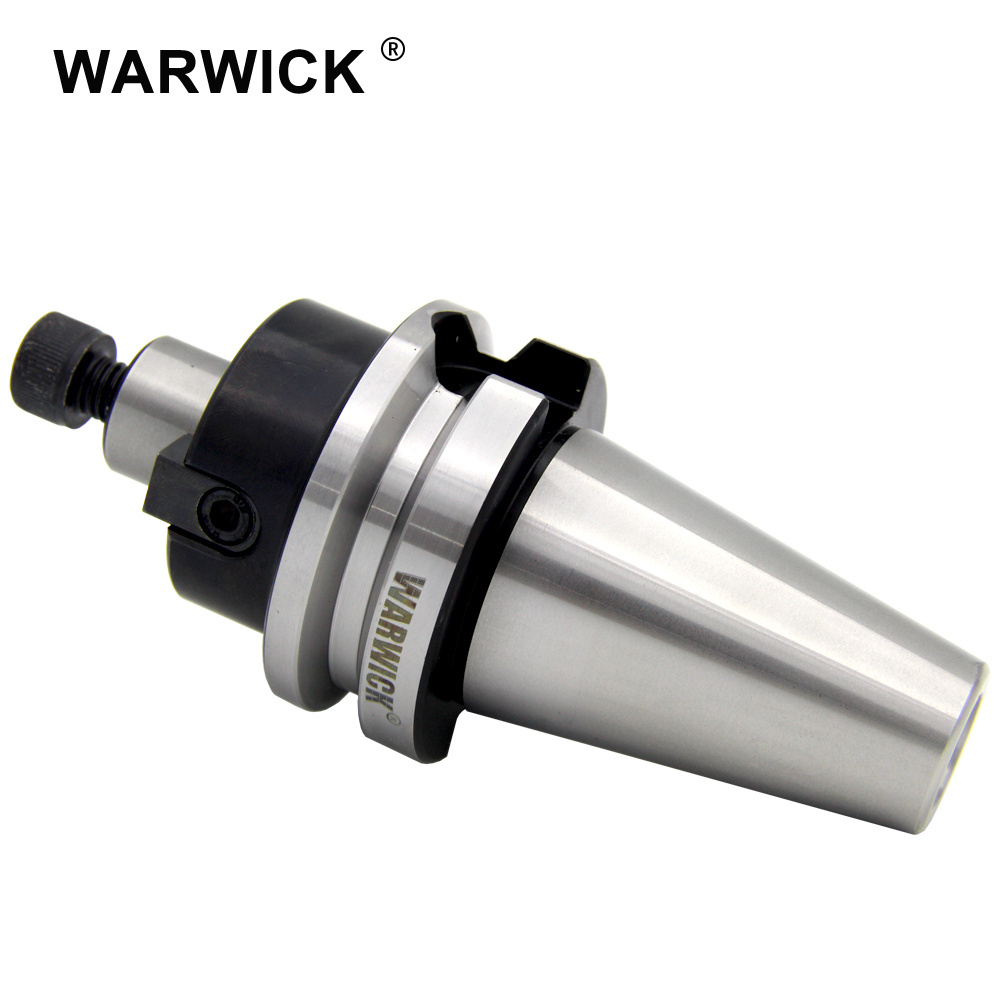

BT50 tool holder FMA25.4 cnc shell end face mill arbor
PRODUCT FEATURES:
1.Standard face mill arbors for clamping indexable face mills. The range is available in most tapers in lengths up to 160mm (or 200mm on selected tapers).
2.Taper ground to AT3 or better accuracy standard for maximum contact with spindle.
3.All Face mill arbors keep the tolerance ≤0.01mm.
4.The pre-balance can reach G6.3 8,000 rpm,dynamic balance by Haimer Machine, G2.5 is available.
5.Internal hole tolerance : H5(DIN-1835-B standard).
