Quick Details
-
Model Number:
-
FWG-500
-
Certification:
-
CE
-
Voltage:
-
220v
-
Flow Rate:
-
0.04m3/s
-
design head:
-
1-3m
-
Output voltage:
-
AC220V
-
POWER:
-
500W
-
Flow Rate(m3/s):
-
0.03m3/s
-
Water head:
-
1-3m
-
Speed:
-
1500rpm
-
Material:
-
Copper+Metal
-
Weight:
-
18KG
-
Package Included:
-

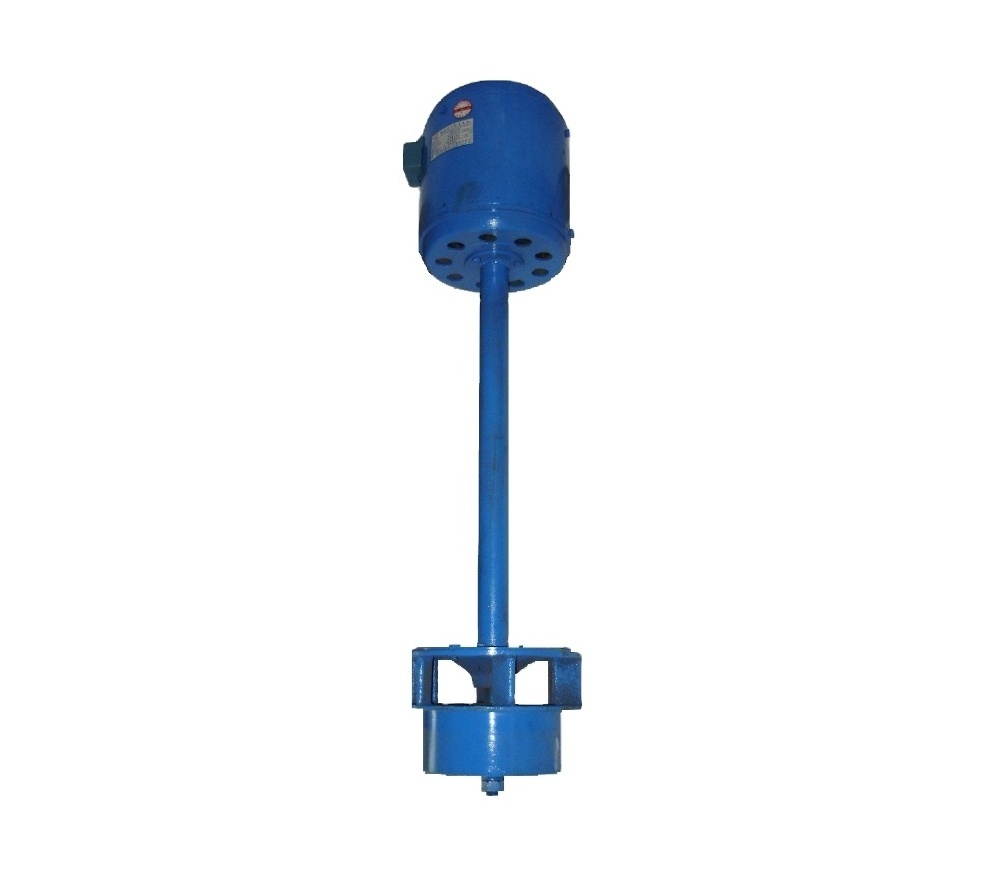

1x Micro Hydro Generator
-
Type:
-
Hydropower
-
Application:
-
Electricity Generation
Quick Details
-
Power:
-
500w
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLTXNY
-
Model Number:
-
FWG-500
-
Certification:
-
CE
-
Voltage:
-
220v
-
Flow Rate:
-
0.04m3/s
-
design head:
-
1-3m
-
Output voltage:
-
AC220V
-
POWER:
-
500W
-
Flow Rate(m3/s):
-
0.03m3/s
-
Water head:
-
1-3m
-
Speed:
-
1500rpm
-
Material:
-
Copper+Metal
-
Weight:
-
18KG
-
Package Included:
-
1x Micro Hydro Generator
-
Type:
-
Hydropower
-
Application:
-
Electricity Generation
1.With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high
efficiently. 2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling 3. Gearless, direct
-drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance. 4. Die casting alluminum
alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion Application: This unit can be used in remote areas for
temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping. Suitable
for household lighting, TV, electric furnace and other pure resistance household appliances NOT suitable for household appliances
such as refrigerators, washing machines, pumps, etc. Installation Procedure: After the unit foundation be poured with concrete is
solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and
no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the
machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact
with the foundation plane. NOTE: 500w hydro generator only can be used with the following two conditions:. 1) The vertical Water
level difference between the unit foundation and the hydro generator must be in this range:7-15M 2) The water flow must can fully
fill the water tube that is above 7.5cm diameter all the time
efficiently. 2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling 3. Gearless, direct
-drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance. 4. Die casting alluminum
alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion Application: This unit can be used in remote areas for
temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping. Suitable
for household lighting, TV, electric furnace and other pure resistance household appliances NOT suitable for household appliances
such as refrigerators, washing machines, pumps, etc. Installation Procedure: After the unit foundation be poured with concrete is
solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and
no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the
machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact
with the foundation plane. NOTE: 500w hydro generator only can be used with the following two conditions:. 1) The vertical Water
level difference between the unit foundation and the hydro generator must be in this range:7-15M 2) The water flow must can fully
fill the water tube that is above 7.5cm diameter all the time
Power: 500W
Voltage: 220 (V)
Head: 1-3m
Flow: 0.03m3/s
Speed: 500-1500rpm
Weight: 18kg
Package size:82x25x25cm
Included: 1x Micro Hydro Generator
1,Competitive Price
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
