Quick Details
-
Weight (KG):
-
345 KG
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max.planing width::
-
400mm
-
HS code::
-
84659200
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZQM
-
Machine Type:
-
bench planer
-
Weight (KG):
-
345 KG
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max.planing width::
-
400mm
-
HS code::
-
84659200

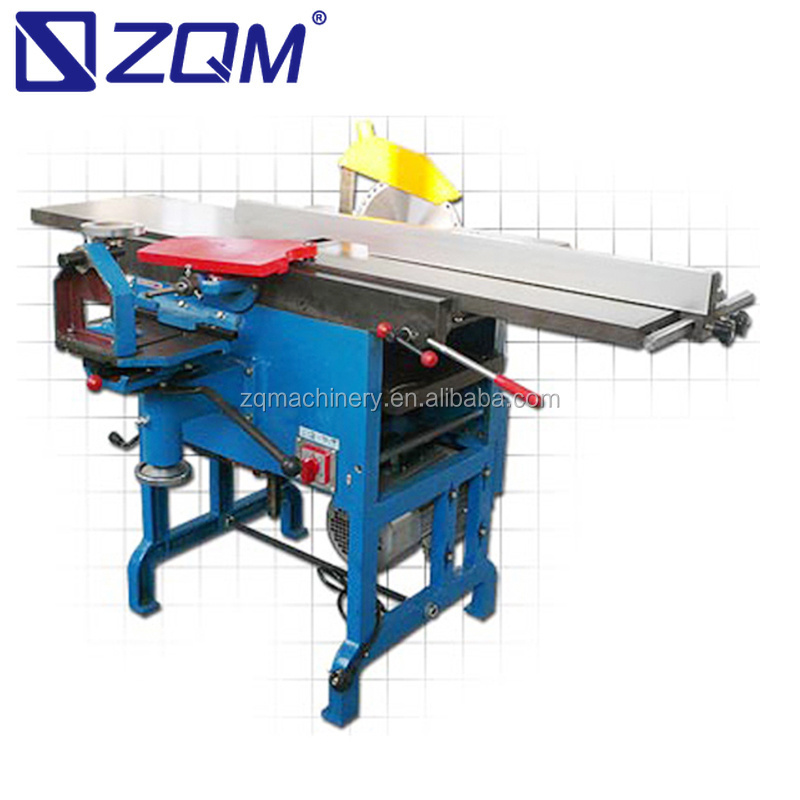

PFA16'' Multi-functional woodworking machine also can be called as multi use woodworking machine , which have the following Features:
1.Adopts with 77mm planing arbor with 4 planing knives.
2. Three lifting screw.
3. Accompany with front and back thickness table.
4. Equips with the newest mortiser section, it is more convenient for operator.
5. Novel appearance.
Function (the basic function) of
Multi-functional woodworking machine / multi use woodworking machine
Specification:
|
Model |
PFA16'' |
|
Max. planing width(mm) |
400 |
|
Max. planing thickness(mm) |
3 |
|
Planing thickness(mm) |
6-200 |
|
Max. sawing thickness(mm) |
80 |
|
Max. drilling diameter (mm) |
13 |
|
Max. tenoning length(mm) |
100 |
|
Max. mortising depth(mm) |
90 |
|
Motor power (kw) |
2.2 |
|
Net/ gross weight (kw) |
345/355 |
|
Dimension(cm) |
160 x 166 x 88 |
ZQM only offers the machines with high quality, for the multi use woodworking machine, we only use the steady plywood case for packing, which can afford the long way ocean tranmission.
Workshop of
Multi-functional woodworking machine / multi use woodworking machine
:
Packing details of
Multi-functional woodworking machine / multi use woodworking machine :
Promise:
All the cast iron parts are made by Raw iron, not similar with some one made bay Scrap iron (the cast iron made by this is crisp and there are so many gas hole on the surface)
Any question, please feel free to contact me!
