Quick Details
-
Panel Dimensions:
-
670mm*1580*35mm
-
Panel Efficiency:
-
14.90-21.98%
Quick Details
-
Brand Name:
-
Yangtze
-
Model Number:
-

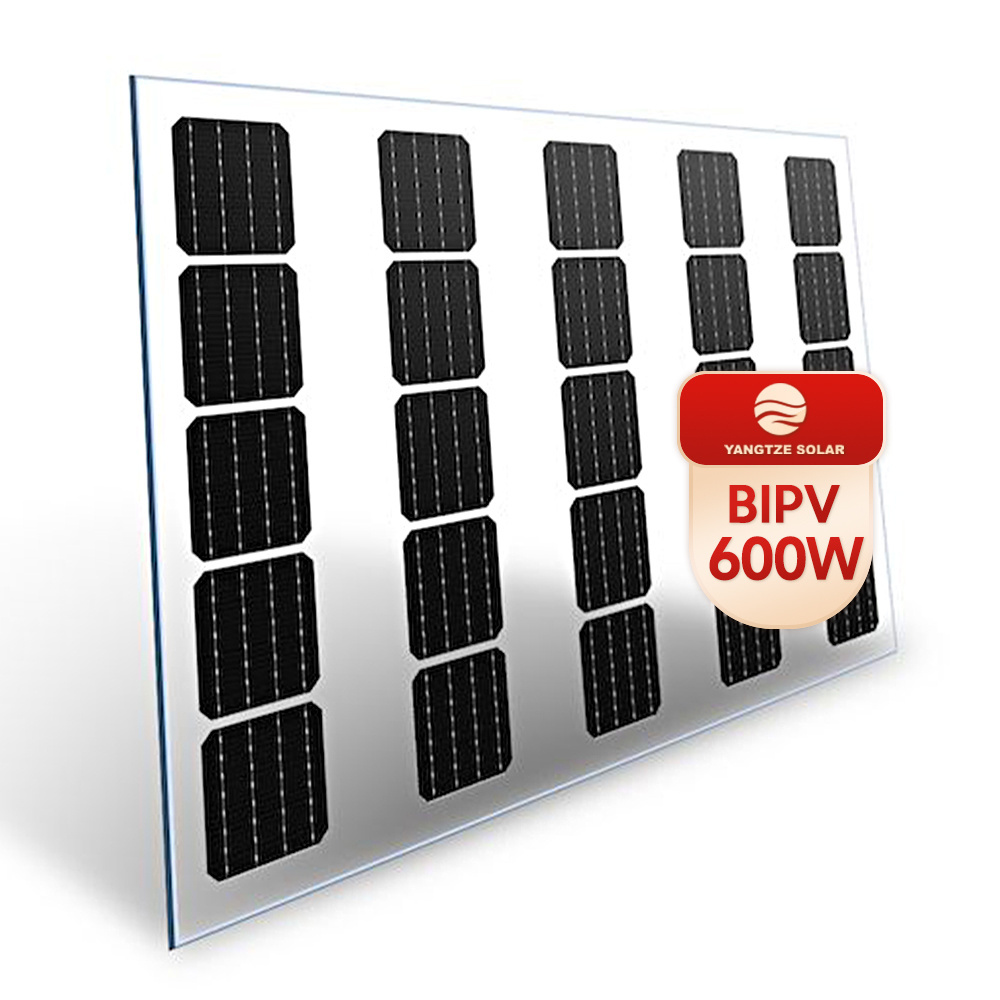

YS600M-BI
-
Place of Origin:
-
China
-
Panel Dimensions:
-
670mm*1580*35mm
-
Panel Efficiency:
-
14.90-21.98%
Product Description
|
Model Type
|
|
YS500M-BI
|
|
YS600M-BI
|
YS700M-BI
|
|||||
|
Rated Maximum Power at STC
|
|
500W
|
|
600W
|
700W
|
|||||
|
Maximum Power Voltage (Vmp)
|
|
48.40V
|
|
42.10V
|
39.58V
|
|||||
|
Maximum Power Current (Imp)
|
|
10.33A
|
|
14.25A
|
17.69A
|
|||||
|
Open Circuit Voltage ( Voc)
|
|
58.08V
|
|
49.99V
|
46.75V
|
|||||
|
Short Circuit Current (Isc)
|
|
10.54A
|
|
14.97A
|
18.92A
|
|||||
|
Module Efficiency
|
|
22.81%
|
|
23.27%
|
23.30%
|
|||||
|
Working Conditions&Working Conditions
|
|
|
|
|
|
|||||
|
Glass Thickness
|
|
2mm 4mm 6mm 8mm 10mm 12mm
|
|
|
|
|||||
|
Transmittance
|
|
10% 20% 30% 40% 50% 60% 70% 80%
|
|
|
|
|||||
|
Operating Temperature
|
|
-40°c~+85°c
|
|
|
|
|||||
|
Maximum System Voltage
|
|
DC 1000V(IEC) / 1500V(IEC)
|
|
|
|
|||||
|
Maximum Series Fuse
|
|
25A
|
|
|
|
|||||
|
Power Tolerance
|
|
0~+5W
|
|
|
|
|||||
|
Temperature Coefficient of Pmax
|
|
-0.35%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
|
-0.29%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
|
+0.048%/°c
|
|
|
|
|||||
|
STC
(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
|
|
|
|
|
|
|||||
|
NOCT
(Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
|
|
|
|
|
|
|||||
Product Details
GLASS
Anti-reflective glass
Service life is as long as 25 years
Module efficiency is increased by 2%
Service life is as long as 25 years
Module efficiency is increased by 2%
Solar Cell
tier 1,PERC/HJT/N Type/TOPCONtechnology,highest power,10% more watt than others
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Black/Silver Color Optional
Junction Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
500N Tensile Strength
Female/Male/Fuse
Label
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
OEM with your Logo
Professional Silver Color
