Standard:GSK
Optional:Fanuc,
Siemens, Mitsubishi and others
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
835 r.p.m
-
Width of bed (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
8000
-
Travel (X Axis)(mm):
-
350 mm
-
Travel (Z Axis)(mm):
-
4000 mm
-
Positioning Accuracy (mm):
-
0.015
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
2200*1900*2000
-
Brand Name:
-
Rowdai
-
Model Number:
-
CK6180
-
Voltage:
-
380V
-
Weight (KG):
-
11800
-
CNC or Not:
-
CNC
-
Machine Type:
-
Flat Bed CNC Lathe
-
Product name:
-
CNC Lathe Mechine
-
Keyword:
-
Automatic CNC Lathe Machine
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Control system:
-
SIEMENS GSK FANUC Mitsubishi (optional)
-
Chuck:
-
Manual/Hydraulic 3 Jaw Chuck
-
Function:
-
Turning Milling Drilling Threading
-
Product type:
-
Cnc Horizontal Turning Lathe Machine
-
Precision:
-
High Precision High Accuracy
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
8000
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
835 r.p.m
-
Width of bed (mm):
-
600 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
8000
-
Travel (X Axis)(mm):
-
350 mm
-
Travel (Z Axis)(mm):
-
4000 mm
-
Positioning Accuracy (mm):
-
0.015
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
2200*1900*2000
-
Brand Name:
-
Rowdai
-
Model Number:
-
CK6180
-
Voltage:
-
380V
-
Weight (KG):
-
11800
-
CNC or Not:
-
CNC
-
Machine Type:
-
Flat Bed CNC Lathe
-
Product name:
-
CNC Lathe Mechine
-
Keyword:
-
Automatic CNC Lathe Machine
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Control system:
-
SIEMENS GSK FANUC Mitsubishi (optional)
-
Chuck:
-
Manual/Hydraulic 3 Jaw Chuck
-
Function:
-
Turning Milling Drilling Threading
-
Product type:
-
Cnc Horizontal Turning Lathe Machine
-
Precision:
-
High Precision High Accuracy
Product Description

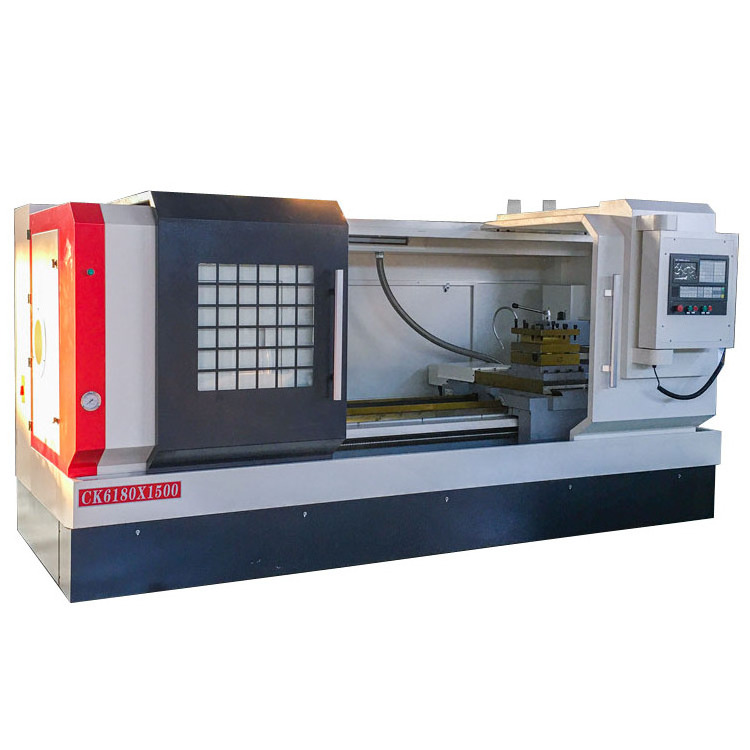

CK6180 CNC Lathe Machine
CK61 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity,etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs,sleeves, special-shaped surfaces and screw workpieces.
GSK/SIEMENS/FANUC (optional) CNC system and full digital AC servo system, X and Z axis are all controlled by semi-closed loop,ball screw pair adopts C3 precision ball screw, electrical components are all imported or domestic famous brands, Comply with CE or domestic 3C certification.
The machine tool is equipped with a well-known domestic brand electric tool post, which has the characteristics of high positioning accuracy, high strength, and good seismic performance.
The machine tools are inspected strictly in accordance with the inspection procedures before they leave the factory. Each machine tool uses a laser interferometer to detect the X and Z axis positioning accuracy and repeat positioning accuracy to ensure the stability and reliability of the machine tool.
GSK/SIEMENS/FANUC (optional) CNC system and full digital AC servo system, X and Z axis are all controlled by semi-closed loop,ball screw pair adopts C3 precision ball screw, electrical components are all imported or domestic famous brands, Comply with CE or domestic 3C certification.
The machine tool is equipped with a well-known domestic brand electric tool post, which has the characteristics of high positioning accuracy, high strength, and good seismic performance.
The machine tools are inspected strictly in accordance with the inspection procedures before they leave the factory. Each machine tool uses a laser interferometer to detect the X and Z axis positioning accuracy and repeat positioning accuracy to ensure the stability and reliability of the machine tool.
Product Advantages
Product Features
* Manually scrape and grind the joint surfaces between the headstock of the machine tool and the bed, tailstock, and pallet. The whole machine adopts laser interferometer for detection, which effectively guarantees the positioning accuracy and repeatability of the Z axis and X axis. Backlash and machine stability.
* The machine tool is made of high-strength cast iron, and special materials of copper and chromium are added. The quenching depth of the bed guideway reaches 3mm, which effectively improves the wear resistance and stability of the machine tool.
* The machine tool adopts centralized lubrication, and the head box lubrication adopts high temperature resistant grease. Aiming at the hot weather in the south, the cleanliness and heat dissipation characteristics of the head box are guaranteed, and the service life of the bearing is effectively extended.
* The main shaft of the machine tool adopts HRBbearings, the main shaft through hole is φ 105mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.
* The machine tool uses Nanjing technology ball screws, Z-axis ball screws, and X-axis ball screws with a tensile structure,which improves the accuracy of the outer circle and inner hole dimensions of the workpiece.
* The machine tool adopts four-station, eight-station (optional) ,also can optional for power turret.
* Domestic well-known brand electrical appliances
* The machine tool is made of high-strength cast iron, and special materials of copper and chromium are added. The quenching depth of the bed guideway reaches 3mm, which effectively improves the wear resistance and stability of the machine tool.
* The machine tool adopts centralized lubrication, and the head box lubrication adopts high temperature resistant grease. Aiming at the hot weather in the south, the cleanliness and heat dissipation characteristics of the head box are guaranteed, and the service life of the bearing is effectively extended.
* The main shaft of the machine tool adopts HRBbearings, the main shaft through hole is φ 105mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.
* The machine tool uses Nanjing technology ball screws, Z-axis ball screws, and X-axis ball screws with a tensile structure,which improves the accuracy of the outer circle and inner hole dimensions of the workpiece.
* The machine tool adopts four-station, eight-station (optional) ,also can optional for power turret.
* Domestic well-known brand electrical appliances
|
SPECIFICATIONS
|
Units
|
CK6180
|
|
Swing Over Cross Slide
|
mm
|
800
|
|
Maximum turning diameter on skateboard
|
mm
|
450-480
|
|
Max truning length
|
mm
|
1000/1500/2000/3000/4000/5000/8000
|
|
Maximum cutting diameter
|
mm
|
800
|
|
Type and code of spindle end
|
-
|
D11 / A11
|
|
Taper of spindle front hole and taper hole
|
-
|
1:20 18
|
|
Main shaft hole diameter
|
-
|
105
|
|
number of speeds
|
rpm
|
Four-speed
|
|
Range of spindle speed
|
r/min
|
30-84/53-150/125-350/300-835
|
|
Main motor power
|
kw
|
11
|
|
Chuck diameter
|
mm
|
400 mm three-jaw / 400 mm four-jaw
|
|
X axis speed
|
mm/min
|
4
|
|
Z axis speed
|
mm/min
|
6
|
|
X axis stroke
|
mm
|
350
|
|
Z axis stroke
|
400 mm
|
1000/1500/2000/3000/4000/5000/8000
|
|
The tailstock diameter
|
mm
|
100
|
|
The tailstock travel
|
mm
|
250
|
|
Taper of spindle taper hole of tailstock
|
-
|
MT6
|
|
Standard tool rest form
|
-
|
Electric 4 stations
|
|
Tool rest transposition time (per station)
|
s
|
1.2
|
|
Tool rest transposition and repeated positioning accuracy
|
″
|
0.005
|
|
Knife party size
|
mm
|
32*32
|
|
Weight
|
kg
|
3200-11800
|
|
Dimension
|
mm
|
10220 * 1900 * 2000
|
Product Details
Standard:Manual chuck
Optional:Hydraulic chuck
Standard:4 station electric tool post
Optional:6/8 station electric turret
Standard:Manual tailstock
Optional:Hydraulic tailstock
