Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine
Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine

Hualong Italy ESA system 5 Axis Bridge Saw CNC granite cutting machine marble cutting machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $39000
≥3 Sets
US $36000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity:
High Speed
Place of Origin:
Fujian, China
Brand Name:
HUALONG
Voltage:
380V/50Hz
Dimension(L*W*H):
5700*3260*2765mm
Weight:
4000 kg
Marketing Type:
New Product 2023
Max. diameter of blade::
450mm
Cutting head rotation:
0-360°
Blade tilt:
0-90°
Worktable tilt:
0-85°
Guide rail:
Hiwin Linear Guide
Nesting:
Manual or automatic
Camera Optional:
Nesting Automatic and Manual
Certification:
CE
Diameter of saw blade:
350-450mm
Dimensions of working platform:
3500*2100mm

Quick Details

Type:
Stone Cutting Machine
Power:
18.8kw main motor
Cutting thickness (max):
90MM
Production Capacity:
High Speed
Place of Origin:
Fujian, China
Brand Name:
HUALONG
Voltage:
380V/50Hz
Dimension(L*W*H):
5700*3260*2765mm
Weight:
4000 kg
Marketing Type:
New Product 2023
Max. diameter of blade::
450mm
Cutting head rotation:
0-360°
Blade tilt:
0-90°
Worktable tilt:
0-85°
Guide rail:
Hiwin Linear Guide
Nesting:
Manual or automatic
Camera Optional:
Nesting Automatic and Manual
Certification:
CE
Diameter of saw blade:
350-450mm
Dimensions of working platform:
3500*2100mm
VR

CNC Stone Machine

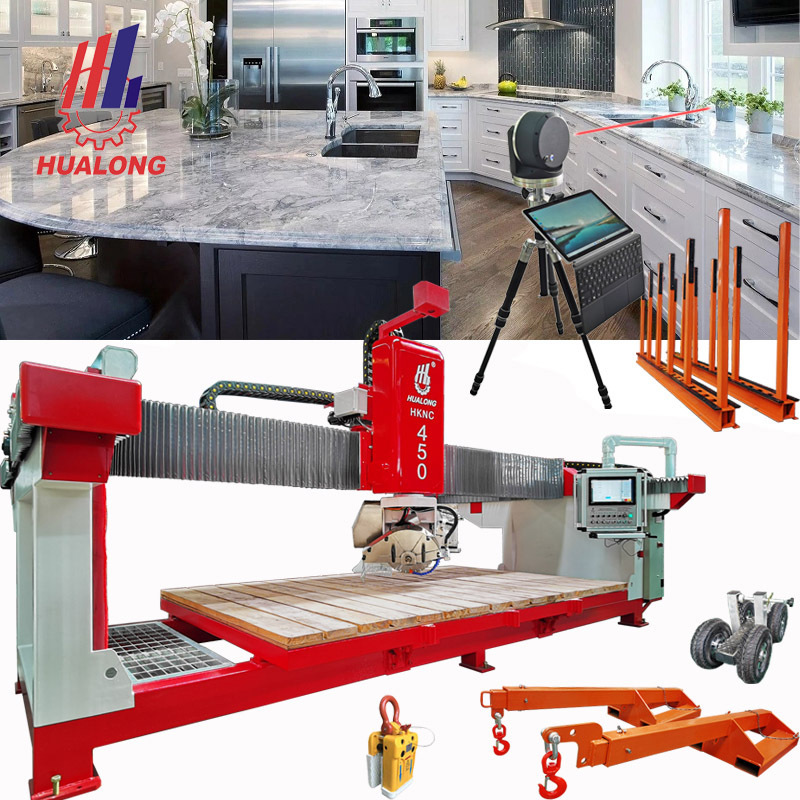

5 axis interpolated cnc bridge saw HKNC-450 is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.

Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving

Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
1) 5 axis lnterpolation with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamferring cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monobloc structure with size suitable for container
.
6) Manual cuts available for simple machining.
7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system

Technical Data for HKNC-450
Diameter of blade
mm
350- 450
Max. cutting thickness
mm
90
Max. cutting length
mm
3500
Max. lifting travel
mm
250
Worktable dimensions
mm
3500x2100
Max. lifting weight by sunction cups
kg
200
Power of main motor
kw
15
Power of cutter frame  motor
kw
2
Power of crossbeam shifting motor
kw
1.1
Power of lifting motor
kw
0.85
Power of hydraulic station motor
kw
2.2
Gross power
kw
22kw
Water consumption
m3/h
2
Dimension (L x W x H)
mm
5700x3260x2765
Gross Weight
kg
4000

Application fields:

* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades

Control system -- CNC
Brand: Esa
Original: Italy

Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.


Digital Servomotor
Brand: ESA
Original: Italy

A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, and C axises
Software - Pegasus/zues CAD/CAM
Brand: Pegasus Original: Italy

* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings
Slab Image Capture
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Slab Thickness Detector (optional)


Origin: China

System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Rubber Platform (Optional)
Waterproof and no deformation
Electric Cabinet
ESA, Schneider、Sanch and other b rands of electric companents are adopted to ensure stable performance.
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
