Quick Details
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Qiyao
-
Model Number:
-
QY1RB-M
-
Length:
-
30~2000m
-
Roll Width:
-
1.2m can be customzied
-
Color:
-
customized
-
Printing:
-
OEM printing is avaiable
-
Product Name:
-
Woven Fabric Backed Anti-glare Aluminum Foil Thermal Insulation
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support, Onsite Installation, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Other
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Qiyao
-
Model Number:
-
QY1RB-M
-
Length:
-
30~2000m
-
Roll Width:
-
1.2m can be customzied
-
Color:
-
customized
-
Printing:
-
OEM printing is avaiable
-
Product Name:
-
Woven Fabric Backed Anti-glare Aluminum Foil Thermal Insulation
Description
Foil Backed
Floor
Foam Insulation

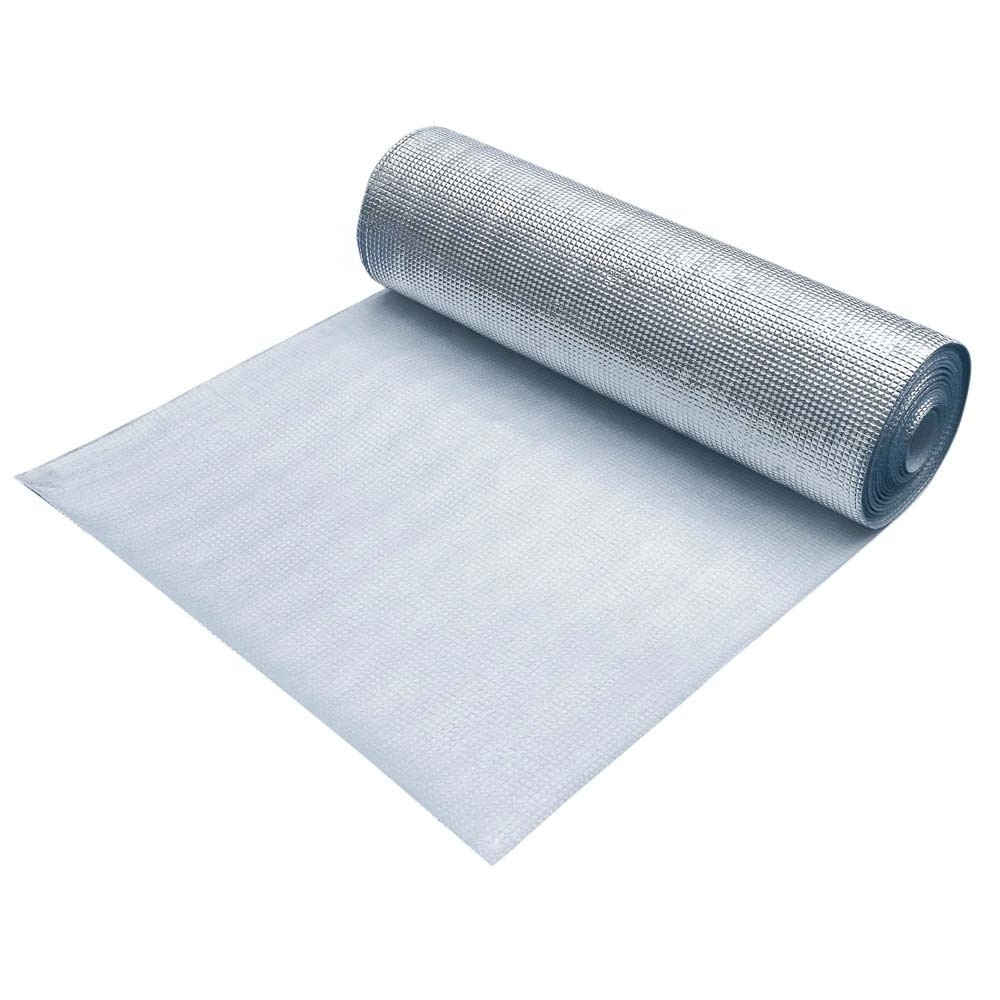

Floor Foam Isulation is a Multi Layered Aluminium with a dense Foam Membrane, making it the ideal solution for under Carpets, Laminate, Vinyl and Wood.Floor-Foam is a 3-4mm dense foam membrane with a aluminium foils either side.
At only 3-4mm thick Floor-Foam effectively insulates your floor while keeping the floor height to a minimum. It is most popular with use on cold wooden floors as this product helps prevent drafts and cold from rising.
|
Specification
|
|
|
|
Structure
|
Aluminum Foil/EPE Foam/Aluminum Foil
Metalized Foil/EPE Foam/Metalized Foil
|
|
|
Weight
|
\50-150gsm
|
|
|
Size:
|
1.2mx25m/1.2x50m or customized
|
|
|
Packing:
|
1 roll/ clear plastic bag or customized logo printing packing bag accept
|
|
|
Edge Tearing Resistance(AS/NZS 4201.2)
|
432N
|
|
|
R-Value
|
0.1~0.7 m² K/W
|
|
|
Reflectivity
|
95%-97%
|
|
|
Emissivity
|
0.03 or 0.05
|
|
|
Noise reduction
|
26dba
|
|
|
Permeability
|
0.03gsm/KPA
|
|
|
Temperature
|
-50℃~80℃
|
|
|
Steam Permeability
|
0.032
|
|
|
MOQ
|
3000 Square Meters
|
|
|
Features
|
|
|
|
*High heat-shielding and noise-suppressing properties; Absolute waterproofness - the foil repels water;
*High environmental friendliness - the materials from which it is made are used even in the food industry;
*Small layer thickness, which gives serious advantages in terms of preserving the usable area of the room;
*Simple and easy to use; Inedible for rodents - a very relevant property when it comes to floor insulation;
|
|
|
Details Images
HOW TO INSTALL:
1. Rolling out FloorFoam
Start by rolling out FloorFoam Insulation either vertically or horizontally on the concrete floor. Floor Foam can then easily be cut by using Scissors or a Cutting Knife.
2. Fixing Down FloorFoam
Floor Foam is fixed onto concrete floors by using Foil Double Sided Tape, or Non-Solvent Glue. Ensure Floor Foam
Insulation is fully taped and sealed on butt joints on the floor. Also tape Floor Foam around the perimeter. Taping and sealing ensures no draught or moisture can rise up through the floor.
3. Install Preferred Final Flooring
Once your concrete floor has been covered with Floor Foam, next you can install your desired flooring. Wood & laminate flooring can be installed directly on top of Floor Foam. We recommend to use a carpet underlay prior to a carpet being installed.
