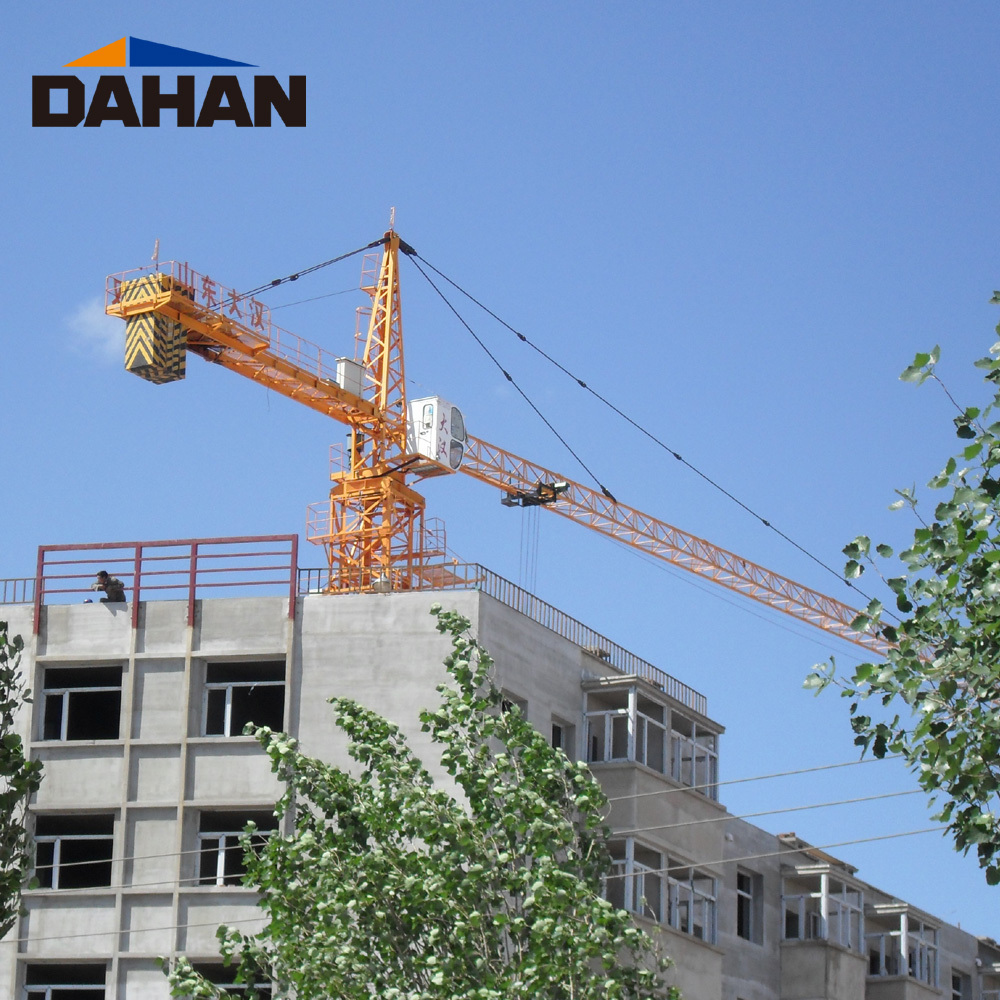

QTZ80(6010) DAHAN 6T Tower Crane Spare Parts For Sale

QTZ80(6010) DAHAN 6T Tower Crane Spare Parts For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $60000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Lifting Moment:: 800KN.m

Span:: 60M

Place of Origin:: Shandong, China

Brand Name:: DAHAN

Warranty:: 12 Months

Weight (KG):: 30000 kg

Mast Section Size:: 1.8*1.8*2.8m

Main Chord:: 135*135*12

Free Standing Height:: 45M

Max. Height:: 200m

Total Power:: 34.7kw

Type:: Topkit Tower Crane

Foundation:: Embedded Foundation Leg

Trolleying Speed:: 40m/min

Slewing Speed:: 0.6m/min

Hoisting Speed:: 0-80m/min

Certification:: CE ISO

Quick Details

Rated Loading Capacity:: 6T

Max. Lifting Height:: 180m

Application:: Construction

Rated Lifting Moment:: 800KN.m

Span:: 60M

Place of Origin:: Shandong, China

Brand Name:: DAHAN

Warranty:: 12 Months

Weight (KG):: 30000 kg

Mast Section Size:: 1.8*1.8*2.8m

Main Chord:: 135*135*12

Free Standing Height:: 45M

Max. Height:: 200m

Total Power:: 34.7kw

Type:: Topkit Tower Crane

Foundation:: Embedded Foundation Leg

Trolleying Speed:: 40m/min

Slewing Speed:: 0.6m/min

Hoisting Speed:: 0-80m/min

Certification:: CE ISO

QTZ80(6010) DAHAN 6T Tower Crane Spare Parts For Sale

>> PRODUCT PARAMETERD <<

DAHAN TECHNOLOGY CO., LTD

Product advantage:

The Steel Structure with Long Lifespan and High Safety The flat-top tower crane is designed without any pull rod so as to reduce the height of the tower top and meet the requirements on different work sites. Especially suitable for disassembling and assembling on restricted construction sites or during the multi-tower cross operation The height difference between tower bodies can be reduced to save much space and cost.

Parameters of tower crane QTZ80(6010) 6T
Name	Mechanism	Speed(m/min)		Capacity(t)	Rope Capacity(m)	Power(kw)
Hoisting	24JLD15	2 fall	10	3	360 >360 please contact us	24/24/5.4
			40	3
			80	1.5
		4 fall	5	6
			20	6
			40	3
	24LVF15	2 fall	0-40	3	400 >400 please contact us	24
			0-80	1.5
		4 fall	0-20	6
			0-40	3
Trolleying	BE3360	40/20				3.3/2.2
	BP4060X	0-40				4
Slewing	HR.100.195	0-0.6				3.7*2
	RVF4	0-0.6				4*2
Power	380V(10%)/50HZ

R(m)	Fall	R(Cmax/m)	Cmax(t)	15	20	25	30	35	40	45	50	55	60
60	4	14.3	6	6	4.07	3.11	2.49	2.04	1.71	1.46	1.25	1.09	0.95
60	2	26.1	3	3	3	3	2.54	2.1	1.76	1.51	1.3	1.14	1
55	4	16	6	6	4.66	3.59	2.88	2.38	2.01	1.72	1.54	1.3
55	2	29.4	3	3	3	3	2.93	2.43	2.06	1.77	1.49	1.35
50	4	16.8	6	6	4.92	3.8	3.05	2.52	2.13	1.83	1.59
50	2	30.8	3	3	3	3	3	2.58	2.28	1.88	1.64
45	4	17.1	6	6	5.04	3.89	3.13	2.59	2.19	1.88
45	2	31.4	3	3	3	3	3	2.64	2.24	1.93
40	4	17.1	6	6	5.04	3.89	3.13	2.59	2.19
40	2	31.4	3	3	3	3	3	2.64	2.24

>> PRODUCT DETAILS <<

DAHAN TECHNOLOGY CO., LTD

Hoisting Mechanism

Speed regulation mode: variable frequency motor speed regulation, The reducer adopts f610 type, and the improvement effect is obvious; Brake: the brake is Jiaozuo brand. Wheels are made of cast steel. Dynamic balance test. Reliable, safe and durable braking; Steel wire rope: long service life, high safety and low maintenance cost

Trolleying Mechanism

Variable frequency speed regulation, stable and reliable starting and braking Low maintenance rate gear reducer The operation efficiency is 10% higher than that of ordinary trolleybus.

Hook

Increase the weight of the hook, effectively improve the rope lining effect during lifting; adopt new structure to prevent the hook pulley from falling off, completely solve the problem of rope falling off. A movable joint is added between the hook plate and the cross beam to facilitate the hook operation.

Trolley

A semi-circular protective ring is added to the lower part of the sports car pulley, which fundamentally solve the wire rope groove failure caused by high-speed lifting during the turning process.

Mast section

Overall processing after welding, high connection accuracy, more effortless disassembly; Each section is equipped with a rest platform, which is convenient for disassembling the pins, and the inclined aluminum alloy ladder makes climbing safer and labor-saving;

Electric Box

The electrical control system design uses the European advanced frequency conversion + PLC + heavy-duty plug-in electrical control box design system, which is simple, easy to install and disassemble improve work efficiency.

Cabin

Convenient installation, low operation cost and long service life of products

Telescopic

The frame, lifting cylinder and lifting beam have been assembled before leaving the factory, which can be directly hoisted on site

Hydraulic Jacking Mechanism

The mechanism and the jacking system have been refueled, the wire rope has been wound, and the tower crane is ready for use; saving on-site installation costs.

Safety protection device

The weight limiter and torque limiter adopt a tension ring structure. Lifting, slewing, and trolleying limiter adopts cast aluminum casing with long service life, and adopts products from Guiyang Electric Control Factory.

>> MORE ACCESSORIES <<

DAHAN TECHNOLOGY CO., LTD

>> PRO DUCTIOM PROCESS <<

DAHAN TECHNOLOGY CO., LTD

>> PRODUCT APPLICATION <<

DAHAN TECHNOLOGY CO., LTD

>> ABOUT US <<

DAHAN TECHNOLOGY CO., LTD

Dahan Technology Co., Ltd. is committed to the professional manufacturing of tower cranes and construction hoists. Our firm has manufactured and sold approximately 50 thousand sets of tower cranes and construction lifts. We have been exported to over 50 countries and regions. Our product portfolio comprises 4 main series and over 60 types of products, such as high-top tower cranes, flat-top tower cranes, luffing jib tower cranes and construction hoists. All products come with ISO, CE, and other certificates.
