Quick Details
-
Model Number:
-
CWX-15N
-
Brand Name:
-
TF
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
CE
-
Body material:
-
Brass,Plastic,SS316/304
-
Voltage:
-
DC3-6V 12V AC/DC9-24V AC220V
-
Working pressure:
-
Max1.0MPa
-
Size:
-
DN8-DN32
-
Connection:
-
BSP.NPT
-
Medium:
-
Liquids
-
Standard:
-
NPT BSP
Quick Details
-
Port Size:
-
1/4inch to 1inch DN8-DN32
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-15N
-
Brand Name:
-
TF
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
CE
-
Body material:
-
Brass,Plastic,SS316/304
-
Voltage:
-
DC3-6V 12V AC/DC9-24V AC220V
-
Working pressure:
-
Max1.0MPa
-
Size:
-
DN8-DN32
-
Connection:
-
BSP.NPT
-
Medium:
-
Liquids
-
Standard:
-
NPT BSP

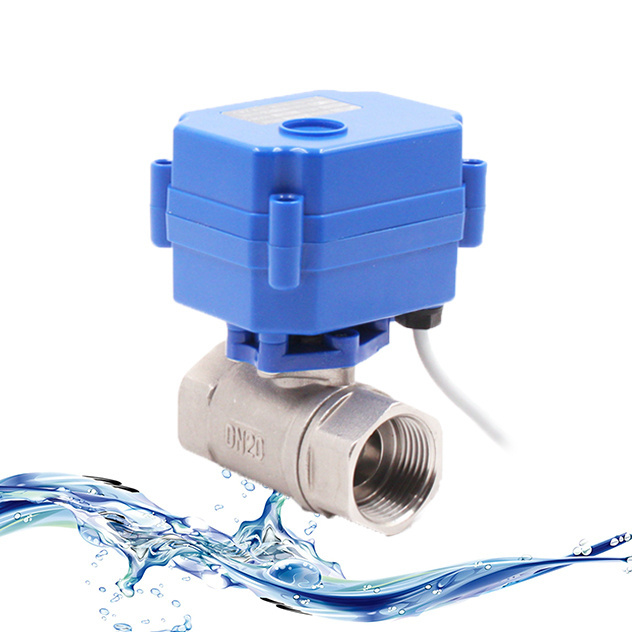

Electrical ADC Motor Control Ball Valve Wireless Remote Operated Automatic Drain Shut off Valve Parts
1, Metal gearbox and POM gear design, low noise, perform reliably .
2, Long service life: more than 100000 circles .
3,E lectric limit and machinery limit design, located accurately, avoid gear run continuously.
4, Mufti-angle assembling, easy to install .
5, Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system .
2.Auto control system, industrial mini auto control equipment .
3.Water saving equipment, drinking water equipment .
4.Air-conditioning fan coin(HVAC) .
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-15Q |
DC3-6V
DC12V AC/DC9-24V AC220V AC85-265V |
Max100mA (CR04 except Max150mA) |
Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
|
Brass
|
Connection | Sizes | d | H | L |
|
Both female thread Full-port |
DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertical Three-way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
