Quick Details
-
Mounting Type:
-
Wall or Ceiling mounting
-
Description:
-
outdoor pir motion sensor, pir motion sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
GST12
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Theory:
-
pir motion sensor
-
Output:
-
Relay,dry contact or other, Switching Transducer
-
Power Source:
-
110-130V/220-240V/AC
-
HS Code:
-
8531901000
-
Time-Dleay:
-
10sec±3sec to 7min±2min(adjustable)
-
Rate load:
-
1200W/300W(220V -240V/AC) 200W/800W(110V-130V/AC)
-
Detection Range:
-
180°
-
Detection Distance:
-
MAX.12m(<24℃)
-
Working temperature:
-
-20~+40℃
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Color:
-
White
Quick Details
-
Use:
-
pir motion sensor
-
Series:
-
outdoor human motion sensor
-
Features:
-
outdoor human motion sensor
-
Mounting Type:
-
Wall or Ceiling mounting
-
Description:
-
outdoor pir motion sensor, pir motion sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
GST12
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Theory:
-
pir motion sensor
-
Output:
-
Relay,dry contact or other, Switching Transducer
-
Power Source:
-
110-130V/220-240V/AC
-
HS Code:
-
8531901000
-
Time-Dleay:
-
10sec±3sec to 7min±2min(adjustable)
-
Rate load:
-
1200W/300W(220V -240V/AC) 200W/800W(110V-130V/AC)
-
Detection Range:
-
180°
-
Detection Distance:
-
MAX.12m(<24℃)
-
Working temperature:
-
-20~+40℃
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Color:
-
White

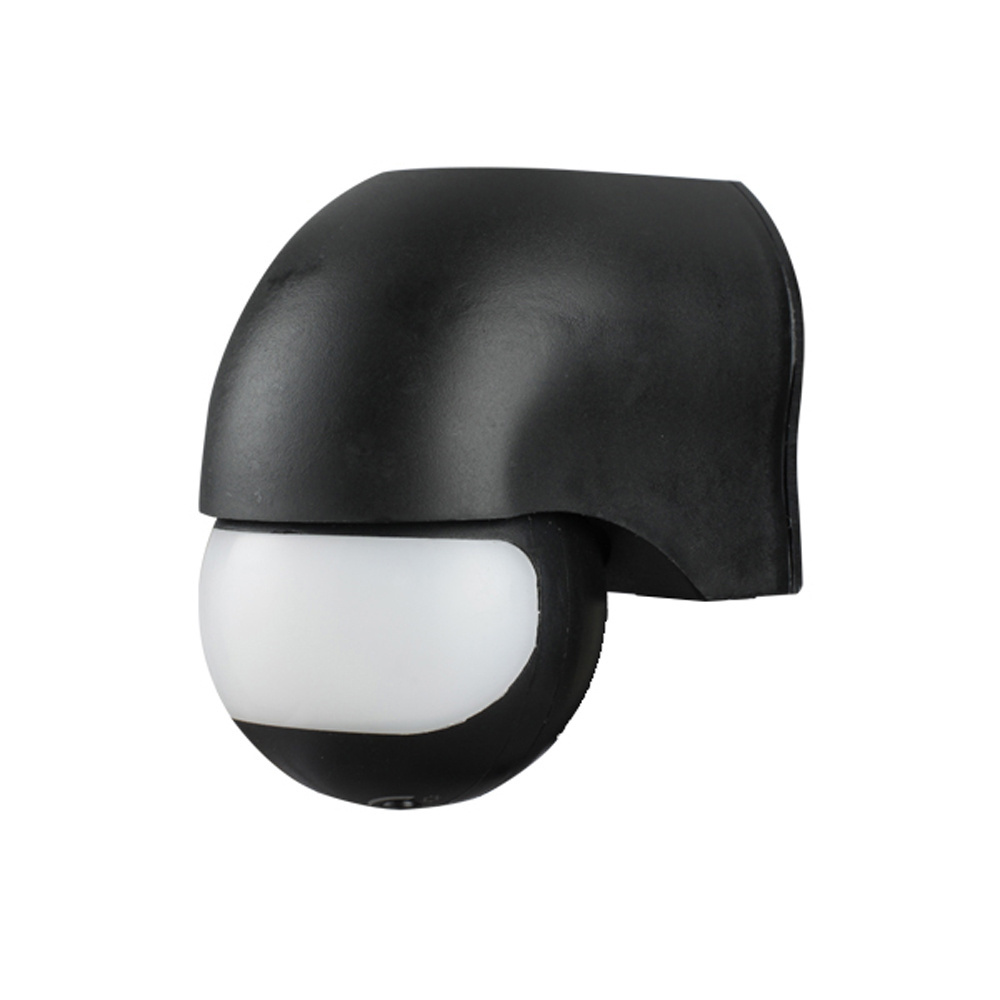

Welcome to use GST12 active infrared sensor !
This product adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, energy-saving, practical functions; It has wide detection range made up of up and down, left and right service field; It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is wide; It has the function of power indication and detection indication.
Installation for
active infrared sensor
(as following drawing.):
Shut off power.
Loosen the screw on the bottom lid, open the wiring terminal, pass the wire of power and load through the bottom lid.
Fix the bottom lid with inflated screw on the selected position.
Connect the power and load wire into connection-wire column according to the connecting figure.
Put the sensor on the bottom lid, twist the screw tightly then electrify it and test it.
Function for
active infrared sensor
:
Detection field: The wide detection range is made up of up and down, left and right, the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
Identify day and night automatically: The ambient light of ST12 could be adjusted according to your desire: when turn to SUN (max), it will work day and night, when turn it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to testing way.
Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
Time-delay is adjustable: It can be set according to your desire, the minimum is 10sec±3sec, and the maximum is 8min±2min.
Trade term:
EXW, FOB, CIF
MOQ : 500 pcs for active infrared sensor
Sample available:Yes
Port:China Ningbo & Shanghai for active infrared sensor
Payment: T/T, Western Union, L/C, Paypal
Shipment: ocean or air transportation, international express for active infrared sensor
Payment condition: 30% before production, 70% before delivery
Packing: carton box for active infrared sensor
Packing measurement:46.5*38.5*21cm
Quantity :50PCS each carton for active infrared sensor
G.W : 10 KG
N.W:8 KG
