Name: water control valve
Brand: Shengfeng
Original: China
control valve body
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SFVA
-
valve body color:
-
blue,red,black,gray,green
-
patent number:
-
200630200428.7
-
Normal pressure:
-
1.0Mpa,1.6Mpa
-
Body test pressure:
-
1.5Mpa,2.4Mpa
-
Sealing test pressure:
-
1.1Mpa,1.76Mpa
-
Applicable temperature:
-
0~80 degree
-
Epoxy thickness:
-
300 um
-
Flow direction:
-
one way
-
control valve type:
-
Diaphragm type
-
body material:
-
GGG50
Quick Details
-
Port Size:
-
DN50-DN600
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
SF100X-16
-
Brand Name:
-
SFVA
-
valve body color:
-
blue,red,black,gray,green
-
patent number:
-
200630200428.7
-
Normal pressure:
-
1.0Mpa,1.6Mpa
-
Body test pressure:
-
1.5Mpa,2.4Mpa
-
Sealing test pressure:
-
1.1Mpa,1.76Mpa
-
Applicable temperature:
-
0~80 degree
-
Epoxy thickness:
-
300 um
-
Flow direction:
-
one way
-
control valve type:
-
Diaphragm type
-
body material:
-
GGG50
Product Description
Product Application

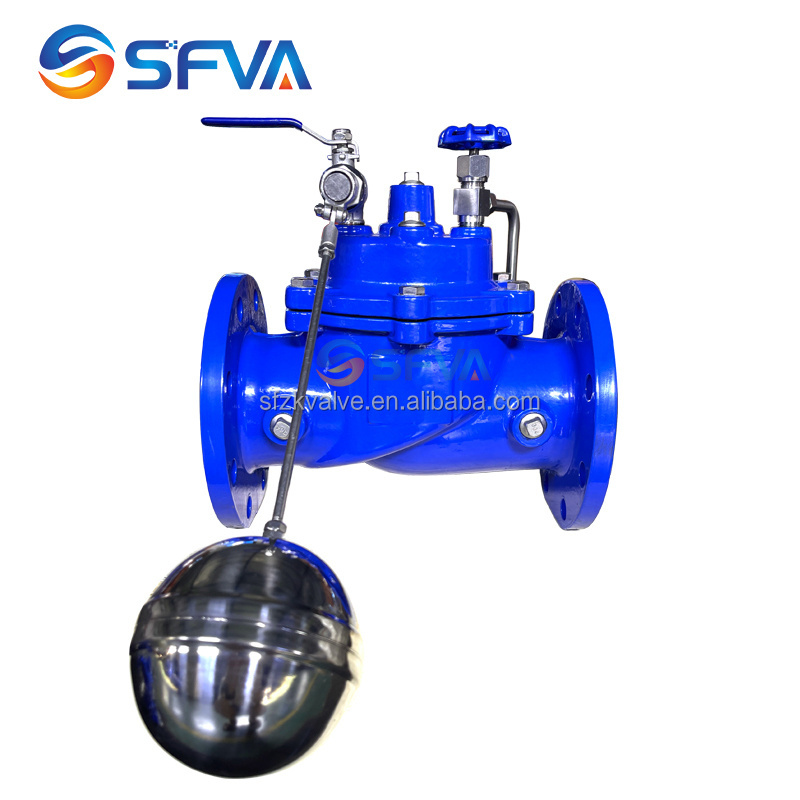

100X remote control float valve consist of the main valve, needle valve, ball valve, floating ball valve,able to control the liquid level of water tower or pool.
The body uses full passage streamline design,of a heavy flow,a good sealing effect,a high liquid level control accuracy,simply maintained,flexible and durable,the water level is not subject to the water pressure disturbance and tightly closed without water leak.
Materials of major parts:
|
Name of parts
|
Material of parts
|
Name of parts
|
Material of parts
|
|
Body & cap
|
Ductile iron
|
Spring
|
Stainless steel
|
|
Valve seat & valve disc
|
Brass
|
Surface
|
EPOXY
|
|
Valve stem
|
Stainless steel
|
Valve sealing
|
EPDM/NBR
|
Main Features
1. this series of products are patented shape.
2. smooth appearance, convenient modification.
3. can device isolation board, achieve double room control, so that the valve is more operational balance.
4. with a wide body, streamline and other flow area design, the valve resistance is small.
5. in the pipeline neutral horizontal installation can be, the performance of the same.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the valve, training how to use the valve.
* Engineers available to service valve overseas.
Detailed Images
Valve Parts
Main Features
Name: water control valve
Brand: Shengfeng
Original: China
control valve body
Main Features
Name: water control valve
Brand: Shengfeng
Original: China
control valve body
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
110 (L) * 110(W) * 125(D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Export all use plywood wooden case!Bubble wrap for evey valve!
|
|
|
Packaging
|
|
|
|
Size
|
110 (L) * 110(W) * 125(D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Export all use plywood wooden case!If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Related Products
How to reach our factory:
by plane:
From Beijing airport:240kms,3 hours by driving.
From Tianjin airport:150kms, 2 hours by driving.
By Train:
From beijing South railway station:224Kms, 1 hours
From Shanghai Hongqiao railway station:1167Kms, 4.5 hours
By Car:
From CangzhouXi railway station:45kms, 40 minutes.
Our address:Botou Industry Park,Cangzhou City,Hebei Province ,China
contact person to pick you up from air port or anyplace in China,please call alan:+8615831888892
Botou Shengfeng auto-valve Co,. LTD is a specialized manufacture enterprise that focuses producing, installing, sale and service. The main products include Gate Valve,Waterpower Control Valve,Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Check Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve and their series products. Moreover, we can produce control valve and pressure reducing valve that are different materials, pressures, specifications, actuation ways. Our products include more than 50 serials and 1200 species, and the annual production output is more than 8.000 metric tons. Shengfeng valves have been selling well all over China and exporting to Europe, America and other countries and areas, which are used widely in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. Our products are quite creative, good quality, cheap price and excellent .
