Quick Details
-
Rated Power:
-
37KW
-
Weight (KG):
-
4400 KG
-
After-sales Service Provided:
-
Engineers
-
Name:
-

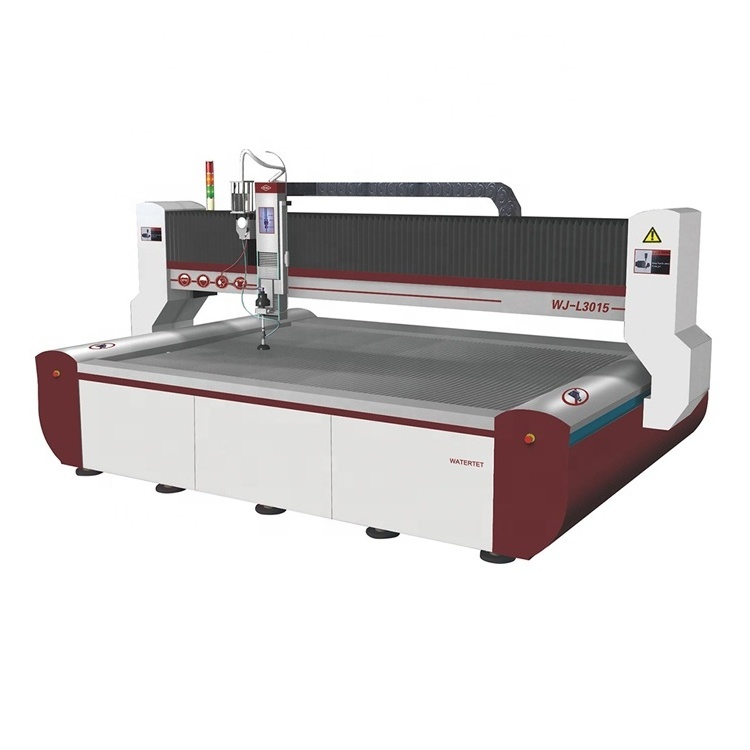

CNC Water Jet Cutting Machine
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Water Cutting
-
Cutting material:
-
Stone.etc
-
Cutting mode:
-
Water Cold Cutting
-
Function:
-
High Pressure Water Cutting
-
Control system:
-
CNC Controller
-
Item:
-
Water Jet Cutting Machine-001
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TOPRESS
-
Voltage:
-
380V/220V
-
Rated Power:
-
37KW
-
Weight (KG):
-
4400 KG
-
After-sales Service Provided:
-
Engineers
-
Name:
-
CNC Water Jet Cutting Machine
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Water Cutting
-
Cutting material:
-
Stone.etc
-
Cutting mode:
-
Water Cold Cutting
-
Function:
-
High Pressure Water Cutting
-
Control system:
-
CNC Controller
-
Item:
-
Water Jet Cutting Machine-001
-
Certification:
-
CE
Water cutting is also a cold cutting, dust-free, smokeless, non-toxic and odorless work, cutting speed, high precision, small and smooth incision. The equipment has been widely used in metal, ceramic, stone, automobile, aviation and other fields.
discount cnc water cutter waterjet cutting machine
Waterjet cutting platform Parameter
| Maximum cutting range(mm) | 3000x2000 | 2500x1500 | 2000x1500 | 1500x1500 | 1500x1000 | 800*800 |
| The turret trip(mm) | 0-200 | |||||
| Driveing speed /servo motor(mm/min) | 0-10000 | |||||
| Cutting precision(mm) | 0.2 | |||||
| Control precision(mm) | 0.05 | |||||
| Worktable motor | Fuji | |||||
| Air compressor pressure(mpa) | 0.6-0.8 | |||||
| Abrasive | Garnet | |||||
| Grit size | 600-100 | |||||
| Software | CNC | |||||
Characteristics of Px waterjet cutting platform
The cantilever structure occupies a small area and is easy to use.
The structure is firm and stable.
The cutting platform uses precise liner guide rails and rolling screws.
The servo control system is adopted to make the operation more stable.
Centralized automatic lubrication system, humanized design, automatic equipment maintenance.
Pump
Simple, efficient, energy-saving.
The high pressure system is equipped with high pressure safety valve,which helps to achieve the
infinitely adjustment in high and low pressure condition and the overload protection. It is also equipped
with frequency changer which makes the perforating in the low pressure condition and cutting in the
high pressure condition possible .
Automatic cooling system, which is no need extra energy, can keep the machine working in 24 hours .
The temperature controlling system helps to check the operation condition of the machine.
Hydraulic oil pump drive
Delivery pressure: 60. OOOpsi
Cooling system:automatic circulating cooling system.
Hydraulic pump:It uses the international high-end variable displacement plunger pump.
Water filter:three-layer filtering system
.
Safety protection system:protection system of oil temperature, water pressure and oil pressure
Booster pump:It has the 60.000psi supercharger, powerful accumulator, high pressure water switch
and pipeline system.
This is our standard type,we can provide so many types.
Waterjet cutting machine software
International advanced level water jet cutting dedicated software.
Processing program synchronizes with graphics simulation which can help to avoid processing error.
Automatically display cutting length of each part to make calculation convenient for customers.
It can set X,Yaxis stroke soft limit to prevent the cutting head from going beyond the limit.
Combine with graph of AUTO CAD drawing software.
Automatically generate the NC programming.
Automatic sand feeding system
Labor saving
It can control the amount of sand
It can store 150 kilograms sand for once
It can serve for two machines simultaneously.
Roll-over worktable
The roll-over table can turn over 85 degree angles.
It makes the material getting on and off the worktable more convenient and reliable.
Adopt high-power hydraulic station which can bear 600kg materials.
Customers can handle the operation directly on the worktable.
FLDW1325 water cutter application industry
Cutting material is not restricted (stainless steel, steel, copper, aluminum and other metal, glass, stone, glass, ceramics, plastics, composite materials, especially for thickness above 80 mm hard material cutting processing (such as steel, aluminum, copper and other metal materials and stone, etc.), as well as to the cutting surface quality and cutting speed has taught high requirements of the occasion.
