Quick Details
-
Brand Name:
-
BHF
-
Voltage:
-
Three phase 380V
-
Power:
-
5000
-
Dimension(L*W*H):
-
1600*2500*1700
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Auto:
-
Automatic
-
Place of origin:
-
Guangzhou, China
-
Brand:
-
BHF
-
Color:
-
Double color
-
Function:
-
Drilling and tufting
Quick Details
-
Application:
-
Drilling and tufting
-
Production Capacity:
-
100 pieces/hour
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BHF
-
Voltage:
-
Three phase 380V
-
Power:
-
5000
-
Dimension(L*W*H):
-
1600*2500*1700
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Auto:
-
Automatic
-
Place of origin:
-
Guangzhou, China
-
Brand:
-
BHF
-
Color:
-
Double color
-
Function:
-
Drilling and tufting

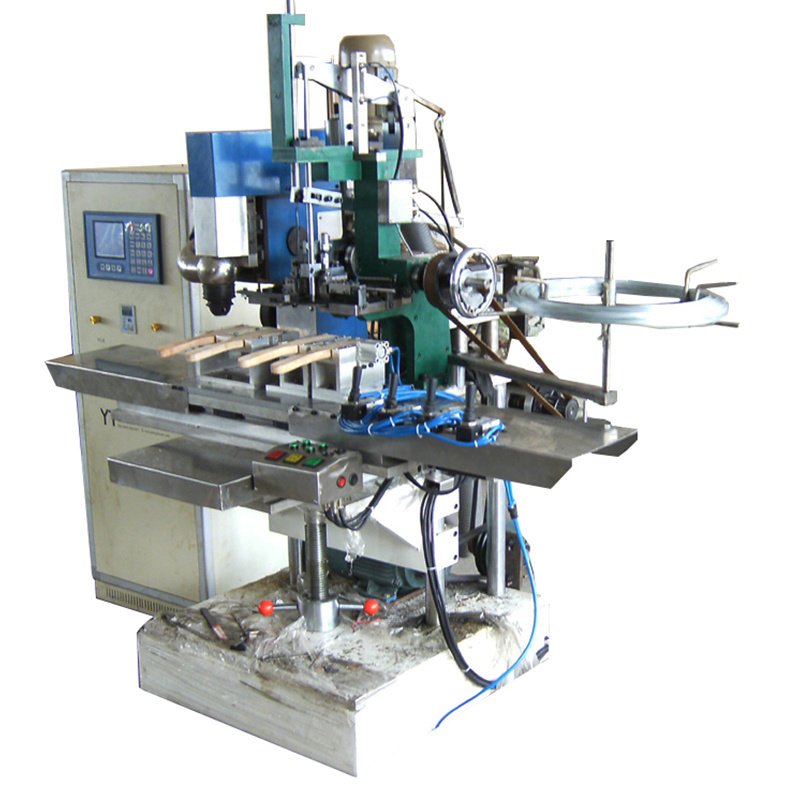

5 axis drilling & tufting machine, specially for steel wire brush.
Brush making machine have been sold to more than 20 countries in the world.
Product Details
Place of Origin:Guangzhou,China
Brand Name:BHF
Model Number:BHF-505
Product Name:Steel wire brush machine / Brush making machine
Condition:New
Payment and Shipping
MOQ:1 Set
Price:$2500.00-$25000.00
Shipping:Sea Freight
Port:Guangzhou,China
Packaging Detail:Wooden Box
Lead Time:Around 30 Days
Technical Data
Material of Filament:Steel wire
Diameter of drilling holes: 3.0 to 6.0mm
Depth of drilling holes: 0 to12mm
Production speed: 540-600 holes/minute
Tufting mode: Staple mode
Length of bristle (unfolded): 10 to 240mm
X-Y-H itinerary: 620mm-200mm-180mm
Z itinerary: ±20 °or 360 °
S itnerary: ±20°
Bristle container: Double color
Maximum store holes: 8,000
Holes distribution can be freely designed
Size of machine(l*w*h,mm): 1600*2500*1700
Net weight: 1000kg
Warranty:3 Year
Highlights
1)Steel wire brush making machine,which is used for making steel wire brush.
2)Fully automatic,no need to stop the machine even changing the virgin blocks.
3)For using transducer and brake motor, the motor speed can be adjusted optionally
Suitable for plastic, wooden, coppery, aluminous and ferric brush handles
Easy to change design, only need to change gripper.
Brush making machine have been sold to more than 20 countries in the world.
Product Details
Place of Origin:Guangzhou,China
Brand Name:BHF
Model Number:BHF-505
Product Name:Steel wire brush machine / Brush making machine
Condition:New
Payment and Shipping
MOQ:1 Set
Price:$2500.00-$25000.00
Shipping:Sea Freight
Port:Guangzhou,China
Packaging Detail:Wooden Box
Lead Time:Around 30 Days
Technical Data
Material of Filament:Steel wire
Diameter of drilling holes: 3.0 to 6.0mm
Depth of drilling holes: 0 to12mm
Production speed: 540-600 holes/minute
Tufting mode: Staple mode
Length of bristle (unfolded): 10 to 240mm
X-Y-H itinerary: 620mm-200mm-180mm
Z itinerary: ±20 °or 360 °
S itnerary: ±20°
Bristle container: Double color
Maximum store holes: 8,000
Holes distribution can be freely designed
Size of machine(l*w*h,mm): 1600*2500*1700
Net weight: 1000kg
Warranty:3 Year
Highlights
1)Steel wire brush making machine,which is used for making steel wire brush.
2)Fully automatic,no need to stop the machine even changing the virgin blocks.
3)For using transducer and brake motor, the motor speed can be adjusted optionally
Suitable for plastic, wooden, coppery, aluminous and ferric brush handles
Easy to change design, only need to change gripper.
Product Description
Specification
|
item
|
value
|
|
Application
|
Drilling and tufting
|
|
Condition
|
New
|
|
Production Capacity
|
100 pieces/hour
|
|
Automatic Grade
|
Automatic
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Engine, Motor
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
BHF
|
|
Voltage
|
Three phase 380V
|
|
Power
|
5000
|
|
Dimension(L*W*H)
|
1600*2500*1700
|
|
Weight
|
1000
|
|
Warranty
|
3 YEARS
|
|
Applicable Industries
|
Manufacturing Plant
|
|
Showroom Location
|
None
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Auto
|
Automatic
|
|
Place of origin
|
Guangzhou, China
|
|
Brand
|
BHF
|
|
Color
|
Double color
|
|
Function
|
Drilling and tufting
|
Payment&Shipping
MOQ:1 Set
Price:$2500-$25000
Price Item:CIF,CNF,DDP,EXW,FOB
Payment Terms:L/C,D/A,D/P,T/T,WesternUnion,MoneyGram
Shipping Item:Ocean Shipping
Port:Guangzhou,China
Packaging Detail:Wooden Box
Lead Time:Around 30 Days
