Quick Details
-
Brand Name:
-
BEILIN
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2550X1600X3350 mm
-
Weight (T):
-
2.5 T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
Other
-
Max Die Set Height:
-
510mm
-
Slide Stroke:
-
500 mm
-
Slider descending speed:
-
40mm
-
Worktable size:
-
700mm*900mm
-
Lartngeal deep:
-
250mm
-
Pressing:
-
20-25mm/s
-
Return:
-
80 mm/s
-
keywords:
-
Y41 high quality C frame hydraulic press 30 ton
-
Weight:
-
7650 Kg
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BEILIN
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2550X1600X3350 mm
-
Weight (T):
-
2.5 T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
Other
-
Max Die Set Height:
-
510mm
-
Slide Stroke:
-
500 mm
-
Slider descending speed:
-
40mm
-
Worktable size:
-
700mm*900mm
-
Lartngeal deep:
-
250mm
-
Pressing:
-
20-25mm/s
-
Return:
-
80 mm/s
-
keywords:
-
Y41 high quality C frame hydraulic press 30 ton
-
Weight:
-
7650 Kg
Products Description

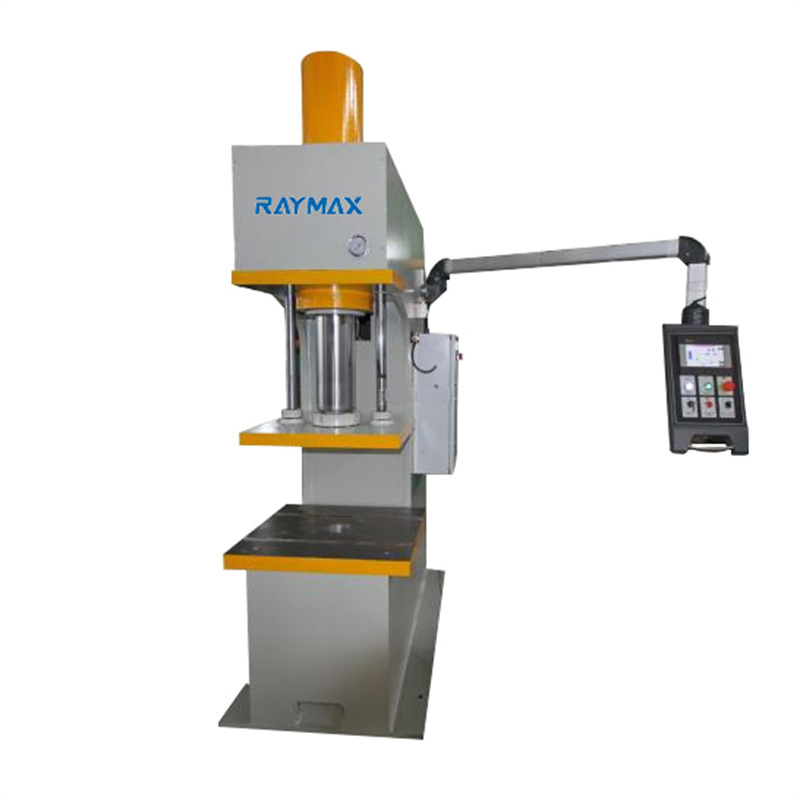

1.Y41 Series C-Type Hydraulic Press is one of the new generation of plate process machine. The press is for cutting, punching, blanking, bending and light stretching work.
2. Totally European design,streamlined looking,Steel-welded frame, Wide body frame eliminating vibration for improved ide life and machine,High rigidity and less deformation Compact.
3. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Thick plates and large columns provide you with the stable platform you need for your demanding application.
4. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts and mechanism.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service
6. The machine by the European Union CE certification and ISO quality system certification.
* It's suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
* Hydraulic control cartridge valve integrated system is reliability, long-life, small hydraulic impact, reducing connecting pipe with the leak
* Independent electrical control system, reliable, easy maintenance.
* Fully enclosed drive, easily accessible for maintenance, exposed over hanging parts, slide and bolster tables with T-slots.
* Protective fence and the safety interlock ensure the operation safety. Movable single-hand pedal switch makes it easy to operate.
* Working pressure can be customized from 5T to 500T according to client's requirements
* Hydraulic control cartridge valve integrated system is reliability, long-life, small hydraulic impact, reducing connecting pipe with the leak
* Independent electrical control system, reliable, easy maintenance.
* Fully enclosed drive, easily accessible for maintenance, exposed over hanging parts, slide and bolster tables with T-slots.
* Protective fence and the safety interlock ensure the operation safety. Movable single-hand pedal switch makes it easy to operate.
* Working pressure can be customized from 5T to 500T according to client's requirements
Display
Product Parameters
|
Specification
|
|
Unit
|
Y41-40
|
Y41-63
|
Y41-100
|
Y41-160
|
Y41-200
|
Y41-250
|
Y41-315
|
|
|
Nominal force
|
|
KN
|
400
|
630
|
1000
|
1600
|
2000
|
2500
|
3150
|
|
|
Throat depth
|
|
mm
|
320
|
320
|
340
|
325
|
350
|
400
|
400
|
|
|
Max height
|
|
mm
|
700
|
700
|
900
|
1000
|
1000
|
1000
|
1100
|
|
|
Slide stroke
|
|
mm
|
500
|
500
|
500
|
500
|
600
|
600
|
600
|
|
|
Table area |
L-R
|
mm
|
580
|
580
|
750
|
750
|
800
|
850
|
900
|
|
|
|
F-B
|
mm
|
560
|
560
|
630
|
630
|
650
|
700
|
750
|
|
|
Speed of slide |
Descent
|
mm/s
|
48
|
38
|
38
|
20
|
25
|
60
|
65
|
|
|
|
Pressing
|
mm/s
|
12
|
10
|
10
|
8
|
4
|
3.7
|
4
|
|
|
|
Return
|
mm/s
|
135
|
95
|
118
|
100
|
65
|
80
|
65
|
|
|
Overall dimension |
L-R
|
mm
|
900
|
930
|
1200
|
1200
|
1300
|
1200
|
1500
|
|
|
|
F-B
|
mm
|
1500
|
1600
|
1600
|
1700
|
1900
|
2000
|
2100
|
|
|
|
H
|
mm
|
2400
|
2600
|
2900
|
3100
|
3400
|
3500
|
3750
|
|
|
Table height above floor
|
|
mm
|
650
|
650
|
700
|
650
|
700
|
700
|
600
|
|
|
Main motor power
|
|
KW
|
5.5
|
7.5
|
11
|
15
|
15
|
15
|
22
|
|
