Quick Details
-
Panel Material:
-
Bakelite
-
Color:
-
White
-
Certificate:
-
CE RoHS
-
Product name:
-
Gang Switch Socket
-
Keyword:
-
2 gang 1 way wall switch
-
Market:
-
Euro Mid-east Africa Asia
-
Guarantee:
-
10 years
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Package:
-
10pcs/color Box. 100pcs/ctn
-
Function:
-
Control Light
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V-250V
-
Place of Origin:
-
Shanghai, China
-
Panel Material:
-
Bakelite
-
Color:
-
White
-
Certificate:
-
CE RoHS
-
Product name:
-
Gang Switch Socket
-
Keyword:
-
2 gang 1 way wall switch
-
Market:
-
Euro Mid-east Africa Asia
-
Guarantee:
-
10 years
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Package:
-
10pcs/color Box. 100pcs/ctn
-
Function:
-
Control Light

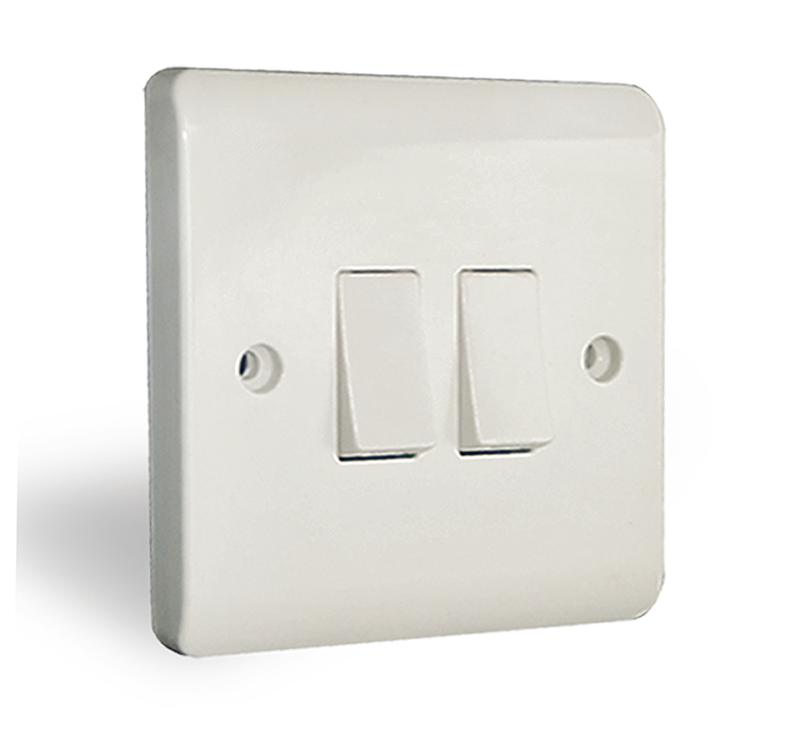

CE CB 10A 2 Gang 1 Way Electric Light Switch
The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
|
Outline size: |
86x86mm |
| Installation size: | 60 |
| Material: | Bakelite |
| Copper: | QSn5.6-0.1 H62 Hpb59 |
Switch Specification
| Lifetime | ≥40000 |
| Heat-resistant | 100 • C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision |
≤0.05M Ω
|
Socket Specification
| Lifetime |
| Heat-resistant |
| Insulation Resistance |
| Damp Resistance |
| Temperature Raise |
| Earthing Provision |
| Electric Strength |
