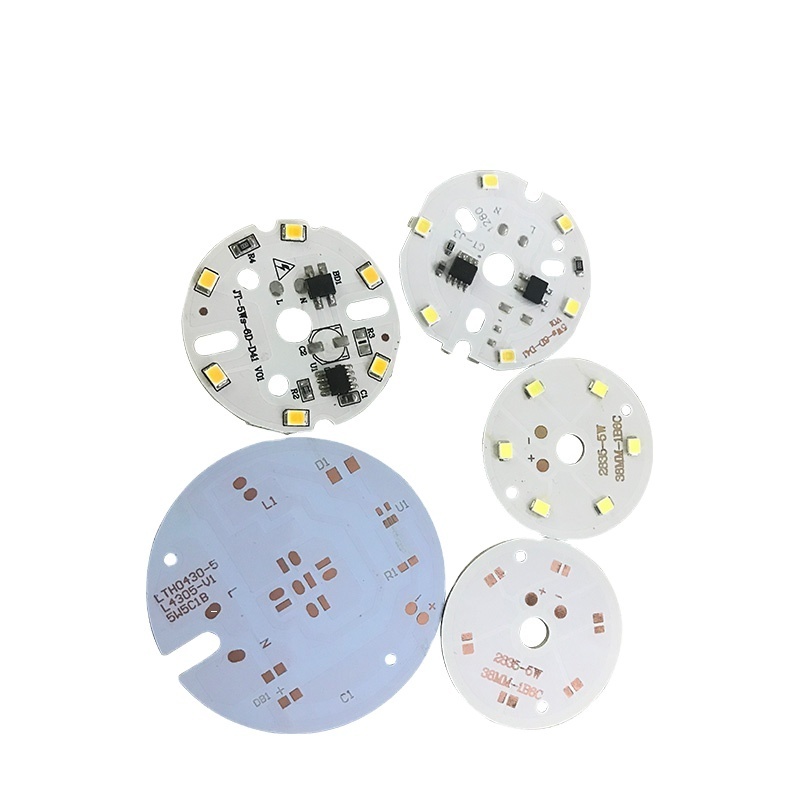

OEM One-Stop LED PCB 3w 5w 7w 9w 12w 15w DOB Driverless Aluminum Printed Circuit Board
Product Description
| PCB Capactity | |
| Base Material | FR-4, 22F, CEM-3, CEM-1, aluminum, HB, 94V0 |
| Layers | 1-22 layers |
| Max Panel | 1550mm*800mm |
| Copper Thickness | 0.5oz, 1oz, 2oz, 3oz,4oz |
| Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
| Board Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm |
| Board Thickness | 0.4mm - 4.0mm |
| Thickness Tolerance | +/-10% |
| Aluminum Machining | Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
| Min Hole | 0.2 mm |
| Max Working Voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
| Min Track Width | 0.2mm (8mil) |
| Min Track Gap | 0.2mm (8mil) |
| Min SMD Pad Pitch | 0.2mm (8mil) |
| Surface Finishing | HASL lead free, Immersion Gold, Immersion Silver |
| Solder Mask Color | Green, Blue etc |
| Legend Color | Black, White etc |
| E-test | Yes |
| Certificate | UL / CUL / ROHS / ISO9001 |
| PCB Assembly Capacity | |
| Minimum IC Pitch | 0.2mm |
| Minimum chip size | 0201(0.2x0.1)/0603(0.6x0.3mm) |
| Maximum BGA size | 74x74mm |
| BGA ball pitch | 1.00mm(minimum), 3.00mm(maximum) |
| BGA ball diameter | 0.40mm(minimum), 1.00mm(maximum) |
| QFP lead pitch | 0.38mm(minimum), 2.54mm(maximum) |
| Volume |
One piece to low volume production quantities
Low cost first article builds Schedule deliveries |
| Assembly type |
Surface mount (SMT) assembly
DIP assembly Mixed (surface mount and through hole) technology Single or double sided placement Cable assembly |
| Parts procurements |
Turnkey(we supply the parts)
Consigned(you supply the parts) You supply some parts, we do the rest |
| Solder type |
Leaded
Lead-free / ROHS compliant |
| Other capabilities |
Repair / rework services
Mechanical assembly Box build Mold and Plastic injection |
