Quick Details
-
Brand Name:
-
SNSC
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2310*1150*2150
-
Weight (KG):
-
2000 kg
-
Forklift Name:
-
1.5 ton-5 ton 4 wheel Electric Forklift Truck with Lifting Height 6 m
-
Type:
-
Powered Pallet Truck
-
Controller:
-
USA CURTIS Controller
-
Mast type:
-
2-Stage/3-Stage
-
Tire:
-
Air tires or solid tires
-
Operator Type:
-
Driver
-
Control Type:
-
50%AC/100%AC
-
Mast:
-
Duplex/ Triplex full free mast
-
Color:
-
Red Yellow Green
-
Attachments:
-
side shifter/ paper roll clamp/block clamp
-
Marketing Type:
-
New Product 2022
Quick Details
-
Min. Lifting Height:
-
145mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SNSC
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2310*1150*2150
-
Weight (KG):
-
2000 kg
-
Forklift Name:
-
1.5 ton-5 ton 4 wheel Electric Forklift Truck with Lifting Height 6 m
-
Type:
-
Powered Pallet Truck
-
Controller:
-
USA CURTIS Controller
-
Mast type:
-
2-Stage/3-Stage
-
Tire:
-
Air tires or solid tires
-
Operator Type:
-
Driver
-
Control Type:
-
50%AC/100%AC
-
Mast:
-
Duplex/ Triplex full free mast
-
Color:
-
Red Yellow Green
-
Attachments:
-
side shifter/ paper roll clamp/block clamp
-
Marketing Type:
-
New Product 2022
Product Description

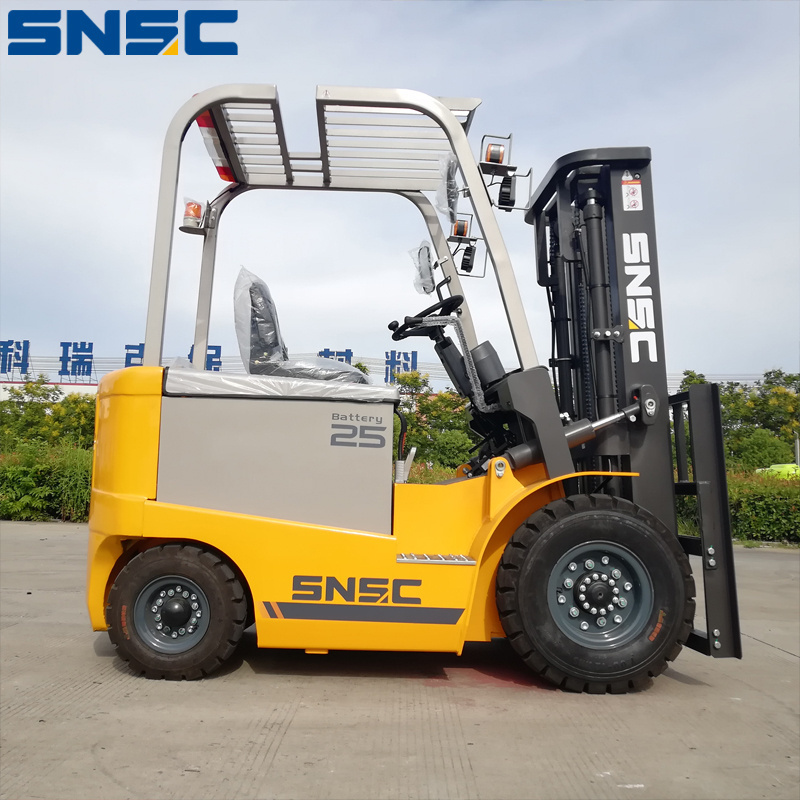

1.5Ton 2ton 2.5ton 3Ton 3.5Ton 5Ton warehouse electric forklift with optional lithium battery
|
Controller
|
USA Curtis Controller
|
|
Motors
|
AC lifting motor and AC driving motor
|
|
Mast
|
standard duplex 3m mast(3m-6m duplex or triplex mast are optional)
|
|
Tires
|
Air tires (solid tires, non-marking solid tires are optional)
|
|
Forks
|
standard 1070mm forks, fork extension are optional
|
|
Seat
|
Standard PU seat with safety belt, (fully suspension seat optional)
|
|
Options
|
side shifter, fork positioner, all kinds of clamps such as bale clamp, paper roll calmp, etc.
|
|
2ton 2.5ton warehouse electric forklift with optional lithium battery
|
|
|
|
|
|
|
||||||
|
Specifications
|
|
|
|
Unit
|
FB20Z
|
FB25Z
|
||||||
|
1
|
Features
|
Power type
|
|
-
|
Battery
|
Battery
|
||||||
|
2
|
|
Rated load
|
|
kg
|
2000
|
2500
|
||||||
|
3
|
|
Load center
|
|
mm
|
500
|
500
|
||||||
|
4
|
|
Lifting Height
|
|
mm
|
3000
|
3000
|
||||||
|
5
|
|
Free lifting height
|
|
mm
|
145
|
145
|
||||||
|
6
|
|
Fork size
|
LxWxT
|
mm
|
1070X122X40
|
1070X122X40
|
||||||
|
7
|
|
Mast Tilt Angle
|
Front/Read
|
°
|
6/12
|
6/12
|
||||||
|
8
|
|
Min. Turning Radius
|
|
mm
|
2090
|
2090
|
||||||
|
10
|
|
Min. Ground Clearance
|
Mast
|
mm
|
110
|
110
|
||||||
|
11
|
|
Overhear Guard Height
|
|
mm
|
2150
|
2150
|
||||||
|
12
|
|
Front Overhang
|
|
mm
|
470
|
470
|
||||||
|
14
|
Performances
|
Max. Travelling Speed
|
loaded
|
Km/h
|
13
|
13
|
||||||
|
15
|
|
Max. Lifting Speed
|
loaded/empty
|
mm/s
|
280/300
|
270/300
|
||||||
|
16
|
|
Max. Traction Force
|
loaded
|
KN
|
17
|
17
|
||||||
|
17
|
|
Max. Climbing Ability
|
|
°
|
15
|
15
|
||||||
|
18
|
Dimension
|
Overall Length
|
without fork
|
mm
|
2310
|
2310
|
||||||
|
19
|
|
Overall Width
|
|
mm
|
1150
|
1150
|
||||||
|
20
|
|
Mast Lowered Height
|
|
mm
|
1990
|
1990
|
||||||
|
21
|
|
Mast Extended Height
|
|
mm
|
4030
|
4030
|
||||||
|
22
|
Chassis
|
Tyre
|
Front
|
-
|
7.00-12-12PR
|
7.00-12-12PR
|
||||||
|
23
|
|
|
Rear
|
-
|
18x7-8-14PR
|
18x7-8-14PR
|
||||||
|
24
|
|
Wheel Base
|
|
mm
|
1450
|
1450
|
||||||
|
25
|
|
Wheel Thread
|
Front/Rear
|
mm
|
960/950
|
960/950
|
||||||
|
26
|
|
Weight(without load)
|
|
kg
|
3050
|
4050
|
||||||
|
27
|
Powertrain
|
Battery
|
|
V/Ah
|
48/630
|
48/630
|
||||||
|
28
|
|
Motor
|
driving
|
KW
|
11
|
11
|
||||||
|
29
|
|
|
lifting
|
KW
|
10/14
|
10/14
|
||||||
|
30
|
|
Controller
|
|
|
Curtis
|
Curtis
|
||||||
|
31
|
|
Controller type
|
|
|
50%/100%AC
|
50%/100% AC
|
||||||
|
32
|
|
Working pressure
|
|
Mpa
|
17.5
|
17.5
|
||||||
Detailed Images
Chinese best brand battery
Curtis LCD Display
USA Curtis controller
Grid type overhead guard
LED Warning Light
Light Protection Frame
Automobile type wheel
Triangle wider view back mirror
Combination rear lights
Optional Attachments
snsc fb25 electric forklift truck with solid tire
can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
Quality Control
SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
Tilt angle test
Wheel hug test
Brake Line Test
Climbing test
Lifting Test
Turning Test
Package and Delivery
electric drive wheel forklift FB25 forklift truck electric
Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.
Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
Successful Cases
SNSC --"Beyond your needs!"
SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.
2017.9, 4 units SNSC FD30 ISUZU diesel forklifts to Belgium
2019.5, 8pcs FD30 with ISUZU C240 engine, side shifter to Libya
2019.6, 5pcs SNSC FD30 diesel forklifts with triplex 5m mast to Egypt
2020.3, 8pcs FD35 with ISUZU C240 engine and Triplex 4.5m mast to France
2020. 6, 6pcs FB20H with fork positioner and side shifter, triplex 5m mast, to Canada
2020.8, 6pcs FD25H with ISUZU C240 Engine, triplex 4m mast to Argentina.
Our Factory
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
Material Preparation Workshop
Structure Workshop
Painting Workshop
Assembly Workshop
