Quick Details
-
Brand Name:
-
Ushineray
-
Model Number:
-
YXR-QC-250W-C
-
Color Temperature(CCT):
-
3000-6500K
-
Beam Angle(°):
-
8°/20°/40°/60° or 49*21°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-305V
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 55
-
Product Weight（kg）:
-
12.8
-
Product Name:
-
LED High Mast Flood Light
-
Product Keywords:
-
1000W stadium light
-
Power:
-
250W
-
Power Optional:
-
250W 500W 750W 1200W 1500W
-
Power Factor:
-
0.97
-
OEM/ODM:
-
Accepted
-
Dimming:
-
0-10V
-
Applications:
-

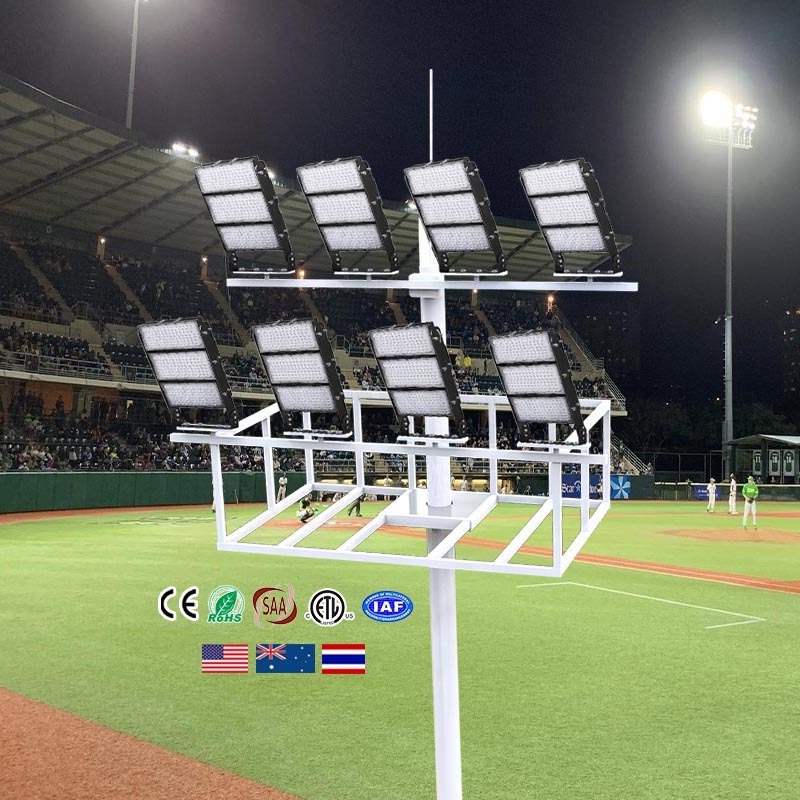

Stadium, Bollard
-
Material:
-
Aluminum Profile+PC Lens
Quick Details
-
Lamp Luminous Flux(lm):
-
80000
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
Ushineray
-
Model Number:
-
YXR-QC-250W-C
-
Color Temperature(CCT):
-
3000-6500K
-
Beam Angle(°):
-
8°/20°/40°/60° or 49*21°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-305V
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 55
-
Product Weight（kg）:
-
12.8
-
Product Name:
-
LED High Mast Flood Light
-
Product Keywords:
-
1000W stadium light
-
Power:
-
250W
-
Power Optional:
-
250W 500W 750W 1200W 1500W
-
Power Factor:
-
0.97
-
OEM/ODM:
-
Accepted
-
Dimming:
-
0-10V
-
Applications:
-
Stadium, Bollard
-
Material:
-
Aluminum Profile+PC Lens
Product Description
▶ High brightness Lumileds SMD5050 LED chips
▶ 1060 Pure aluminum fins riveting design, excellent heat dissipation.
▶ Light efficacy: 160lm/W
▶ Meanwell or other brands drivers optional, AC90V~305V.
▶ High transmittance more than 93%.
▶ Multiple angles available: 8°/20°/ 40°/60°; Bracket 180° adjustable.
▶ Whole lamp IP66 rating for outdoor environment.
▶ Working environment in -35 ℃ to 55 ℃.
▶ 50000h lifespan, 5 years warranty.
▶ 1060 Pure aluminum fins riveting design, excellent heat dissipation.
▶ Light efficacy: 160lm/W
▶ Meanwell or other brands drivers optional, AC90V~305V.
▶ High transmittance more than 93%.
▶ Multiple angles available: 8°/20°/ 40°/60°; Bracket 180° adjustable.
▶ Whole lamp IP66 rating for outdoor environment.
▶ Working environment in -35 ℃ to 55 ℃.
▶ 50000h lifespan, 5 years warranty.
Specification
|
Model C
YXR-QC-
|
250W-C
|
500W-C
|
750W-C
|
1000W-C
|
1200W-C
|
1500W-C
|
||||||
|
Power
|
250W
|
500W
|
750W
|
1000W
|
1200W
|
1500W
|
||||||
|
Lumens(lm)
|
40000±5%lm
|
80000±5%lm
|
120000±5%lm
|
160000±5%lm
|
200000±5%lm
|
240000±5%lm
|
||||||
|
Weight(kg)
|
6.6kg
|
12.8kg
|
18kg
|
22.8kg
|
26kg
|
30kg
|
||||||
|
Sizes(mm)
|
618*200*177
|
618*395*177
|
618*535*177
|
618*675*177
|
618*815*177
|
618*955*177
|
||||||
|
Beam Angle
|
8°/20°/40°/60°/asymmetrical 50°/asymmetrical 65°
|
|
|
|
|
|
||||||
|
Efficacy
|
160lm/w
|
|
|
|
|
|
||||||
|
CCT
|
2700-6500K
|
|
|
|
|
|
||||||
|
CRI
|
≥70Ra
|
|
|
|
|
|
||||||
|
LED
|
Lumileds/San‘an 5050
|
|
|
|
|
|
||||||
|
PF
|
>0.95
|
|
|
|
|
|
||||||
|
Input
Voltage
|
AC100-277V(Normal); AC900-305V(Iventronics)
|
|
|
|
|
|
||||||
|
Work Temp
|
-35~55℃
|
|
|
|
|
|
||||||
|
Humidity
|
15%~90% RH, no condensing
|
|
|
|
|
|
||||||
|
Finish
|
Sprayed with outdoor special powder
|
|
|
|
|
|
||||||
|
Life Span
|
≥50,000 Hrs (LM70 @ 35℃ )
|
|
|
|
|
|
||||||
|
IP Grade
|
IP66
|
|
|
|
|
|
||||||
|
IK Grade
|
IK08
|
|
|
|
|
|
||||||
|
Product Material
|
|
|
|
|
|
|
||||||
|
Power Wire
|
|
|
Body material
|
|
Electronic safety grade
|
|
||||||
|
Rubber cable(3*1mm²) L=0.5m
|
|
|
PC lens + Aluminum housing
|
|
Class I
|
|
||||||
Product Sizes
