Quick Details
-
Warranty:
-
Other
-
Brand Name:
-
SUFU
-
Model Number:
-
SF36-200MF
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1535*680*2.5mm
-
Cell Size(mm):
-
158 mono
-
Type of Connector:
-
PV-SC01
-
Cable type,Diameter and Length:
-
4mm,900mm
-
Color:
-
Balck or white
-
Application:
-
Boat,RV
-
Junction Box:
-
IP67 Rated
-
Keyword:
-
Flexible
-
Product name:
-
manufacturer wholesale price flexible solar panels etfe for truck
-
Surface material:
-
ETFE(or PET)
-
Cables:
-
UV resistant solar cable
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
All Black, Flexible
-
Panel Efficiency:
-
18%
-
Warranty:
-
Other
-
Brand Name:
-
SUFU
-
Model Number:
-
SF36-200MF
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1535*680*2.5mm
-
Cell Size(mm):
-
158 mono
-
Type of Connector:
-
PV-SC01
-
Cable type,Diameter and Length:
-
4mm,900mm
-
Color:
-
Balck or white
-
Application:
-
Boat,RV
-
Junction Box:
-
IP67 Rated
-
Keyword:
-
Flexible
-
Product name:
-
manufacturer wholesale price flexible solar panels etfe for truck
-
Surface material:
-
ETFE(or PET)
-
Cables:
-
UV resistant solar cable

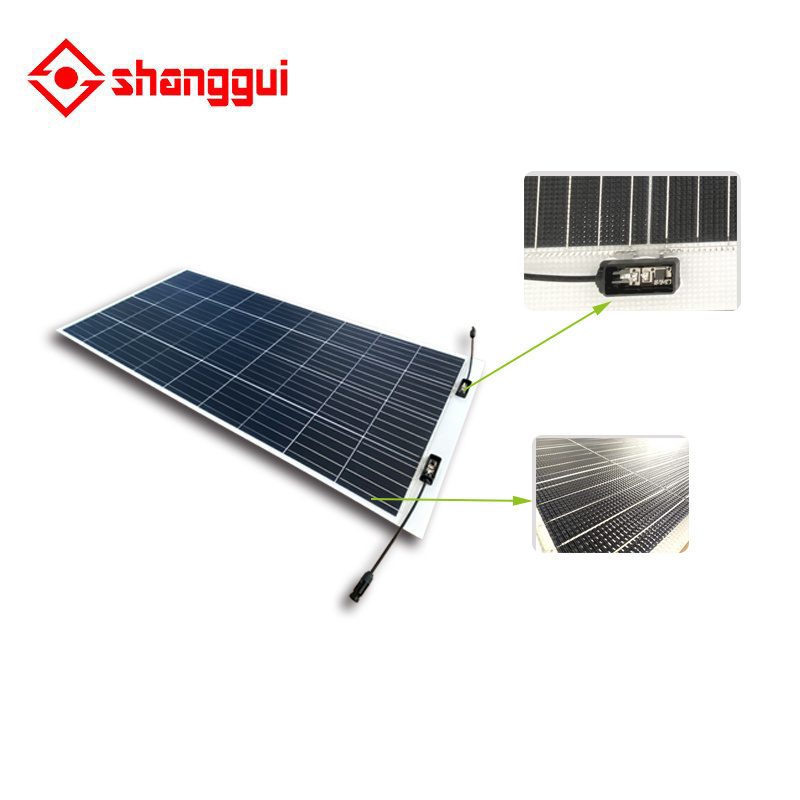

manufacturer wholesale price flexible solar panels etfe for truck
High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
Outstanding electrical performance under high temperature and low irradiance conditions.
36 Back-Contact polycrystalline Si solar cells (approx. 17.5%).
|
ELECTRICAL CHARACTERISTICS(STC*)
|
|
|
|
Model No.
|
SF36-200MF
|
|
|
Maximum Power at STC(Pmax)
|
200Wp
|
|
|
Maximum Power Voltage(Vmp)
|
18.3V
|
|
|
Maximum Power Current(Imp)
|
10.93A
|
|
|
Open Circuit Voltage(Voc)
|
21.96V
|
|
|
Short Circuit Current(Isc)
|
12.02A
|
|
|
Maximum System Voltage(V)
|
1000V DC(IEC)
|
|
|
Maximum Series Fuse Rating(A)
|
15A
|
|
|
Power Tolerance(%)
|
0～+3%
|
|
|
NOCT
|
45±2℃
|
|
|
Pmax Temperature Coefficient
|
-0.46%/℃
|
|
|
Voc Temperature Coefficient
|
-0.346%/℃
|
|
|
Isc Temperature Coefficient
|
0.065%/℃
|
|
|
Operating Temperature
|
-40~+85℃
|
|
`Install,vertify the details of environmental conditions,PV modules selection guide.
`Comprehensive technical training and support.
`Installation and acceptance of technical guidance service.
`Trouble diagnosis,trouble clearing technical service.
`Install PV modules,problem sloving,opration,maintenance and other training services.
`Provide a variety of specific spare parts as requested.
|
PACKING CONFIGURATION
|
|
|
|
Packing Quantity
|
80pcs/wooden
|
|
|
Quantity/pallet
|
1pc/carton 50pcs/pallet
|
|
|
Loading Capacity
|
1100pcs/40GP
|
|
|
By sea
|
Delivery from TIa jin or Shanghai seaport
|
|
|
||
|
By air
|
Departure from Beijing Pudong Airport
|
|
|
||
|
By express
|
By TNT/DHL
|
|
|
||
