It does a fantastic job on deburring and edge rounding of laser cutting, punching, stamping, and some flat machined parts.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
4.5
-
Weight (KG):
-
800
-
Product name:
-

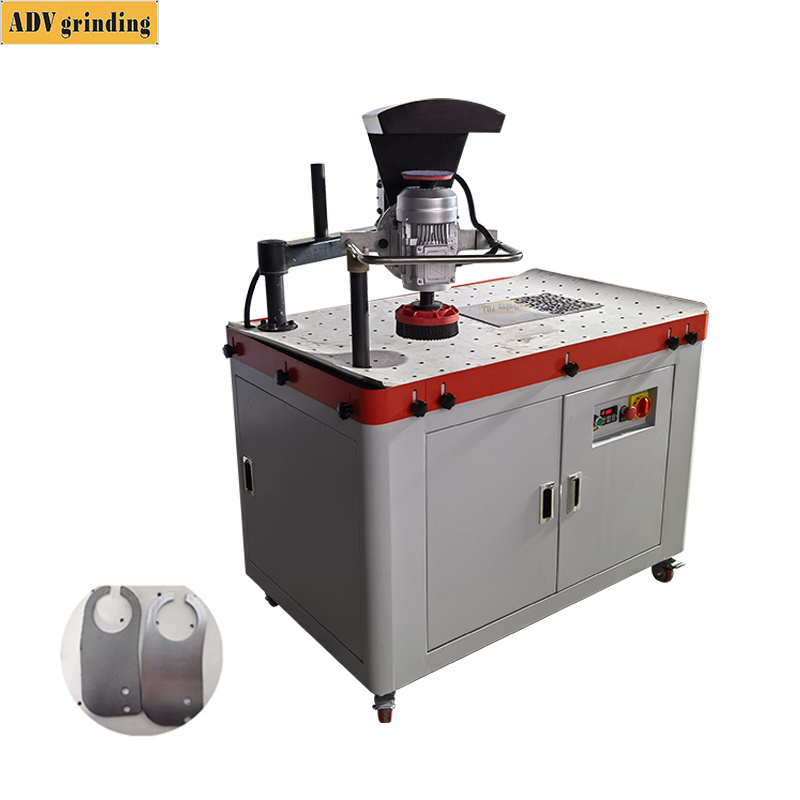

Flexible swing arm deburring and edge rounding machine with vacuum
-
Vacuum area:
-
300*330mm
-
Working head power:
-
0.75 kw
-
Number of heads:
-
2
-
Head types:
-
disc brush/polishing pad
-
Dust extraction capacity required:
-
1000m3/h
-
Swing arm span:
-
1500mm*360°
-
Maximum part dimension:
-
1300*800 mm
-
Available thickness range:
-
1-150 mm
-
Total power:
-
4.5 kw
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ADV
-
Marketing Type:
-
New Product 2022
-
Power (kW):
-
4.5
-
Weight (KG):
-
800
-
Product name:
-
Flexible swing arm deburring and edge rounding machine with vacuum
-
Vacuum area:
-
300*330mm
-
Working head power:
-
0.75 kw
-
Number of heads:
-
2
-
Head types:
-
disc brush/polishing pad
-
Dust extraction capacity required:
-
1000m3/h
-
Swing arm span:
-
1500mm*360°
-
Maximum part dimension:
-
1300*800 mm
-
Available thickness range:
-
1-150 mm
-
Total power:
-
4.5 kw
Machine Description
Flexible swing arm deburring and edge rounding machine with vacuum working:
1.ADV 508-M is suitable for small batch parts deburring and edge rounding. It has much better working efficiency, and more consistent performance than traditional hand held angle grinder or orbital sander.
2.
This versatile machine has two heads, an easy to change polishing pad and disc brush. The different kind brushes could take care of deburring, edge rounding, finishing, laser oxide removal and heavy slag removal. Also, mirror finish can be created if required.
3.
With the 180 degrees rotating shaft is it easy to rapid switching between different consumables. A
nd then lock it.
4.
The working table also has partial vacuum area for accommodating small parts. Simply position the parts on the vacuum area, then the strong downdraft force will firmly hold the parts in place.
Machine Parameters
|
Product name
|
Flexible swing arm deburring and edge rounding machine with vacuum working
|
|
Vacuum area
|
300*300 mm
|
|
Working head power
|
0.75 kw
|
|
Number of heads
|
2
|
|
Head types
|
Disc brush/polishing pad
|
|
Dust extraction capacity required
|
1000m3/h
|
|
Swing arm span
|
1500 mm*360°
|
|
Maximum part dimension
|
1300*800 mm
|
|
Available thickness range
|
1-150 mm
|
|
Total power
|
4.5 kw
|
Machine Parts
Manual deburring, edge rounding and finishing of metal.
Polishing pad/disc brush
ADV 508-M is equipped with dual abrasive pad and disc brush configuration which were driven by the same motor.
Small batch parts deburring, edge rounding, finishing.
Very small parts can be machined due to the use of a vacuum table
With dust-cleaning and
vacuum adsorption
function
Large hole dust-cleaning area, small hole vacuum area.
Original spare parts and tooling:
Machine Application
Application Materials:
ADV 508-M manual deburring machine is suitable for stainless steel, steel, aluminium, copper, etc.
Application products:
Removal of burrs on laser-cut, plasma-cut, oxy fuel-cut and punched products
Application Industries:
ADV 508-M manual deburring machine are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
ADV 508-M manual deburring machine is suitable for stainless steel, steel, aluminium, copper, etc.
Application products:
Removal of burrs on laser-cut, plasma-cut, oxy fuel-cut and punched products
Application Industries:
ADV 508-M manual deburring machine are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
We Support FREE Testing Samples for Customers
If you have any questions about the manual deburring machine or other related questions, please contact us without hesitation
