Quick Details
-
Max. Loading Capacity:
-
200
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
1400mm*600mm*1900~2400 mm
-
Power (kW):
-
0.75 kW
-
Marketing Type:
-
Hot Product 2023
-
Design Volume:
-
6L
-
Working Capacity:
-
5L
-
Contact Part Material:
-
SUS316
-
Dimension:
-
1400mm*600mm*1900~2400 mm
-
Spare parts:
-
One year spare parts and tools
-
Warranty Year:
-
1 Year
-
Using life:
-
More than 15 years
-
Pot Working Pressure:
-
-0.090 Mpa
-
Jacket Working Pressure:
-
0.2Mpa
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2800 r.p.m
-
Max. Loading Capacity:
-
200
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
1400mm*600mm*1900~2400 mm
-
Power (kW):
-
0.75 kW
-
Marketing Type:
-
Hot Product 2023
-
Design Volume:
-
6L
-
Working Capacity:
-
5L
-
Contact Part Material:
-
SUS316
-
Dimension:
-
1400mm*600mm*1900~2400 mm
-
Spare parts:
-
One year spare parts and tools
-
Warranty Year:
-
1 Year
-
Using life:
-
More than 15 years
-
Pot Working Pressure:
-
-0.090 Mpa
-
Jacket Working Pressure:
-
0.2Mpa
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please
Send An Inquiry
At The Bottom Of The Page.
Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
The Product Is Mainly Applied In Such Industries As Daily Chemical Care Products, Food Industry, Paint And Ink, Nanometer Materials, Petrochemical Industry, Printing And Dyeing Auxiliaries, Pulp & Paper, Pesticide, Fertilier, Plastic & Rubber, Electrics And Electronics, Fine Chemical Industry, Etc. The Emulsifying Effect Is More Prominent For Materials Of High Base Viscosity And High Solid Content.
Features:
1.Complex Scraping Board Blending Oar Is Suitable To Every Kind Of Complicated Recipe And Achieve Optimizing Effect;
2. Polytetrafluroethylene Scraping Board Cater To Body Of Blending Groove And Scrape Out Viscosity Material On Boiler Wall;
3.Homogenizer Is Installed On Boiler Bottom To Increase Motor Power More Thoroughly And Strongly. During Fewproduction, It Can Exert Homogenizing Effect Fully;
4.Mightiness Balance Isotactic Curve Rotor Is Matched With Stator With Corresponding Structure To Realize Liquid High -Capability Cut,Rubbing,Centrifugal To Make Sure Exquisite And Slick Cream; Boiler Body And Pipe Surface Mirror Polishing 300EMSH (Sanitation Grade) Accords With Daily Chemical And GMP Regulation.
5.Homogenizing Vacuum Emulsifier Mixer Can Choose Frequency Conversion Timing Homogenizer And Highest Rotate Speed Is 4500 r/Min
|
Manufacturer
|
China LTPM Group Co., LTD
|
|
|
||
|
PN
|

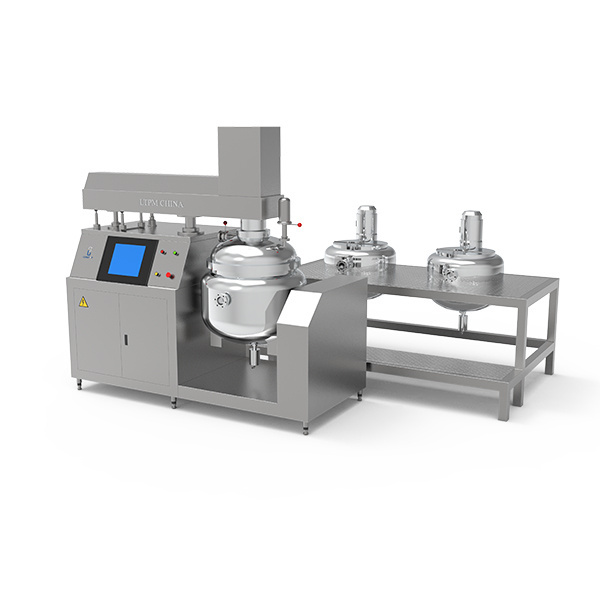

200L vacuum emulsifying mixer
|
|
|
||
|
Capacity
|
Design volume: 200L, working capacity:160L
|
|
|
||
|
Kettle Cover
|
Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
|
|
|
||
|
Mixing pot
|
Material
|
|
Inner layer: SUS316L thickness: 4mm
|
||
|
|
|
|
Middle layer: SUS304 thickness: 4mm
|
||
|
|
|
|
Outside layer: SUS304 thickness:3mm
|
||
|
|
configuration
|
|
Bottom material exhaust, size: 1.5”
|
||
|
|
|
|
Temp. sensor (0-199℃)
|
||
|
|
|
|
Electrical heating: 8kw, cooling water inlet
|
||
|
Stirring system
|
Homogenizer
|
1．Material: SUS316L; standard homogenizer
2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min |
|
||
|
|
Stirring scrap and
middle stirring
|
Material: SUS316L，Scrap material: PTFE
|
|
||
|
|
|
1. Stirring scrap and middle stirring use the same motor
2、Power：1.5 kw/380V/50Hz；RPM：0~86r/min（Frequency control） 3. Stirring scrap and middle stirring rotating the opposite direction |
|
||
|
|
|
Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
|
|
||
|
Vacuum system
|
1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz
2. With pressure sensor (during vacuum condition, hydraulic can not open) |
|
|
||
|
Heating method
|
Jacket electrical heating
|
|
|
||
|
Exhaust method
|
Electric doom and bottom discharge or positive pressure discharge material
|
|
|
||
|
Pressure
|
Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
|
|
|
||
|
Control box
|
SUS304 , 1.2mm thickness
|
|
|
||
|
Dimension
|
1900mm×600mm×2650~3500 mm
|
|
|
||
|
|
Shelf is SS, platform with raised platform and SS guardrail
|
|
|
||
|
Spare parts
|
One year spare parts and tools
|
|
|
||
|
Guarantee
|
One year
|
|
|
||
|
Using life
|
More than 15 years
|
|
|
||
Product Details
Inside of the cover
The cover of the pot
Filter : (the material which will
be mixed feeds in from here)
Inside of the filter
lnspection light
View window
Small hopper for adding small quantity material
Vacuum valve and pressure
indicator(for the pressure in the pot)
Product Highlights
HIGH SHEAR HOMOGENIZER
Fast agitator:
Teethed type rotor and stator assembly installedon the vessel Bottom or on the top as optional items,severalinterchangeable configurations are available.
FRAME MIXER
Dead-end stirring,with sufficient mixing area and good stirring effect.
HYDRAULIC LIFTING SYSTEM
Used for material discharge and cleaning.It is more convenient and safer for the operator.
GRADE MATERIAL
High quality SUS304 & 316L material, internal andexternal mirror polish of homogenizer tank.
Final Product
