Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M16
-
Certificate:
-
CCC/CE/RoHS
-
Pin:
-
4pin
-
Current rating:
-
10A
-
Voltage rating:
-
125V
-
Protection level:
-
IP68
-
Wistanding voltage:
-
1500V
-
Operating temperature:
-
-40℃~105℃
-
Connecting mode:
-
Screw type
-
Material:
-
High performance engineering plastic
-
Color:
-
Black
Quick Details
-
Type:
-
XLR
-
Application:
-
Automovie,Power,LED,
-
Gender:
-
plug socket
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M16
-
Certificate:
-
CCC/CE/RoHS
-
Pin:
-
4pin
-
Current rating:
-
10A
-
Voltage rating:
-
125V
-
Protection level:
-
IP68
-
Wistanding voltage:
-
1500V
-
Operating temperature:
-
-40℃~105℃
-
Connecting mode:
-
Screw type
-
Material:
-
High performance engineering plastic
-
Color:
-
Black
Product Description

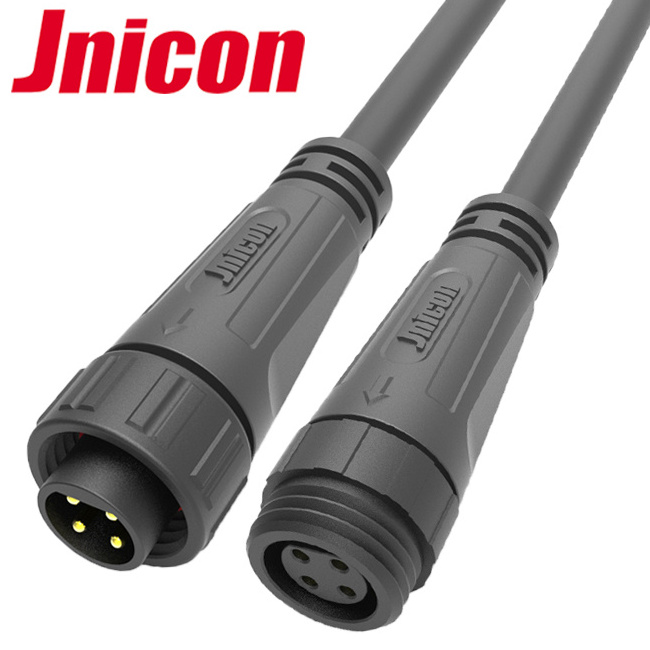

- Jnicon M16 waterproof connectors, have 2 connections model, one is screw locking IP68 model, the other is Push locking IP67 model.
- Both models could support 10A current rated max. and widely used in various application.
- Pin arrangement from 2pin to 8pin
- 2PIN, 3PIN, 4PIN for power
- 2+3PIN,2+4PIN for power and signal combined
- 8PIN for signal
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 10A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 9.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 1.5mm2 |
| Electrical Parameters | |
| Number of Poles | 2 to 8pin |
| Current Rating |
10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage |
1500VAC @ 60 s.
|
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Technical Dimension
Production Flow
Attention Please
Before quotation, please tell us the cable requested details.
1. Current rating, eg: 8A...
2. Wire gauge, eg: 2*1.5mm²...
3. Cable OD(outer diameter), eg: 8mm...
