PLC system,touch screen operation and control button group,s
imple operation
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1
-
Grindingtimes:
-
0-100time
-
Grinding cycle speed:
-
1800r/min
-
Widestlength:
-
500mm
-
O.D.ofgrinding wheel:
-
250mm
-
Swingdistance:
-
0-50mm
-
Feeddistance:
-
500mm
-
Worktable area:
-
550*550mm
-
Grinding area ofsingle axis workpiece:
-
W.0-500*L.0-500
-
Overalldimension:
-
1600*1580*1600mm
-
Electromagnet specifcation:
-
Thick 0.2-40mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUHUA
-
Power (kW):
-
7.5
-
Weight (KG):
-
1
-
Grindingtimes:
-
0-100time
-
Grinding cycle speed:
-
1800r/min
-
Widestlength:
-
500mm
-
O.D.ofgrinding wheel:
-
250mm
-
Swingdistance:
-
0-50mm
-
Feeddistance:
-
500mm
-
Worktable area:
-
550*550mm
-
Grinding area ofsingle axis workpiece:
-
W.0-500*L.0-500
-
Overalldimension:
-
1600*1580*1600mm
-
Electromagnet specifcation:
-
Thick 0.2-40mm

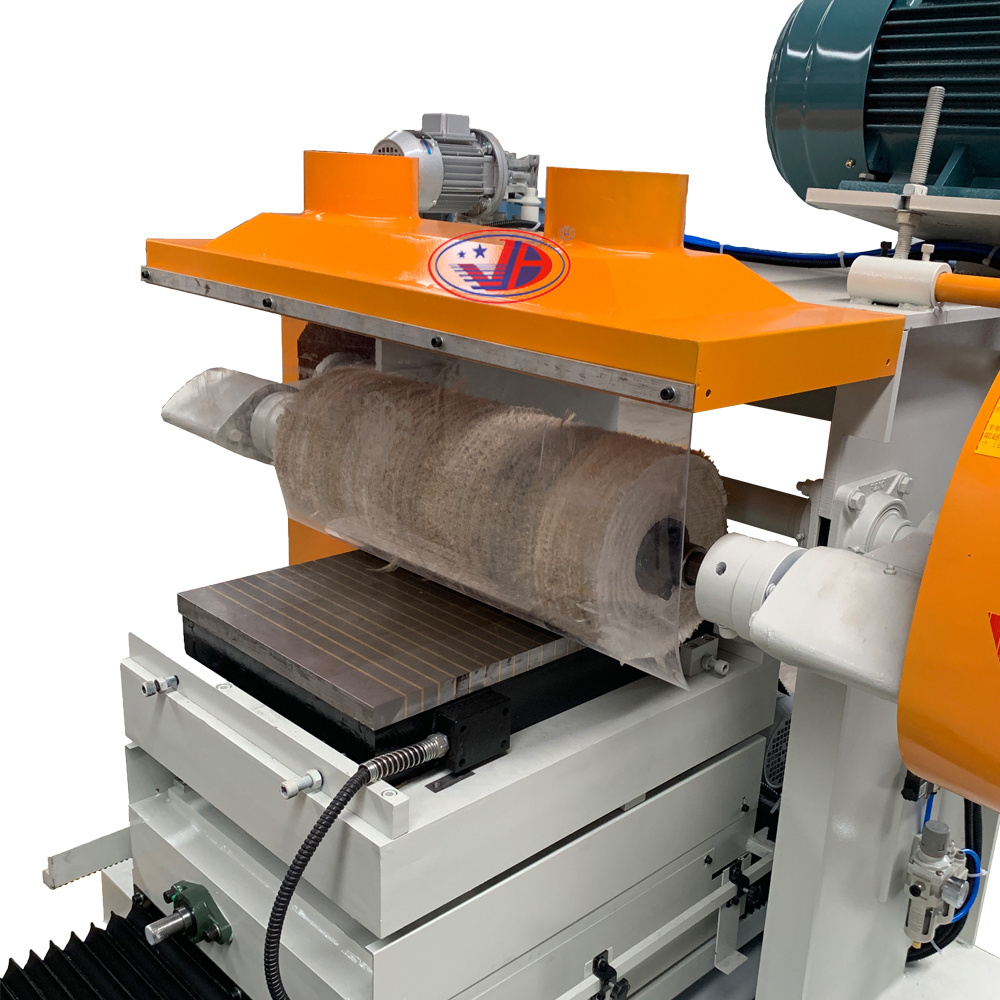

Single side automatic polishing machine adding magnet JH-07C175-D
Function :
1. This machine is mainly used to polish and polish the surface ofiron products. The installation of electromagnet can quicklyadsorb and fix the products. It solves the problem of fixing small iron parts such as thin products and small products.
2. Different consumables such as hemp wheel, cloth wheel, grinding wheel and nylon wheel can be installed for polishing, sanding and wire drawing.
3.The worktable moves forward and backward automatically and swings left and right. The polished products are uniform, stable inquality and high in effciency.
4.This machine is widely used and cost-effective.
5.The equipment can be operated by both hands and can be added with environmental protection cover to solve the dust problem.
Machine operation system
Sliders and guides:
High precision and high temperature resistant sliders and guides
|
No
|
Item
|
Specification
|
|
1
|
Model
|
JH-07C175-D
|
|
2
|
Motorpower
|
7.5KW
|
|
3
|
Grindingtimes
|
0-100time
|
|
4
|
Grinding cycle speed
|
1800r/min
|
|
5
|
Widestlength
|
500mm
|
|
6
|
O.D.ofgrinding wheel
|
Φ250mm
|
|
7
|
Swingdistance
|
0-50mm
|
|
8
|
Feeddistance
|
500mm
|
|
9
|
Worktable area
|
550*550mm
|
|
10
|
Grinding area ofsingle axis workpiece
|
W.0-500*L.0-500
|
|
11
|
Machine size
|
1600*1580*1600mm
|
|
12
|
Electromagnet specification
|
Thick 0.2-40mm
|
More Customer Cases：
We Support FREE Testing Samples for Customers
About machine style, we have different machine style, if you have any other requirements, we also support, customize your own solutions
Dongguan City Juhua Machinery Co., Ltd.
Dongguan City Juhua Machinery Co., Ltd., we are a surface treatment and polishing machinery manufacturing enterprise integrating innovative R&D, production and sales. The company is located in Dongguan City, the manufacturing capital of China, covering an area of more than 13,000 square meters and employing nearly 100 people.
It has been in development for
22 years
. It has
nearly 100 inventions and utility model patents
. It has been a high-tech enterprise for many years and has become a relatively large-scale manufacturer in the same industry in China. Its products include
intelligent polishing machines, automatic sanding machines, Automatic belt sanding and polishing machine.
Applicable industries include surface treatment of iron, copper, aluminum, stainless steel, titanium-magnesium alloy and other metal products in furniture, aviation, automobile, bathroom, new energy, architectural decoration, home appliances, kitchen utensils, electronics, luggage accessories, etc. And
can customize non-standard special polishing machine according to customer design
.
FAQ
Q: Do you have CE and ISO certification and other documents for customs clearance?
A: Yes, we have CE and ISO, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
