Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HJZ
-
Weight (KG):
-
15 KG
-
Marking Area:
-
110mm*110mm (optional)
-
Core Components:
-
Laser Source
-
Model:
-
HJZ -DB-01
-
Laser source:
-
Raycus , IPG , Max
-
Nominal average output power:
-
20w
-
Central emission wavelength:
-
1060-1070 nm , range 10%-100%
-
Pulse Repetition Rate* kHz:
-
20-80 kHz
-
Energy per pulse (PRR = 20 kHz):
-
0.95 mJ
-
Typical beam quality, M2:
-
<1.8
-
Output fiber delivery length:
-
3m
-
Operating voltage:
-
220V
-
Certification:
-
CE
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HJZ
-
Weight (KG):
-
15 KG
-
Marking Area:
-
110mm*110mm (optional)
-
Core Components:
-
Laser Source
-
Model:
-
HJZ -DB-01
-
Laser source:
-
Raycus , IPG , Max
-
Nominal average output power:
-
20w
-
Central emission wavelength:
-
1060-1070 nm , range 10%-100%
-
Pulse Repetition Rate* kHz:
-
20-80 kHz
-
Energy per pulse (PRR = 20 kHz):
-
0.95 mJ
-
Typical beam quality, M2:
-
<1.8
-
Output fiber delivery length:
-
3m
-
Operating voltage:
-
220V
-
Certification:
-
CE

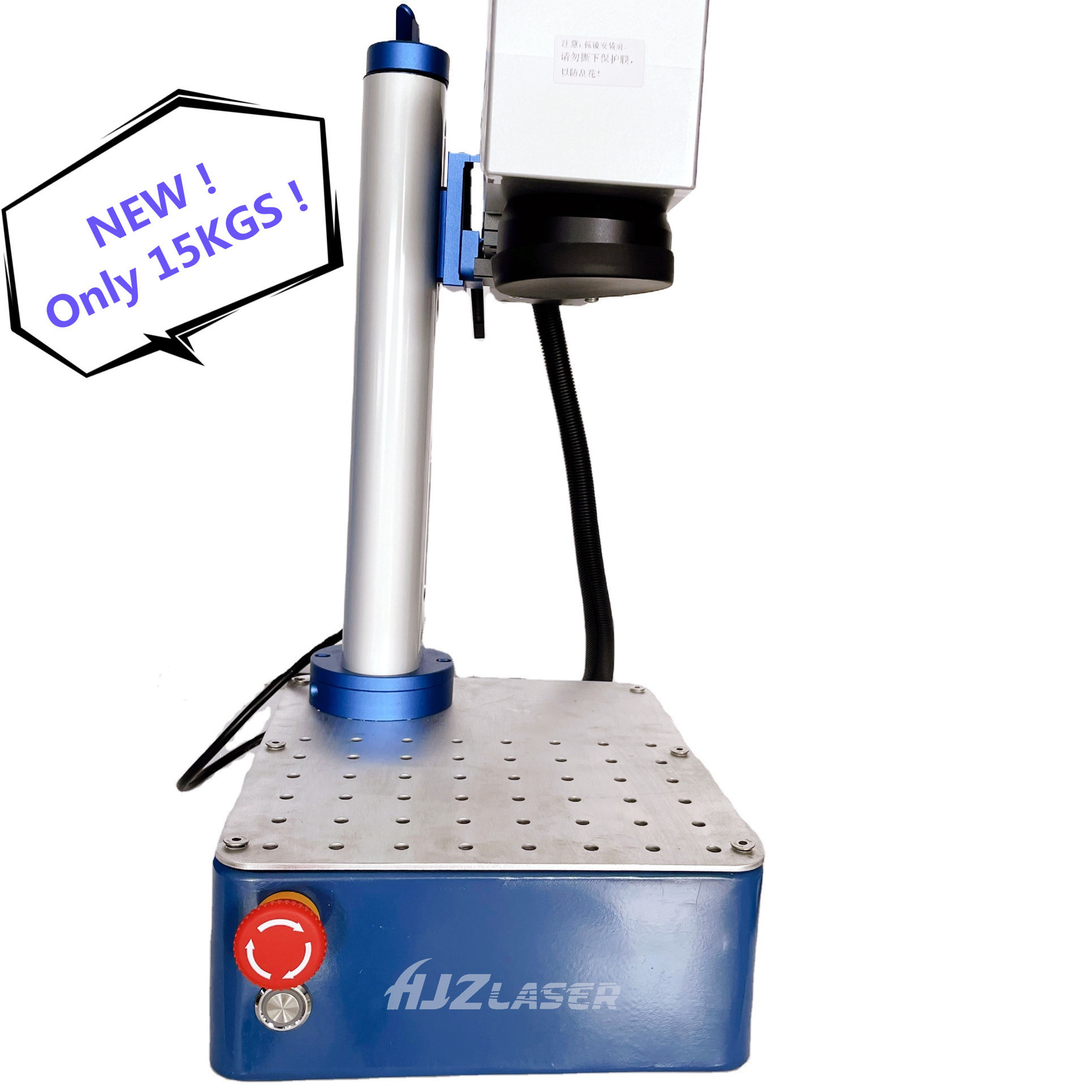

Custom Driving License ID Card Passport Logo Printer for PVC Plastic Metal
Product descriptions :
2. High-quality imported laser source:
IPG, Raycus, Max, JPT
.
20W 30W 50W 100 watt
laser source is available, stable laser beam, smooth and fine marking lines.
3. High-speed marking: shorten the time for processing the work-piece, and increase the working efficiency.
4. High-efficiency electro-optical conversion: zero-power coupling loss, no have consumables, and no need later maintenance.
5. 10 years of operation life : this fiber laser marking machine applied for metal can meet for 24-hour continuous and stable processing.
5. 10 years of operation life : this fiber laser marking machine applied for metal can meet for 24-hour continuous and stable processing.
6. High performance, high reliability control system:
friendly interface, stable and reliable system.
7. Low power consumption: low cost, only 0.5 kw/h.
Product Description
Specification
|
Technical parameter
|
|
|
|
Item / Model
|
HJZ-DB-01 20W/30W
|
|
|
Laser source
|
Domestic Raycus (Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)
|
|
|
Laser power
|
20w/30w (50w,60w ,70w,100,120w is optional)
|
|
|
Laser type
|
Fiber laser
|
|
|
Graphic Format Supported
|
DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,
|
|
|
Marking speed
|
≤8000mm/S
|
|
|
Max.Marking Depth
|
≤0.4mm
|
|
|
Laser Wavelength
|
1064nm
|
|
|
Marking lines
|
0.06-0.1mm
|
|
|
Minimum line width
|
0.06mm
|
|
|
Minimum character
|
0.15mm
|
|
|
Resolution ratio
|
0.01mm
|
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
|
Software supported
|
TAJIMA, CorelDraw, Photoshop, AutoCAD
|
|
|
Equipment Dimensions
|
755*390*360mm
(different model has different size,detailed can be confirmed with sellers) |
|
|
Net/Gross Weight:
|
26/44kg(different configuration has small difference)
|
|
|
Unit Power
|
≤500W
|
|
|
Optional Spare Parts
|
Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on.
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
