This machine is used to compress and pack fluffy items such as quilt, pillow, cushion, etc., which can reduce volume, storage and
transportation cost. Using plastic composite film packaging bag, using compressed air as the power, packing items are packed in
the packaging bag under the condition of compression, the structure is simple and the action is flexible, which is the ideal
packaging equipment for the export of home textile handicraft industry.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Tian Yuan
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
2270*1770*1180mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product name:
-
JBJ-9 Pillow Roll Packing Machine
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Voltage:
-
380v
-
Power:
-
0.75kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tian Yuan
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
2270*1770*1180mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product name:
-
JBJ-9 Pillow Roll Packing Machine
-
Marketing Type:
-
Hot Product 2019
Product Description

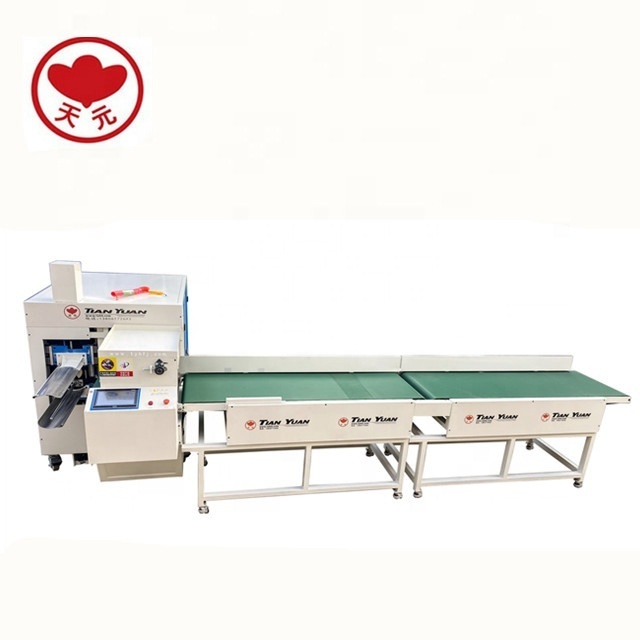

JBJ-9 QUILT COILING MACHINE
Direction for use
1) Coil diameter: Φ 130mm - Φ 550mm (different molds need to be replaced, special sizes can be customized)
2) Power supply: three-phase, 380V, 50Hz
3) Power: 3.75kw
4) Gas source pressure: 0.5 ~ 0.8MPa
5) Packaging capacity: 2-6 pieces / min
6) Boundary dimension: (L * w * h) 2260mmx1060mmx1800mm
7) Electric control of mold lifting touch screen (stroke 200 mm).
2) Power supply: three-phase, 380V, 50Hz
3) Power: 3.75kw
4) Gas source pressure: 0.5 ~ 0.8MPa
5) Packaging capacity: 2-6 pieces / min
6) Boundary dimension: (L * w * h) 2260mmx1060mmx1800mm
7) Electric control of mold lifting touch screen (stroke 200 mm).
Size Information
(L * w * h) 2260mmx1060mmx1800mm
Packing&Shipping
After Sales Service
Company Introduction
We are specialised manufacturer in providing quality multi-task quilt machine TYHFJ series with 20 years experience. Through development and research, the company started from the original single product of machines, and continuously develops and produces a new generation of quilting machines, computerized multi-needle quilting machines, and similar machines for textile and garment processing, to meet the different requirements of customers. Development of "ready to use" products has been a significant achievement for all staff at Tianyuan Group. Recently, with adopting the imported advanced technology, a brand new model Unwoven Quilting Machine and related instruments are available to the new market. There are two new patents( Series No: ZL00219626.3 andZL00315304.5) applied in. Our company has been found to conform to Quality Management System Standard ISO9001. Some products have CE certificate.
