Quick Details
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1909*765*3mm
-
Panel Efficiency:
-
21.9%
-

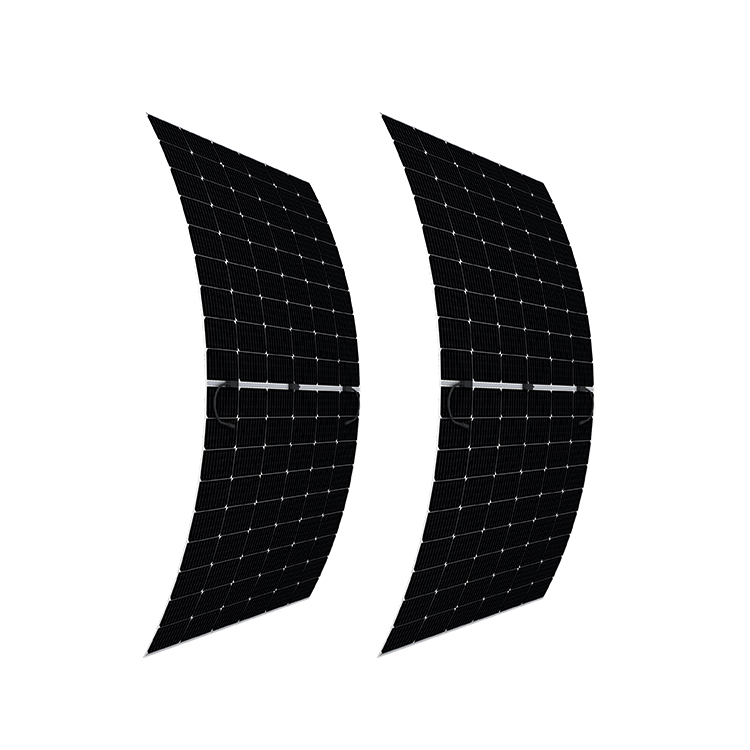

Product name:
-
Flexible Solar Panel
-
Application:
-
Solar Power System
-
Keyword:
-
Flexiable Solar Panel
-
Type:
-
Flexible
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Certificate:
-
IEC
-
Warranty:
-
10 Years
-
Junction Box:
-
IP68 Rated Waterproof
-
Connector:
-
Compatible Connector
-
Cell Type:
-
Mono Crystalline Solar Panel
Quick Details
-
Cell size:
-
182mmx182mm
-
Brand Name:
-
HTSOLAR
-
Model Number:
-
HET-320FM
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1909*765*3mm
-
Panel Efficiency:
-
21.9%
-
Product name:
-
Flexible Solar Panel
-
Application:
-
Solar Power System
-
Keyword:
-
Flexiable Solar Panel
-
Type:
-
Flexible
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Certificate:
-
IEC
-
Warranty:
-
10 Years
-
Junction Box:
-
IP68 Rated Waterproof
-
Connector:
-
Compatible Connector
-
Cell Type:
-
Mono Crystalline Solar Panel
Product Paramenters
|
CHARACTERISTICS
|
|
|
|
|
|
|
||||||
|
Maximum Power (Pmax)
|
250W
|
300W
|
360W
|
420W
|
450W
|
500W
|
||||||
|
Maximum Power Voltage (Vmp)
|
18.85V
|
27.68V
|
33.30V
|
31.80V
|
33.91V
|
38.35V
|
||||||
|
Maximum Power Current (Imp)
|
13.27A
|
10.84A
|
10.83A
|
13.21A
|
13.28A
|
13.04A
|
||||||
|
Open-circuit Voltage (Voc)
|
21.83V
|
33.13V
|
40V
|
37.58V
|
40.02V
|
45.26V
|
||||||
|
Short-circuit Current (Isc)
|
13.97A
|
11.33A
|
11.57A
|
14.10A
|
13.88A
|
13.63A
|
||||||
|
Dimensions
|
1535*765*3mm
|
1909*765*3mm
|
1755*1038*3mm
|
1722*1134*3mm
|
1903*1134*3mm
|
2094*1134*3mm
|
||||||
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃ AM1.5G
|
|
|
|
|
|
||||||
