- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
COSO
-
Model Number:
-
PEC2005A
-
Frame material:
-
SUS 304
-
Alarm mode:
-
Sound and light, metal be eliminated
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Pipeline metal detector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COSO
-
Model Number:
-
PEC2005A
-
Frame material:
-
SUS 304
-
Alarm mode:
-
Sound and light, metal be eliminated
Product Description

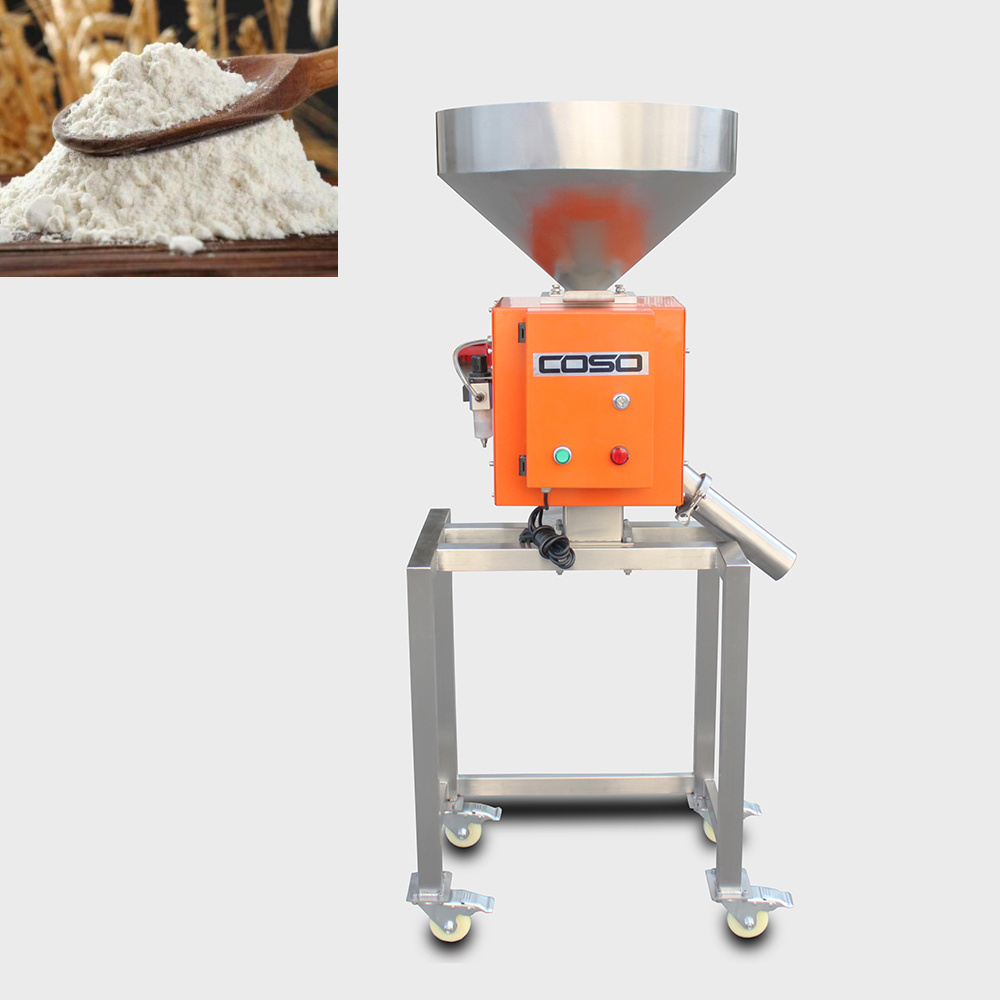

Pipeline metal separator is designed to remove metal contamination from products. It's widely used in plastic, pharmaceutical, food, chemical and other industries. It's able to quickly detect and automatically separate iron, copper, aluminum, stainless steel and other metal impurities from materials.
Application(included but not limited to)
Product Detail
Product Feature
1.The shape and size of funnel and support frame can be customized.
2.The operation is very simple.
3.A variety of aperture diameter can be chosen, which can meet all practical applications.
Product Parameter
| Model | Aperture diameter( Φ) | Best sensitivity | Material temperature | Metal eliminated time | ||
| FeΦ | Non-Fe Φ | SUS Φ | ||||
| PEC2005A-30 | 20 | 0.3mm | 0.5mm | 0.8mm | <80℃ | 0.3~5s |
| PEC2005A-50 | 40 |
0.5mm |
0.8mm | 1.0mm | <80℃ | 0.3~5s |
| PEC2005A-70 | 60 | 0.8mm | 1.0mm | 1.2mm | <80℃ | 0.3~5s |
| PEC2005A-100 | 80 | 1.0mm | 1.2mm | 1.5mm | <80℃ | 0.3~5s |
| PEC2005A-120 | 100 | 1.2mm | 1.5mm | 2.0mm | <80℃ | 0.3~5s |
| PEC2005A-150 | 130 | 1.5mm | 2.0mm | 2.5mm | <80℃ | 0.3~5s |
| PEC2005A-200 | 180 | 2.0mm | 2.5mm | 3.0mm | <80℃ | 0.3~5s |
| PEC2005A-220 | 200 | 2.5mm | 3.0mm | 3.5mm | <80℃ | 0.3~5s |
Notes:
1.All the sensitivity parameters above is on the basis of the test block falling freely through the pipe, the actual sensitivity will be affected by the product's characteristics and working environment.
Company Profile
In 2005, Mr.Chen founded Dongguan Coso Electronic Tech Co.,Ltd, which is the associated company of Beian Technology(Dongguan) Co.,Ltd. He contributes great efforts to the enterprise and really hopes the company has long-term development.
We provide professional customized service in the product fields of industrial metal detector, metal separator, checkweigher, needle detector, X-ray inspection system, weight sorting machine and so on. More than 18 years of technology accumulation and the cooperation with a large number of domestic and foreign customers have given us great confidence.
It would be our honor if we could solve your problem. Welcome your kind inquiry.
Certification
Exhibition
Packing and Delivery
FAQ
1. Q: What’s your mininum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it’s one of our advantages.
3. Q: How long is your delivery time?
A:Once we reach an agreement and the payment is received, the production process starts immediately, basically the lead time is 15 days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for package which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don’t know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can’t be fixed, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
