Quick Details
-
Brand Name:
-
TENGTIAN
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
250kw
-
Weight:
-
20000 kg
-
After-sales Service Provided:
-
Enginners
Quick Details
-
Pipe Material:
-
Carbon steel/stainless steel
-
Production Capacity:
-
30-120m/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TENGTIAN
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
250kw
-
Weight:
-
20000 kg
-
After-sales Service Provided:
-
Enginners

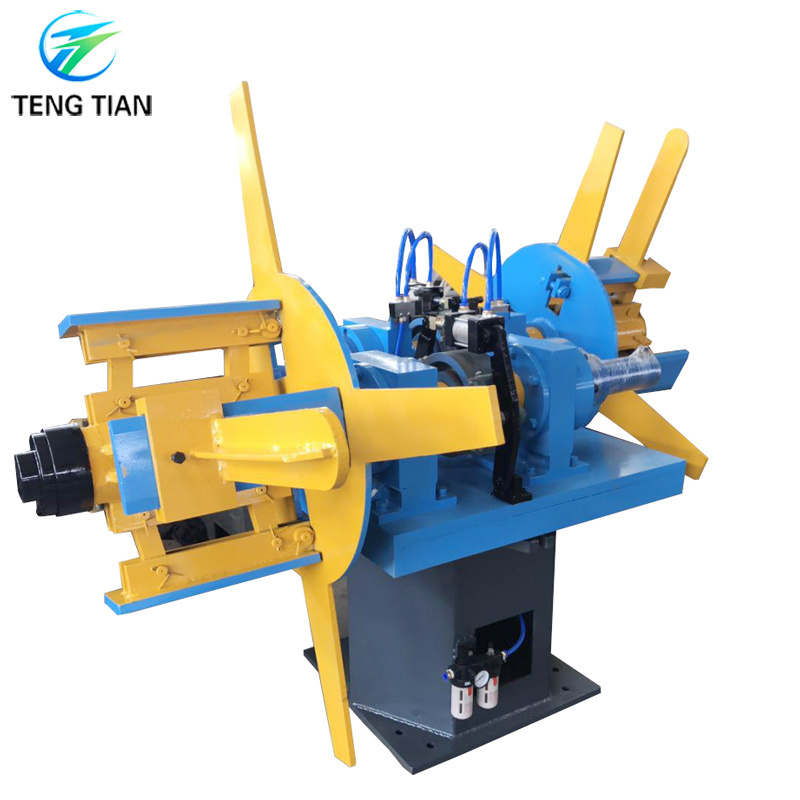

Multi-functional roll unwind coil strip uncoil for iron pipe making machine
|
item |
value |
|
Applicable Industries |
Hotels, Manufacturing Plant, Construction Works, Energy & Mining |
|
Showroom Location |
United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan |
|
Video Outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of Core Components |
1 Year |
|
Core Components |
Engine, Gearbox, Motor, Gear |
|
Condition |
New |
|
Type |
Pipe Production Line |
|
Pipe Material |
Carbon steel |
|
Application |
Energy Supply Pipe |
|
Production Capacity |
30-80m/min |
|
Place of Origin |
Hebei, China |
|
Brand Name |
Tengtian |
|
Voltage |
380V |
|
Power |
400KW |
|
Dimension(L*W*H) |
16m*100m*2m |
|
Weight |
20000kg |
|
Warranty |
1 Year |
|
Key Selling Points |
High-accuracy |
|
After-sales Service Provided |
Engineers |
|
Pipe Length |
6-12m |
|
Pipe Diameter |
45-114mm |
|
Pipe Thickness |
1.5-5.0mm |
|
Welding Method |
High Frequency Welding |
|
Material |
Carbon Steel, Stainless Steel, Alloy Steel |
|
Service Treatment |
Pickling, Passivation, Polishing, Anodizing, Plating, Coating |
| Forming Process | Roll Forming |
Material (steel coil)→uncoiler→ pinching and leveling →shear and welder→horizontal (or cage) accumulator→forming mill→HF soild welder→ external burr removing → IF annealing → heat treatment → air cooling → water cooling →sizing mill→rounghly straightening (turkey head)→cut off machine→run out table
Concrete application:
Gas transportation: coal gas, steam, liquefied petroleum gas.
Liquid transportation: water supply, drainage, mud transportation, sewage treatment.
Various agricultural machinery , scaffolds, wire threading pipes, high-rise shelves, containers.
Lightweight steel doors and windows for boilers, automobiles, ships, buildings, and furniture fitting.
