Quick Details
-
Product name:
-
Wheel Tractor
-
Model:
-
QLN-254
-
Dimensions(mm):
-
3250*1550*2240 mm
-
Engine:
-
Laidong Engine
-
Wheel drive:
-
4wheel Drive Farm Tractor
-
Gear shift:
-
8F+2R Shuttle Shift
-
Tyres:
-
6.0-16/9.5-24
-
Feature:
-
High Efficiency Easy Operation
-
Implements:
-
Plough Harrow Cultivator Trailer Mower
-
Color:
-
Customer Requirements
Quick Details
-
Brand Name:
-
Chalion
-
Place of Origin:
-
Henan, China
-
Weight:
-
1600 KG
-
Product name:
-
Wheel Tractor
-
Model:
-
QLN-254
-
Dimensions(mm):
-
3250*1550*2240 mm
-
Engine:
-
Laidong Engine
-
Wheel drive:
-
4wheel Drive Farm Tractor
-
Gear shift:
-
8F+2R Shuttle Shift
-
Tyres:
-
6.0-16/9.5-24
-
Feature:
-
High Efficiency Easy Operation
-
Implements:
-
Plough Harrow Cultivator Trailer Mower
-
Color:
-
Customer Requirements
Products Description

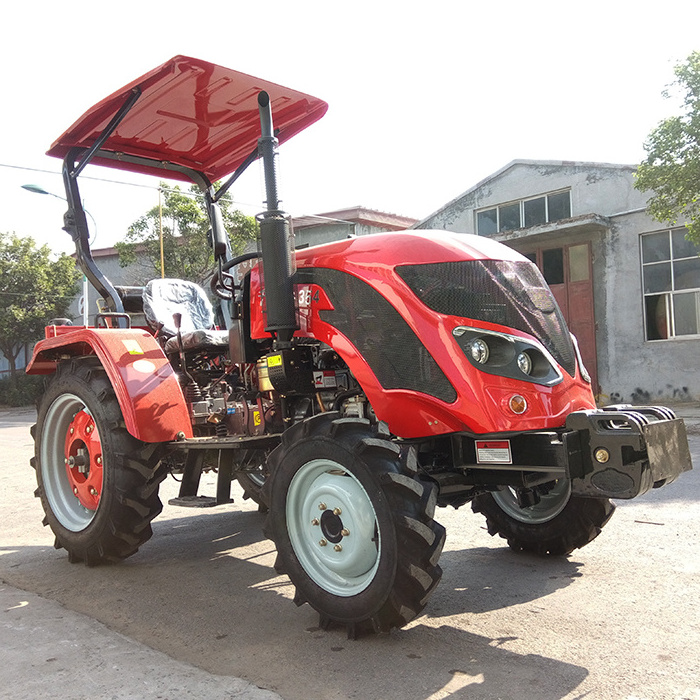

China Compact Tractors Small Horsepower 25HP Farm Tractor Small Garden Tractor With Cultivator Rotary Tiller In Ghana
1.The farm tractor adopt renowned directly injection vertical water cooled 4-stroke LAIDONG/JIANGDONG engine.And the gear box use 8F+2R Shuttle Shift.
2.The agriculture tractors PTO speed:540/720 rpm.Linkage: I Rear Mount 3-point Linkage.
3.Tyre of farming tractors F/R (mm): 6.0-16/9.5-24.
4.The wheel tractor clutch use single disc,dry,single-function.
5.This agricultural tractormodel adopt 25 L fuel tank.
Product Paramenters
|
Specification
|
|
|
|
|
||||
|
Model
|
QLN-254
|
|
|
|
||||
|
Dimensions
|
Length×Width×Height(mm)
|
3250*1550*2240
|
|
|
||||
|
Dry Mass
|
With ROPS(kg)
|
1520
|
|
|
||||
|
Engine
|
Engine brand
|
LAIDONG/JIANGDONG
|
|
|
||||
|
|
Engine Model
|
Directly Injection Vertical Water Cooled 4-stroke
|
|
|
||||
|
|
Number of Cylinder
|
4
|
|
|
||||
|
|
Cooling System Type
|
Water Cooled
|
|
|
||||
|
|
Rated Power(kw)
|
18.4 KW
|
|
|
||||
|
|
Rated Speed(r/min)
|
2300
|
|
|
||||
|
Fuel Tank
|
Volume(L)
|
25
|
|
|
||||
|
Transmission System
|
Gear Box
|
8F+2R Shuttle Shift
|
|
|
||||
|
|
Clutch
|
Single disc,dry,single-function
|
|
|
||||
|
Braking System
|
Built-in, single-pole spur gear
|
|
|
|
||||
|
|
|
Front tyre
|
6.0-16
|
|
||||
|
|
|
Rear tyre
|
9.5-24
|
|
||||
|
Steering System
|
Hydraulic Steering
|
|
|
|
||||
