Quick Details
-
Color:
-
red
-
Material:
-
DC01
-
Item Weight:
-
9KG
-
colour:
-
red
-
volume:
-
5.3L
-
extinguisher weight:
-
8KG
-
dry powder filled weight:
-
4KG
-
test pressure:
-
27bar
-
packing:
-
carton
-
fire class:
-
21A113BC
-
certificate:
-
CE,EN3,DNV,TUV
-
Name:
-

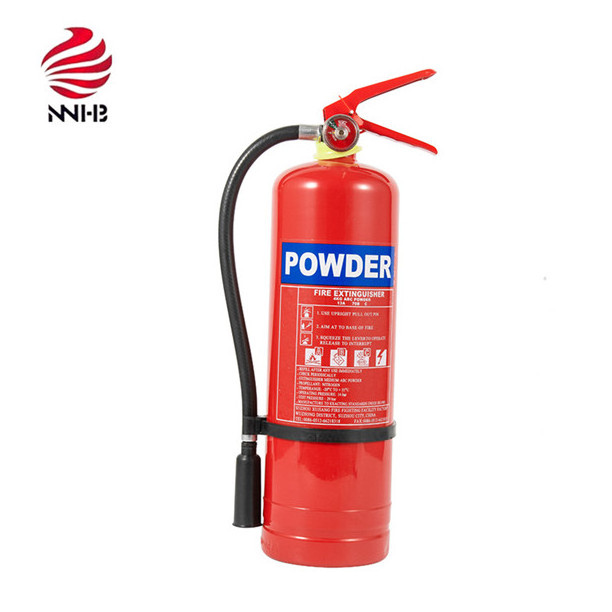

Dry Powder Fire Extinguisher
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
L.X.FIRE
-
Model Number:
-
LX04-06B
-
Color:
-
red
-
Material:
-
DC01
-
Item Weight:
-
9KG
-
colour:
-
red
-
volume:
-
5.3L
-
extinguisher weight:
-
8KG
-
dry powder filled weight:
-
4KG
-
test pressure:
-
27bar
-
packing:
-
carton
-
fire class:
-
21A113BC
-
certificate:
-
CE,EN3,DNV,TUV
-
Name:
-
Dry Powder Fire Extinguisher
Product Description
|
Capacity |
1kg |
2kg |
3kg |
4kg |
5kg |
6kg |
|
Agent |
40% powder |
40% powder |
40% powder |
40% powder |
40% powder |
40% powder |
|
Out-Diamter(mm) |
90/80 |
110 |
130 |
130 |
140 |
150 |
|
Cylinder Height(mm) |
240/265 |
300 |
330 |
415 |
435 |
480 |
|
Volume(L) |
1.25 |
2.5 |
3.6 |
4.7 |
6.2 |
7.0 |
|
Full Weight(kg) |
1.7 |
3.3 |
4.9 |
6.3 |
7.7 |
9.0 |
|
Temperature Range(°C) |
-20°C~+55°C |
-20°C~+55°C |
-20°C~+55°C |
-20°C~+55°C |
-20°C~+55°C |
-20°C~+55°C |
|
Max working pressure(bar) |
16BAR |
16BAR |
16BAR |
16BAR |
16BAR |
16BAR |
|
Discharge Time(sec) |
6 |
6 |
9 |
9 |
9 |
9 |
|
Dischare Ranger(m) |
3 |
3 |
3.5 |
3.5 |
4 |
4 |
|
Min Wall-thickness(mm) |
0.79/0.72 |
1.07 |
1.13 |
1.13 |
1.16 |
1.2 |
|
Material |
DC01 |
DC01 |
DC01 |
DC01 |
DC01 |
DC01 |
|
Packing Size(mm) |
49X20.5X33 |
24.5X24.5X40 |
28.5X15X43 |
28.5X15.51 |
30.5X16X53.5 |
32.5X15X58 |
