Custom AR Coating BK7/K9 Wedge Window, Wedge Prism Range from 3 Minutes to 30 Degree with Surface Quality 40-20 Optical Plano

Custom AR Coating BK7/K9 Wedge Window, Wedge Prism Range from 3 Minutes to 30 Degree with Surface Quality 40-20 Optical Plano

FOB Reference Price: Get Latest Price

≥5 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: JLGD

Model Number:: Customization

Product name:: Wedge windows/prisms

Wedged angle:: 3 arcmin-30 degree

Angular tolerance:: < 5 arcsec

Surface quality:: 60/40, 40/20, 20/10

Flatness:: Lambda/2-Lambda/8 @633nm

Clear Aperture:: >90%

Bevel:: Protective Bevel

Coating:: AR coating, BBAR coating

Dimension:: 5-400mm

Certification:: ISO9001

Quick Details

Usage:: Optical

Structure:: Plano

Shape:: Spherical

Place of Origin:: Henan, China

Brand Name:: JLGD

Model Number:: Customization

Product name:: Wedge windows/prisms

Wedged angle:: 3 arcmin-30 degree

Angular tolerance:: < 5 arcsec

Surface quality:: 60/40, 40/20, 20/10

Flatness:: Lambda/2-Lambda/8 @633nm

Clear Aperture:: >90%

Bevel:: Protective Bevel

Coating:: AR coating, BBAR coating

Dimension:: 5-400mm

Certification:: ISO9001

Product Description

Custom AR coating BK7/K9 Wedge Window, Wedge Prism range from 3 minutes to 30 degree with Surface Quality 40-20

we are manufacturer of optical glass lens ,prisms ,spherical lens ,aspherical lens ,cylindrical lens ,optical window plate

,reflective mirror and filter

we can make all kinds of optical glass products according to the drawing that customer supply

if you have any needs about the optical glass products ,please free to let me know and we can also give you good price and good service

Welcome To Inquiry

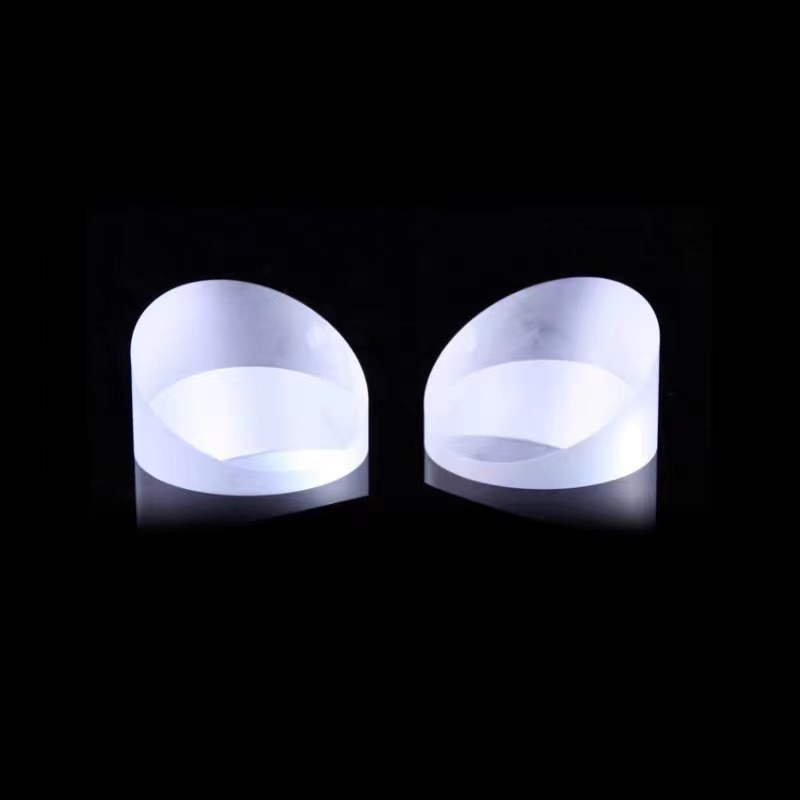

BK7/K9 Wedged Windows/Prisms

Wedged Windows prevent common issues in laser systems. Highly parallel windows can cause laser instability, mode-hopping, and power spikes through unwanted reflections. Likewise, interference effects can occur from highly parallel plates. Wedged Windows eliminate these effects by introducing a controlled wedge in the optical path.

These Wedged Windows are available in multiple material types for broad spectral transmission, along with custom sizing and coating options from broadband AR to BBAR coating upon your request.

Wedged angle could be customized as request and angular tolerance could as strict as 3 arcsec.

Material	Optical Glass BK7/K9
Dimension tolerance	+0/-0.1mm
Angular Tolerance	< 5 arcsec
Surface Quality	60/40, 40/20, 20/10 scratch and dig
Flatness	λ/2-λ/8 @633nm
Clear Aperture	>90%
Chamfer	Protective <0.5mmx45deg
Coating	AR coating @400-700nm, 650-1050nm

Our Company

Located in Henan,a becutiful city in China,nanyang jingying trade co., ltd has become one of China'S leading manufacturers of optical component,optical assemblies,lens assemblies Founded in 1999,we have a strong and steady growth that has lead us to today's staff of over 1300 comprised of a very skilled team of fabricators,mechanical engineers ,process engineers ,optical engineers and coating designers Our manufacturing capabilities consist of all type of custom manufactured lens,like plano convex lens ,biconvex lens,plano concave lens,biconcave lens,achromaticl lens,cylindrical lens,spherical lens and aspherical lens beamsplitter like beamsplitter plate,cube beamsplitter and other beamsplitter,prism,like right angle prisms,penta prisms,corner cube prism,dove prism,reflective prism,dispersion prism,anamorphic prism .coatings,optical system ,the products are widely used in non-contact inspection,medical,automation,precision instrument,automotive,micro-measuring Quality is first and always the keys to our success,we also have most advanced metrology instrument,spherical lens measurement system,prism angle measure system,with theses advanced instrument ,we acquire the ISO9001 ,CE International certificateAs a company ,we are commited to growth and development .our cooperative relationship with local universities and research center,university,optical technology research institute ,enhances our engineering and R&D techniques .With the concept of strict management,continuous innovation,continuous improvement,customer satisfation,our company is committed to deliver customers with quality products,on-time delivery ,competitive pricing .we focuses on producing high precision optical components.the goal at our company is to be your first choice of partner supplier of optical components

Our Service

a: Dimesion size : 5-300mm , thickness up to customer requirements

b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.

c: AR HR DLC coating or as your request

Packing & Delivery

Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.

3-4 weeks for custom-made products for sample.

in common, 4 weeks for mass production

FAQ

What's the way of shipping?
We commonly use UPS, FedEx, DHL, TNT, SF, EMS etc. If you have your own express account, it's great.

How to pay?

We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

How to ensure the safety of payment?
Our company is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.

Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
