Quick Details
-
Dimension(L*W*H):
-
Maximum 8300mm*3400mm*4020mm
-
Weight:
-
4T~50T
-
Product name:
-
Industry Fire Tube Boiler
-
Product thermal capacity:
-
1-20 t/h
-
Working pressure:
-
0.7-2.5Mpa
-
Thermal efficiency:
-
>98%
-
Available fuel:
-
Nature gas, coke oven gas, biogas, methanol
-
Available industries:
-
Heat suppling, chemical, food,fodder,
-
Advantages:
-
Top 1 A-Class Boiler
-
Operation:
-
Fully Automatic Control
-
Packing:
-
Seaworthy Packing
-
Manufacturer:
-
30 Years History
Quick Details
-
Core Components:
-
fire tube
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZOZEN
-
Dimension(L*W*H):
-
Maximum 8300mm*3400mm*4020mm
-
Weight:
-
4T~50T
-
Product name:
-
Industry Fire Tube Boiler
-
Product thermal capacity:
-
1-20 t/h
-
Working pressure:
-
0.7-2.5Mpa
-
Thermal efficiency:
-
>98%
-
Available fuel:
-
Nature gas, coke oven gas, biogas, methanol
-
Available industries:
-
Heat suppling, chemical, food,fodder,
-
Advantages:
-
Top 1 A-Class Boiler
-
Operation:
-
Fully Automatic Control
-
Packing:
-
Seaworthy Packing
-
Manufacturer:
-
30 Years History
Introduction

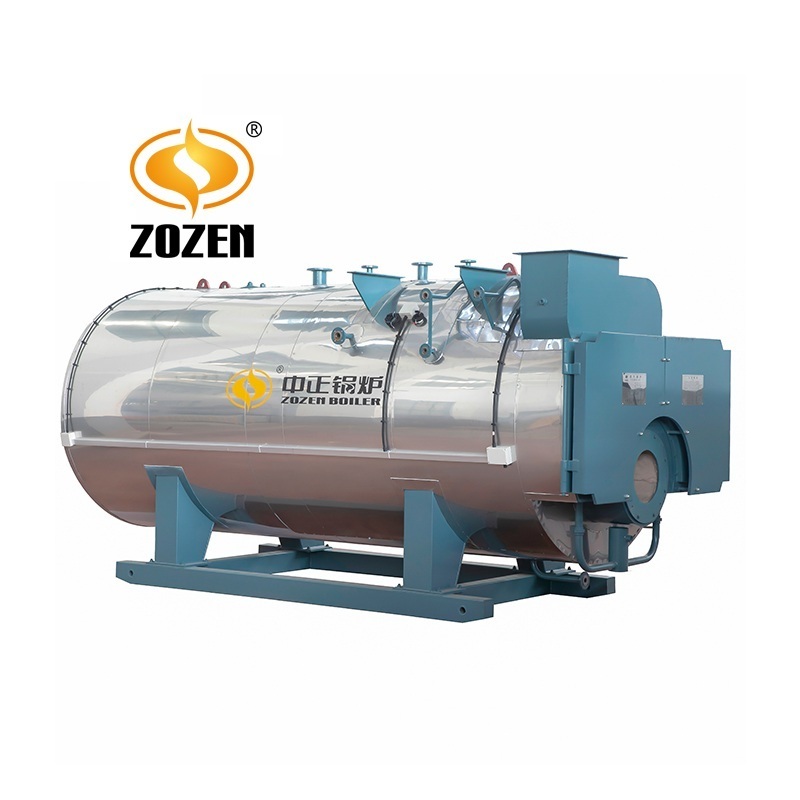

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
WNS Series condensing oil or gas fired steam boiler
| Product thermal capacity: | 1-20 t/h |
| Working pressure: | 0.7-2 Mpa |
| Available fuel: | Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc. |
| Available industries: | Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, building materials, brewery, rubber, hospital etc. |
|
Model
|
Rated steam capacity(t/h)
|
Rated working pressure(Mpa)
|
Rated steam temperature(℃)
|
|
WNS1-0.7-Y(Q)
|
1
|
0.7
|
170
|
|
WNS1-1.0-Y(Q)
|
1
|
1
|
184
|
|
WNS1.5-1.0-Y(Q)
|
1.5
|
1
|
184
|
|
WNS1.5-1.25-Y(Q)
|
1.5
|
1.25
|
194
|
|
WNS2-1.0-Y(Q)
|
2
|
1
|
184
|
|
WNS2-1.25-Y(Q)
|
2
|
1.25
|
194
|
|
WNS3-1.0-Y(Q)
|
3
|
1
|
184
|
|
WNS3-1.25-Y(Q)
|
3
|
1.25
|
194
|
|
WNS4-1.25-Y(Q)
|
4
|
1.25
|
194
|
|
WNS4-1.6-Y(Q)
|
4
|
1.6
|
204
|
|
WNS5-1.25-Y(Q)
|
5
|
1.25
|
194
|
|
WNS5-1.6-Y(Q)
|
5
|
1.6
|
204
|
|
WNS6-1.25-Y(Q)
|
6
|
1.25
|
194
|
|
WNS6-1.6-Y(Q)
|
6
|
1.6
|
204
|
|
WNS8-1.25-Y(Q)
|
8
|
1.25
|
194
|
|
WNS8-1.6-Y(Q)
|
8
|
1.6
|
204
|
|
WNS10-1.25-Y(Q)
|
10
|
1.25
|
194
|
|
WNS10-1.6-Y(Q)
|
10
|
1.6
|
204
|
|
WNS15-1.25-Y(Q)
|
15
|
1.25
|
194
|
|
WNS15-1.6-Y(Q)
|
15
|
1.6
|
204
|
|
WNS20-1.25-Y(Q)
|
20
|
1.25
|
194
|
|
WNS20-1.6-Y(Q)
|
20
|
1.6
|
204
|
1. How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
2. Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Jiangsu Boiler Inspection Institute;
(6).Passed ISO:9001 ,ISO14001,OHASA18001 and ASME(S and U) and A-class boiler certificate.
3. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
4. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
5.Terms of payment
T/T 30% of total contract value as down payment;
T/T or L/C 70% of total contract value before delivery.
6.Claim
Any claims by the buyers regarding the machines shipped should be filed within 30 days after arrival of machines at the destination specified in the relative B/L and supported by a survey report issued by a surveyor approved by the sellers, otherwise the sellers shall refuse to consider. Claims in respect of matters within responsibility of insurance company and/or shipping company will not be considered by the seller.
7. What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
