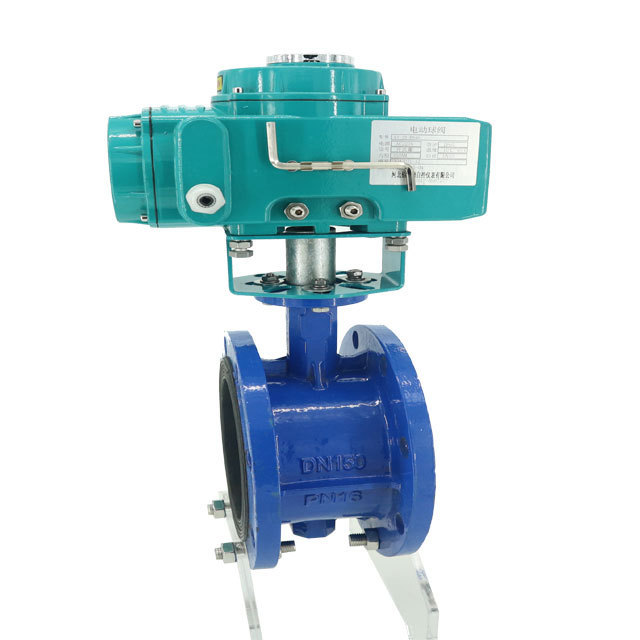

Quick Details
-
Model Number:
-
QH40-D746-H10
-
Brand Name:
-
BNDZKYB
-
Actuator torque range:
-
50~12000N.M
-
Valve diameter:
-
DN15-DN1400
-
Link mode:
-
Direct connection type, base type
-
Switching mode:
-
Switching type, regulating type
-
Supply voltage:
-
220VAC,380VAC
-
Control signal:
-
Switch type; Type 4-20mA
-
Valve plate construction:
-
Center line type, two eccentric, three eccentric
-
Valve body material:
-
WCB,CF8,CF8M,CF3,CF3M
-
Valve sheet material:
-
WCB, CF8, CF8M, lined with PTFE glue, lined with EPDM
-
Pressure rating:
-
PN10,PN16,PN25,150LB~600LB
Quick Details
-
Port Size:
-
Made according to customer requirements
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
QH40-D746-H10
-
Brand Name:
-
BNDZKYB
-
Actuator torque range:
-
50~12000N.M
-
Valve diameter:
-
DN15-DN1400
-
Link mode:
-
Direct connection type, base type
-
Switching mode:
-
Switching type, regulating type
-
Supply voltage:
-
220VAC,380VAC
-
Control signal:
-
Switch type; Type 4-20mA
-
Valve plate construction:
-
Center line type, two eccentric, three eccentric
-
Valve body material:
-
WCB,CF8,CF8M,CF3,CF3M
-
Valve sheet material:
-
WCB, CF8, CF8M, lined with PTFE glue, lined with EPDM
-
Pressure rating:
-
PN10,PN16,PN25,150LB~600LB
|
Product parameters
|
|
|
|
|
||||
|
Model
|
B-05 | B-16 | B-20 | B-25 | B-50 | B-60 | B-100
|
|
|
|
||||
|
Output Torque
|
50Nm | 160Nm | 200Nm | 250Nm | 500Nm | 600Nm | 1000Nm
|
|
|
|
||||
|
Cycle Time
|
20s | 30s | 30s | 30s |60s | 100s
|
|
|
|
||||
|
Rotation
|
0-90°
|
|
|
|
||||
|
Rated Current
|
0.3A | 0.45A | 0.68A | 0.8A | 1.2A | 2A | 4A
|
|
|
|
||||
|
Motor Power
|
10W/F | 25W/F | 30W/F | 40W/F | 50W/F | 60W/F | 90W/F | 100W/F
|
|
|
|
||||
|
Voltage Options
|
AC220V，AC380V, DC24V
|
|
|
|
||||
|
Input Signal
|
4-20mA (Default)
|
|
|
|
||||
|
Output Signal
|
4-20mA (Default)
|
|
|
|
||||
|
Control mode
|
A: On/Off type with light indicator signal feedback
B: On/Off type with passive contact signal feedback C: On/Off type with resistance potentiometer signal feedback D: On/Off type with resistance potentiometer and neutral position signal feedback E: Modulating type with servo control module F: 12V DC / 24V DC direct on-off type G: AC380V three-phase power supply with passive signal feedback H: AC380V three-phase power supply with resistance potentiometer signal feedback |
|
|
|
||||
|
Butterfly valve parameters
|
|
|
|
|
||||
|
Valve Size
|
DN50—DN1200
|
|
|
|
||||
|
Valve plate structure
|
Center line, two eccentric, three eccentric
|
|
|
|
||||
|
Seal style
|
Soft seal, hard seal
|
|
|
|
||||
|
Valve body material
|
Cast iron, WCB, CF8, CF8M
|
|
|
|
||||
|
Valve material
|
Cast iron, WCB, CF8, CF8M, ptfe lining, epDM lining
|
|
|
|
||||
|
Pressure rating
|
PN10、PN16、PN25
|
|
|
|
||||
|
Connection type
|
Flange type, clip type, thread
|
|
|
|
||||
|
Operating mode
|
Manual, electric, pneumatic
|
|
|
|
||||
FAQ
Q1:What are your main products?
A: Our main products are electric actuators, butterfly valves and gate valves.
Q2:Are you a traderor a manufacturer? Do you have a factory?
A: We are actuator manufacturer, we have experienced team to do custom products, we haveour own factory and production line.
Q3:If you select the actuator
A: We need you to provide the torque (torque), if you don'tknow, the valve diameter, and the valve interface drawing.
Q4:How do you guarantee quality?
A: We have our own quality control. Every product is controlled and tested before it leaves the factory and we offer A 12-month guarantee.
Q5:When can I receive theprice?
A: We will make an offer within 12 hours after receiving your inquiry. If it's an emergency, you can call us.
Q6:How do Iorder our valves and actuators?
A: Please send your inquiry to us via Email, Whatsapp, wechat, etc. We need to know the followinginformation before formal quotation.
1) Actuator: Actuator parameters, with what valve to use, use environment, temperature,special requirements.
2) valves: Valve flow medium, flow medium temperature, valve parameters.
Q7:How can I get a sample to check
your quality? A: Contact our sales specialists to arrange sample delivery. Please send us the details of the sample before placingorder.
your quality? A: Contact our sales specialists to arrange sample delivery. Please send us the details of the sample before placingorder.
Q8:If we place a formal order, what about the delivery date?
A: We have regular inventory of conventional products, and thesmooth delivery period is 3-7 days. If you need to customize production, communicate with sales experts to determine the specificdelivery time.
