Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GreenFoam
-
Model Number:
-
GFI-PIR Sandwich Panel
-
Product Name:
-
PIR polyisocyanurate sandwich panel for clean room
-
Material:
-
Aluminum foil & PU foam pre-insulated duct panel
-
Standard Size:
-
3950/2950/2900*1200*20mm
-
Foam Density:
-
50-55kg/m3 pre-insulated duct panel
-
Thermal Conductivity:
-
0.02W/m.k
-
Aluminum Foil Thickness:
-
0.08mm/0.2mm
-
Compressive Strength:
-
0.25MPa
-
Bending Strength:
-
2MPa
-
Water Absorption:
-
0.25%
-
Key Words:
-
PIR duct panel
Quick Details
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GreenFoam
-
Model Number:
-
GFI-PIR Sandwich Panel
-
Product Name:
-
PIR polyisocyanurate sandwich panel for clean room
-
Material:
-
Aluminum foil & PU foam pre-insulated duct panel
-
Standard Size:
-
3950/2950/2900*1200*20mm
-
Foam Density:
-
50-55kg/m3 pre-insulated duct panel
-
Thermal Conductivity:
-
0.02W/m.k
-
Aluminum Foil Thickness:
-
0.08mm/0.2mm
-
Compressive Strength:
-
0.25MPa
-
Bending Strength:
-
2MPa
-
Water Absorption:
-
0.25%
-
Key Words:
-
PIR duct panel

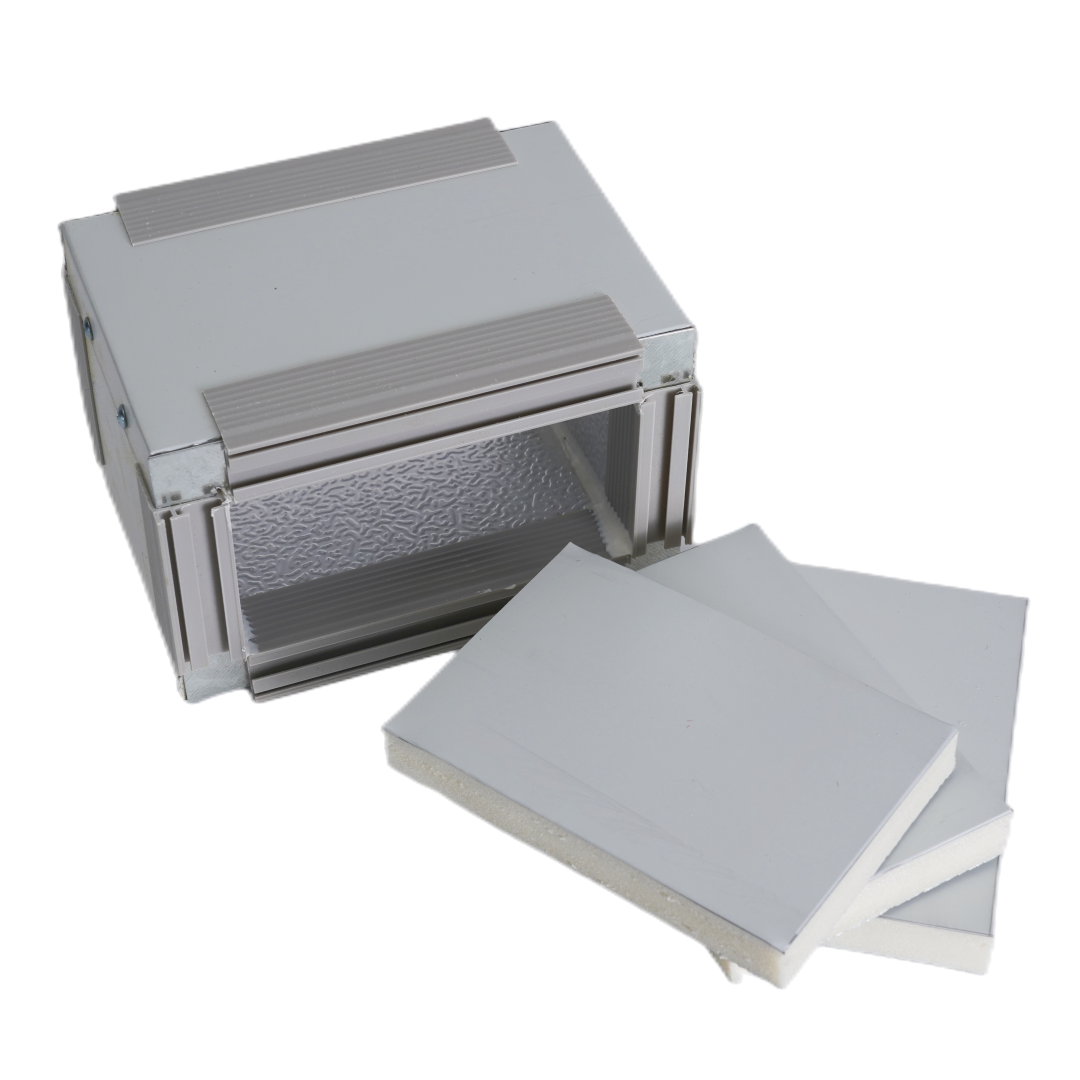

PIR / PUR Foam Pre-insulated Duct Panel is specially designed for HVAC duct system. It is consist of 20mm thickness PIR / PUR insulation foam faced with Aluminum or Galvanized Iron on both sides.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 50 kg/m3 |
| Aluminum foil thickness | 0.08mm/0.2mm |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.1% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 70 ℃ |
-
Fire-resistant and high-quality insulation materials.
-
Many advantages over regular metal ductwork, such as lighter weight, higher strength, longer durability, and better efficiency.
-
Different facing materials to meet different requirements and applications.
-
Widely used in various ventilation systems of central air conditioning units.
Fabrication:
Fabrication of Pre-insulated Air Duct including: tracing, cutting, gluing, folding, taping, profile&reinforcement, sealing .
During this proceduce, some accessories are needed: cutter, profile (flange), tape, aluminium reinforcement section bar, silicone sealant, and manual bending machine. We also supply these related accessories.
20mm P IR PUR Foam Air Duct Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
