High Quality Customized Digital Totem Hot Sale Outdoor Touch Screen Kiosk for Advertising High Quality Outdoor Display Screen

High Quality Customized Digital Totem Hot Sale Outdoor Touch Screen Kiosk for Advertising High Quality Outdoor Display Screen

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

≥10 Sets

US $1270

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Size:: 21 inch

Max Resolution:: other

Product name:: Kiosk outdoor

Application:: Outdoor

Specification:: Touch Screen

Type:: LED

Screen size:: 21 inch

Touch screen type:: Touchscreen

MOQ:: 1 set

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Netoptouch

Model Number:: DZ0021

Panel Size:: 21 inch

Max Resolution:: other

Product name:: Kiosk outdoor

Application:: Outdoor

Specification:: Touch Screen

Type:: LED

Screen size:: 21 inch

Touch screen type:: Touchscreen

MOQ:: 1 set

Product Description

• Easy-to-use durable structure for outdoor use.
• Ready for professional IP rated high brightness outdoor screen
• Equips with protective front glass to protect screen
• Self-cooling and heat radiation system
• 7x24 hours/365 days operation
• Content of advertisement input via USB disk direct to screen memory
• Ready-to-play software for customized content and device management available.
• Direct WiFi connectivity, 3G&4G module for choice.
• With ground fixing plate and hooks to move it.

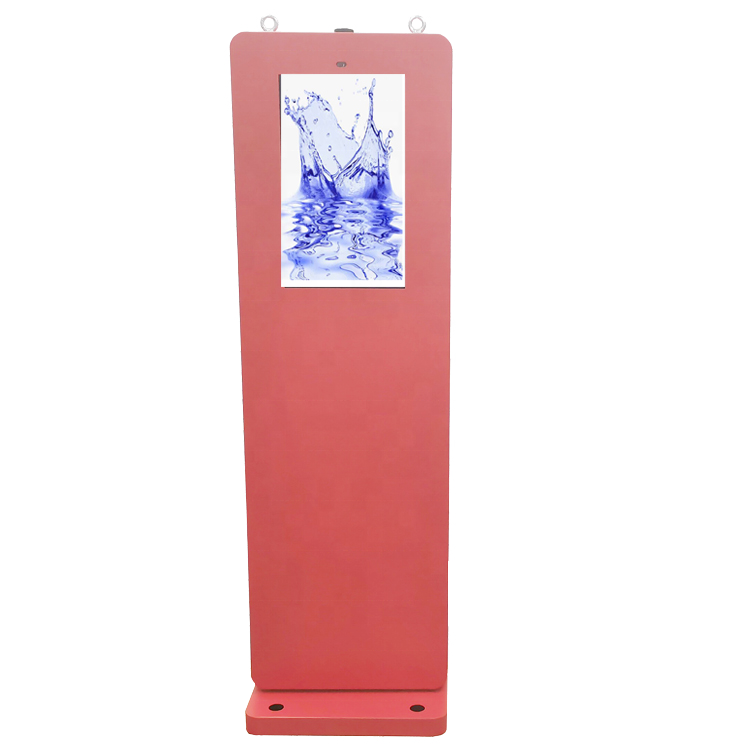

Full set of 21''outdoor totem including the following items:

1. 21.5 inch digital signage LCD/LED monitor

2. Embed computer: Android PC run in Android operating system.

3. Outdoor Kiosk case: 1.5mm SGCC galvanized steel sheet. The inner layer is sprayed with zinc-rich base powder surface coating Akzo Nbel outdoor plastic powder protection

4. Other accessories: leakage protection switch, SPD, Mingwei power supplyx2, Intelligent cooling system)

If you need Peripheral devices, 3G&4G modem and external extension available.

Weather/Proof/Dust proofing

Place It Anywhere you like

All weather/dust proofing totally designed for outdoor use.

High brightness screen:

Super clarity in Direct Sunlight.

Screen will get upto 3000 nits/m2 brightness, which is about 5 times than normal display do.

Bolt for lifting

Consider to safety and carry on issue, there are two strong lifting bolt on the top of this kiosk to avoid hurt.

Security Lock

Double locks with special and unique keys to prevent people who do not get the right keys to open the kiosk.

Powerful Amlifier

Two 8ohm 10 watt amplifier for outdoor use loadspeaker on both sides, to make sure users could hera what the totem display.

Intelligient Brightness control system

Brigtness of display will be adjusted automatically via light sensor based on surrounding light levels.

Cooling system

Integrated Temperature control system

With interal air-conditioning system which allows for constant use in outdoor environment, plus cooling fans keeps the panel and other electrical components at best suitable working temperature, which brings a long and reliable life for the display.

LED Display	21 inch, 16:9 A+ grade	Embed PC(optional)	Android motherboard
			Resolution: 1920x1080		RK3288 chip
			Display colors: 16.7m		2GB RAM
			Response time: 8ms		8GB Rom
		Brightness: 1000cd/m2	Infrared touch panel(None touch panel, for choice)	Resolution: 4096x4096
		Contrast: 1000:1			Response time: 8ms
Matrial of case	1.5mm SGCC steel sheet			Lifelong: >50000000 times
Surface painting	Shiny oil(optional)			Accurancy: +-1mm

Decode Resolution	Up to 1080P	Ethernet network	10m/100m ethernet network
OS	Android 7.0	SD card	SD card&TF card avaialble
Display Mode	Circle/Timing/Emergent playing...	SATA port	Support built-in SATA
Network Support	3G, Ethernet, Wifi, external extensional and so on	LVDS output	One for 50/60 display
Video Display	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4...	HDMI output	Support 1080P output
Picture Form	BMP, JPEG, PNG,GIF	Audio/Video	CVBS, 4R/20W, 8W/10W
USB 2.0 Port	USB HOSTx2, USB portx2	RTC clock	Support
Serial Port	RS232x3	Resume by Alarm	Support

Digital signage/Digital Totem

Equips with big size screen(usually 21.5 inch, 32 inch, 43 inch, 55 inch...), this kind of outdoor kiosk usually is used to be as advertising player and digital signage. It is easy to operate and install with cheap price. Equips with leakage protection switch, SPD, and intelligient cooling system, y ou can install it in 100% outdoor places.

Certifications

FAQ

Q: Are you trading company or manufacturer of kiosk?

A: We are kiosk case manufacturer&factory and have our own kiosk assemble workshop. Our factory located at Songgang, Shenzhen,

Q: How long is your delivery time?

A: Generally it is about 20 days after deposit for sample.

Q: Do you provide free samples?

A: Because our MOQ is one piece, and most of our kiosk are customized design, free sample is not available.

Q: What is your terms of payment?

A: T/T, Paypal, Wester Union and Trade Assurance are welcome. Usually 50% of the totdal payment as deposit, rest to be balance before delivery

Q: How long is your Gurranty Period?

A: Normally the warranty period is one year dated from delivery, during this period, if there is any part cant work, we will help you to fix it, or delivery you replacement for free. Extra cost required for longer warranty period.
