Quick Details
-
Storage Type:
-
standard
-
The charging ratio:
-
standard
-
The discharge rate:
-
standard
-
Battery Size:
-
2v 1000ah
-
Brand Name:
-
Rosen/OEM
-
Model Number:
-
2v 1000ah
-
Place of Origin:
-
China
-
Weight:
-
standard
-
Terminal:
-
Lead/Copper
-
Sealed Type:
-
Sealed
-
Application3:
-
Uninterruptible Power Supplies
-
Application2:
-
Solar Energy Storage Systems
-
Material:
-
High Pure Lead
-
Plates:
-
Lead Calcium
-
Electrolyte:
-
Sulfuric Acid Gel
-
Product name:
-
China Rechargeable AGM Gel 2V 1000Ah Lead Acid Battery
-
Maintenance:
-
Free
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
VRLA
-
Cycle Life:
-
standard
-
Storage Type:
-
standard
-
The charging ratio:
-
standard
-
The discharge rate:
-
standard
-
Battery Size:
-
2v 1000ah
-
Brand Name:
-
Rosen/OEM
-
Model Number:
-
2v 1000ah
-
Place of Origin:
-
China
-
Weight:
-
standard
-
Terminal:
-
Lead/Copper
-
Sealed Type:
-
Sealed
-
Application3:
-
Uninterruptible Power Supplies
-
Application2:
-
Solar Energy Storage Systems
-
Material:
-
High Pure Lead
-
Plates:
-
Lead Calcium
-
Electrolyte:
-
Sulfuric Acid Gel
-
Product name:
-
China Rechargeable AGM Gel 2V 1000Ah Lead Acid Battery
-
Maintenance:
-
Free

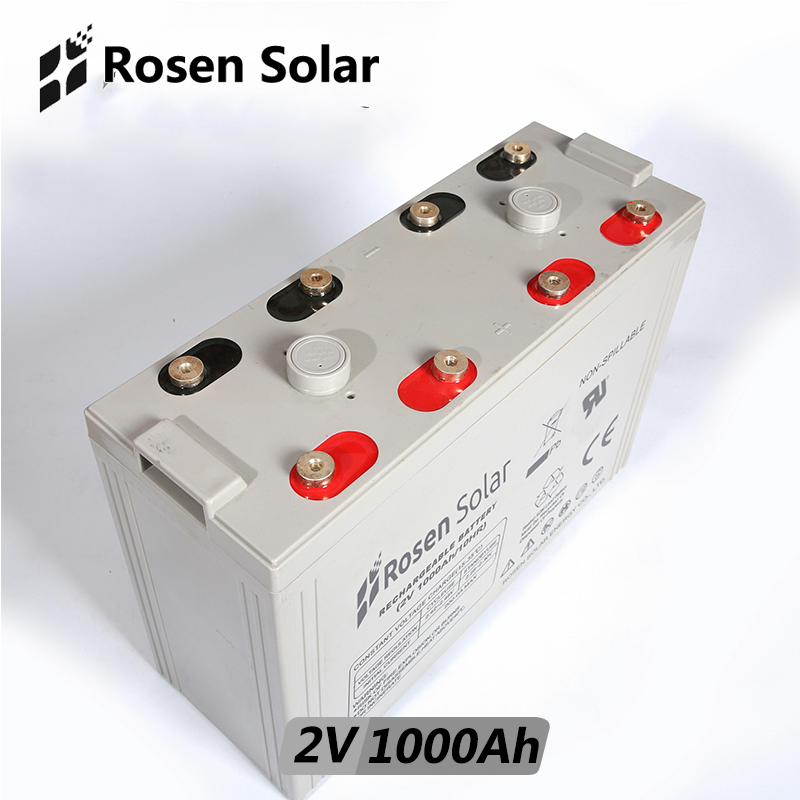

China Rechargeable AGM Gel 2V 1000Ah Lead Acid Battery
2V Series Technical Data
|
1, Function Parameter
|
|
5, Environment Temperature
|
|
||
|
Norminal Voltage
|
2V
|
Discharge Temperature
|
-20-50℃
|
||
|
Norminal Capacity(10 hours rate)
|
2500Ah
|
Charge Temperature
|
-10-50℃
|
||
|
Numbers of Cells
|
1cell
|
Storage Temperature
|
-20-60℃
|
||
|
2, Rated Capacity at 25℃(77℉)
|
|
6, Inner Resistance & Max. Discharge Current
|
|
||
|
10 hour rate(0.1C, 1.80V/cell)
|
2500Ah
|
Fully Charge Battery at 25℃(77℉)
|
0.15mΩ
|
||
|
3 hour rate(0.25C, 1.75V/cell)
|
1728Ah
|
Max. Discharge Current
|
25000A(5s)
|
||
|
1 hour rate(0.55C, 1.60V/cell)
|
1250Ah
|
Short Circuit Current
|
9000A
|
||
|
3, Capacity affected by Temperature(10 hour rate)
|
|
7, Self-discharge@25℃(77℉)
|
|
||
|
40℃(104℉)
|
102%
|
Capacity after 3 Month Storage
|
92%
|
||
|
25℃(77℉)
|
100%
|
Capacity after 6 Month Storage
|
84%
|
||
|
0℃(32℉)
|
90%
|
Capacity after 9 Month Storage
|
74%
|
||
|
-15℃(5℉)
|
70%
|
Capacity after 12 Month Storage
|
65%
|
||
|
4, Constant Voltage Charging at 25℃(77℉)
|
|
8, Dimension & Weight
|
|
||
|
Cycle Charge
|
2.35-2.4V
|
Length
|
710mm
|
||
|
Maximum Charging Current
|
750A
|
Width
|
353mm
|
||
|
Temperature Compensation
|
-5mV/℃
|
Height
|
341mm
|
||
|
Float Charge
|
2.23-2.27V
|
Total Height
|
362mm
|
||
|
Temperature Compensation
|
-3.3mV/℃
|
Reference Weight
|
155kgs
|
||
Key Features :
♦Long service life according to EUROBAT Classification
♦Up to 2200 deep discharge cycles
♦High gas recombination efficiency
♦Wide suitability of ambient temperature range
♦Low self discharge
A
. Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates.The cells shall have no residual free or bulk liquid electrolyte.
B
. Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
C
. Container & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
D
. Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
E
. Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.
|
Element
|
Electrolyte
|
Positive Plate
|
Negative Plate
|
Container
|
|
Material
|
Colloidal silicon
|
Lead dioxide
|
Lead
|
ABS
|
|
Element
|
Cover
|
Safety valve
|
Terminal/Wire
|
Separator
|
|
Material
|
ABS
|
Rubber
|
Copper
|
Fiberglass
|
Factory
Workshop
Our Workshop
Production Line
Production Line
Team
Our Team
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : 5-15days
