Smart home security motion sensor wireless ir beam sensor

Smart home security motion sensor wireless ir beam sensor

FOB Reference Price: Get Latest Price

≥1 Pairs

US $21.7

≥100 Pairs

US $20.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Digital Frequency Beam Detector

Number of beams:: 3 beams

Beam characteristics:: Pulsed infrared triplicate beams

Outdoor detection range:: 250 meters

Material:: PC engineering plastic

Response speed:: 50~700msec adjustable

Alarm period:: 2 sec(±1) nominal

Detection system:: Simultaneous blocking of 3 infrared beams

Power input:: DC 10-24 / AC 10-18V

Warranty:: 2 years

Certification:: CE

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: ABE-250L

Product name:: Digital Frequency Beam Detector

Number of beams:: 3 beams

Beam characteristics:: Pulsed infrared triplicate beams

Outdoor detection range:: 250 meters

Material:: PC engineering plastic

Response speed:: 50~700msec adjustable

Alarm period:: 2 sec(±1) nominal

Detection system:: Simultaneous blocking of 3 infrared beams

Power input:: DC 10-24 / AC 10-18V

Warranty:: 2 years

Certification:: CE

Brief introduction

Smart home security motion sensor wireless ir beam sensor

1.The Active Infrared Beam Detectors utilize invisible Infrared barriers to detect the intrusion. It has long detection/guarding range, low-cost, high-quality, and installation-friendly features.

2.These photoelectric beam detectors have N.O. and N.C. alarm output, can work with difference systems through reliable wired connection. It's the ideal security detectors for your intrusion alarm system, access control system, IP surveillance system and home automation system.

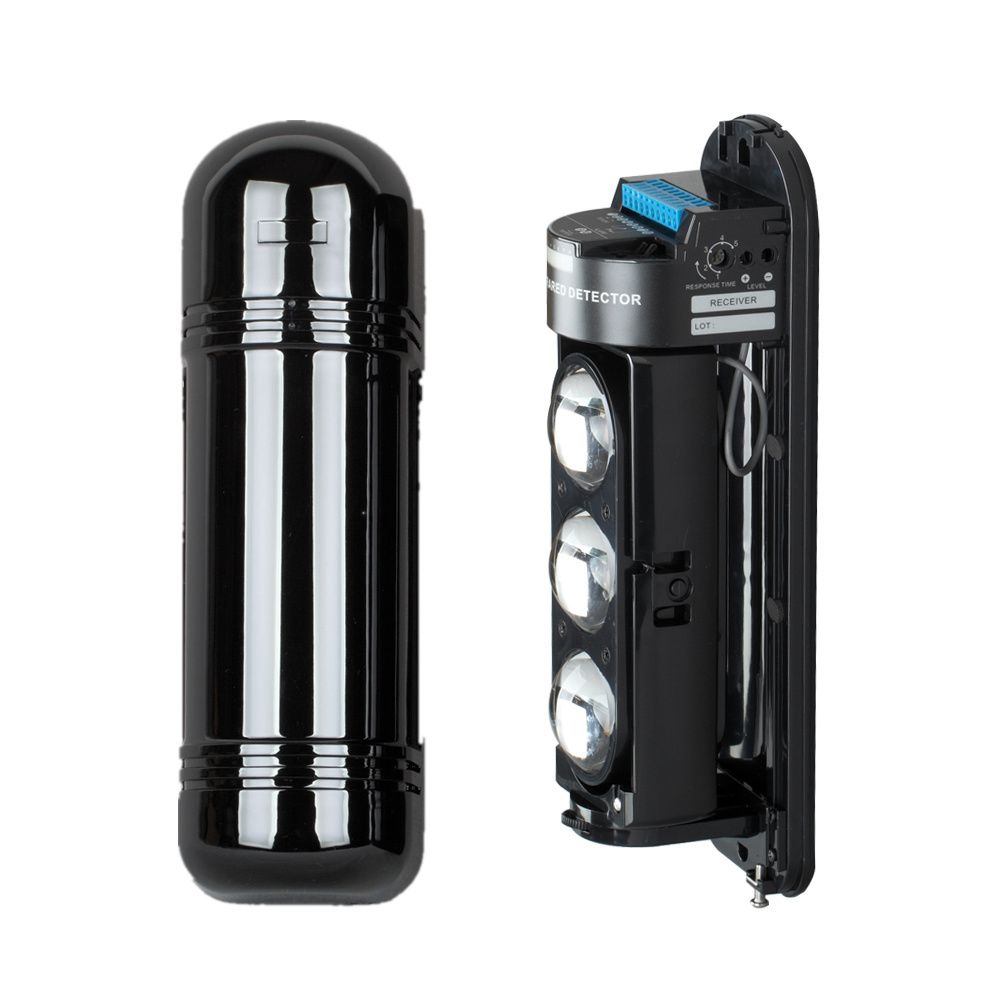

Structure

Features

1. 3 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.
2. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
3. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
4. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.

5. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.

6. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.
7. Fully seal structure, with rain cover design, C relay output.

8. External Protection: Protection from rain, dust & insects.
9. Sniper viewfinder with x2 magnification

10. Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.

Parameters

Model		ABE-50L	ABE-100L	ABE-150L	ABE-200L	ABE-250L
Detection Range	Outdoor	50m	100m	150m	200m	250m
	Indoor	150m	300m	450m	600m	750m
Number of beams		3 beams
Detection Method		Simultaneous blocking of 3 infrared beams
Interruption Time		50msec, 80msec,306msec, 408msec, 700msec (selectable)
Alarm period		2 sec(±1) nominal
Power Supply		DC10~24V; AC10~18V
Current Consumption		40mA max
Alarm Output		NO. NC reply (AC / DC30V, 0.5A max)
Tamper Switch		N.C.(DC 24V, 0.5A max)
Operating Temperature		-25℃ to +55℃
Environment Humidity		95% max
Alignment Angle		Horizontal 180°(±90°), Vertical 20°(±10°)
Mounting		Wall or Pole
Protection Degree		IP65
Material		PC engineering plastic
Weight (Transimtter and Receiver)		1400g
Attachments	U bracket	2pcs, 70.437.521.5mm, δ=1.5mm, stainless steel
	Pole mounting srew	Pole mounting screws: 4pcs, PM430mm Wall mounting screws: 4pcs, PM425mm
	Installation manual	1
Spiral Terminal Dedew and Defrost Method		Heaters(need to purchase separately)
Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized.
