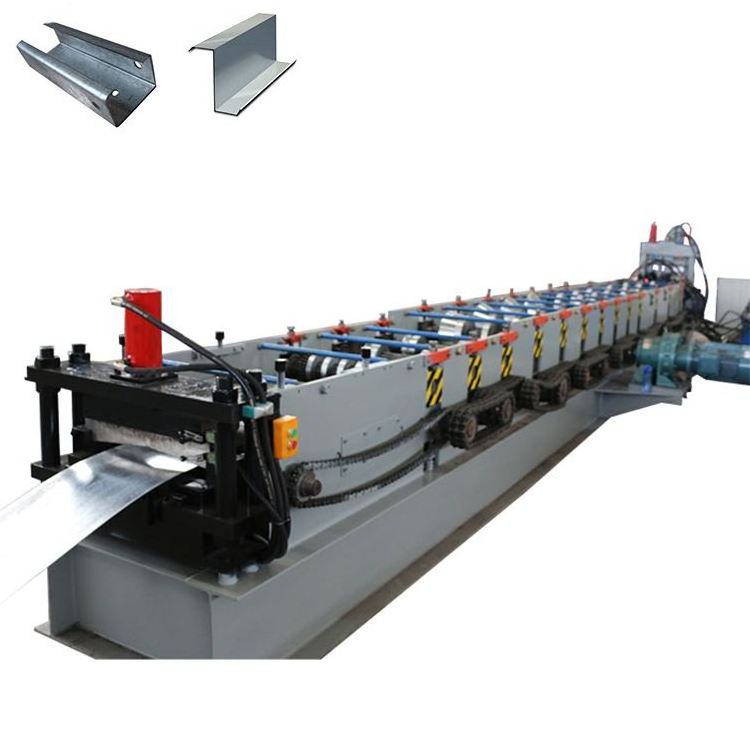

Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine
Automatic c z Purlin Channel Roll Forming Making Machine

Automatic c z Purlin Channel Roll Forming Making Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $25000
≥10 Sets
US $15000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Forward
Voltage:
380V 50HZ 3 Phase
Power:
15KW+5.5KW
Dimension(L*W*H):
9500*1600*1700mm
Weight:
9000kg
Certification:
TUV / ISO / CE
Suitable material:
Galvanized steel coil
Coil thickness:
1.5-3.0mm
Control type:
PLC automatic
Roller station:
15
Main driving motor:
15KW
Hydraulic pump motor:
5.5KW
Shaft material:
45# steel, solid dia.80mm
Roller material:
GCr15
Cutting blade:
Cr12Mov

Quick Details

Work Pressure:
High pressure
Production Capacity:
8~12m/min
Place of Origin:
Hebei, China
Brand Name:
Forward
Voltage:
380V 50HZ 3 Phase
Power:
15KW+5.5KW
Dimension(L*W*H):
9500*1600*1700mm
Weight:
9000kg
Certification:
TUV / ISO / CE
Suitable material:
Galvanized steel coil
Coil thickness:
1.5-3.0mm
Control type:
PLC automatic
Roller station:
15
Main driving motor:
15KW
Hydraulic pump motor:
5.5KW
Shaft material:
45# steel, solid dia.80mm
Roller material:
GCr15
Cutting blade:
Cr12Mov

Automatic c z Purlin Channel Roll Forming Making Machine

Product Description

Product Name Automatic c z Purlin Channel Roll Forming Making Machine
Suitable material Galvanized steel coil
Coil thickness 1.5-3.0mm
Control type PLC automatic
Roller station 15
Main driving motor 15KW
Hydraulic pump motor 5.5KW
Cutting blade Cr12Mov
Main Shaft Material 45# steel with finish turning ;
Product Category

About Us
Company Advantage

Certifications

Customer Photo

Packaging & Shipping

FAQ

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: W e provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts
replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
