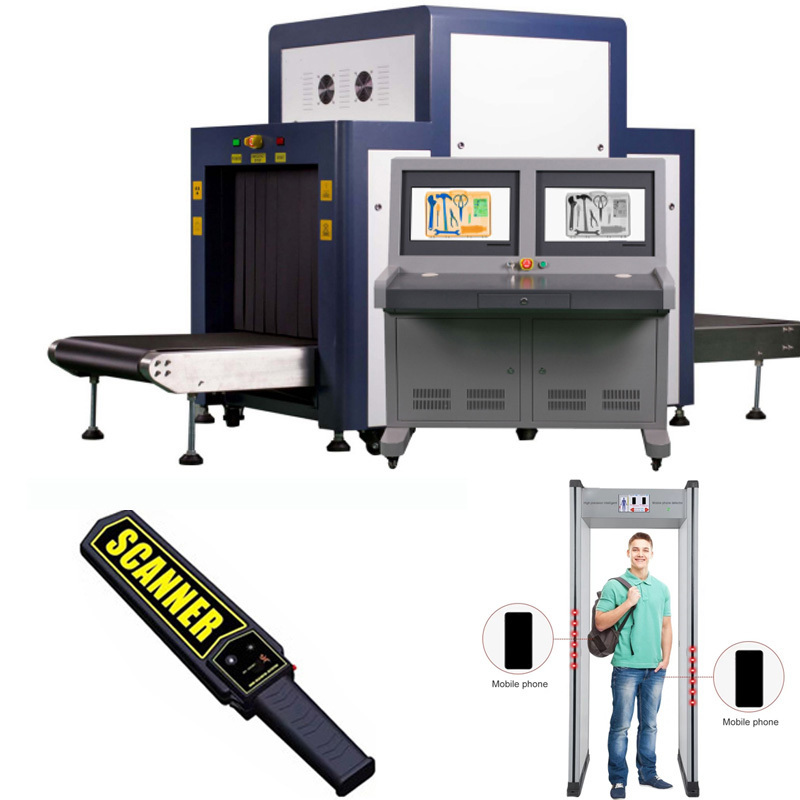

SECUERA Professional Luggage X ray Inspection Machine used x-ray Scanner for Airport Train Station

Feature

1. Alarm by sounds & light: Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control: Turn off the machine only need one step: Revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye: Could be expediently observing enlargement area.
8. Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.

Technical parameter

Tunnel size: 650(w)*500(h)mm
Conveyor speed: 0.22 m/s
Conveyor max load: 50kg
Single inspection dosage < 1.5 gy
Wire resolution: 0.1mm metal line
Steel penetration: 8mm armor plate
Film safety: For ISO 1600
Maximum leakage radiation < 0.3 gy/h

X-ray generator

Orientation: Vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60
Generator cooling/working periods sealed oil bath with forced air/100%

Storage temperature: -20 degree to 60 degree

Q : Are you manufacturer or trader?
A :We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.

Q . Do you sell the accessories for Products ?
A :Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.

Q .How about the packing for product?
A :Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .

Q . What’s your main product?
A :We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines

Q .Where is your main sales market?
A :Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia

Q .How about your after-sales policy?
A :Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .

Q .Do you accept customer Logo and customized ?
A :we accept kinds of customized and logo of all of our products for customers

Q :How can we contact with you?

A :Phone number:+86-13691883242

Skype:secueradetector

Whatsapp:+86-13691883242

Wechat:+86 13691883242
