- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GRX
-
Model Number:
-
GRX-P300-802E
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Business 10/100M PoE Switch with 10 ports
-
Dimensions (H x W x D):
-
130*120*36mm
-
Uplink Ports:
-
2 Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at/IEEE802.3bt
-
MOQ:
-
20 Pieces
-
Forwarding Rate:
-
100 Mbps
-
Weight:
-
0.88kg
-
Transmission Distance:
-
20KM
-
Power:
-
120w
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6Gbps
-
Brand Name:
-
GRX
-
Model Number:
-
GRX-P300-802E
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Business 10/100M PoE Switch with 10 ports
-
Dimensions (H x W x D):
-
130*120*36mm
-
Uplink Ports:
-
2 Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at/IEEE802.3bt
-
MOQ:
-
20 Pieces
-
Forwarding Rate:
-
100 Mbps
-
Weight:
-
0.88kg
-
Transmission Distance:
-
20KM
-
Power:
-
120w

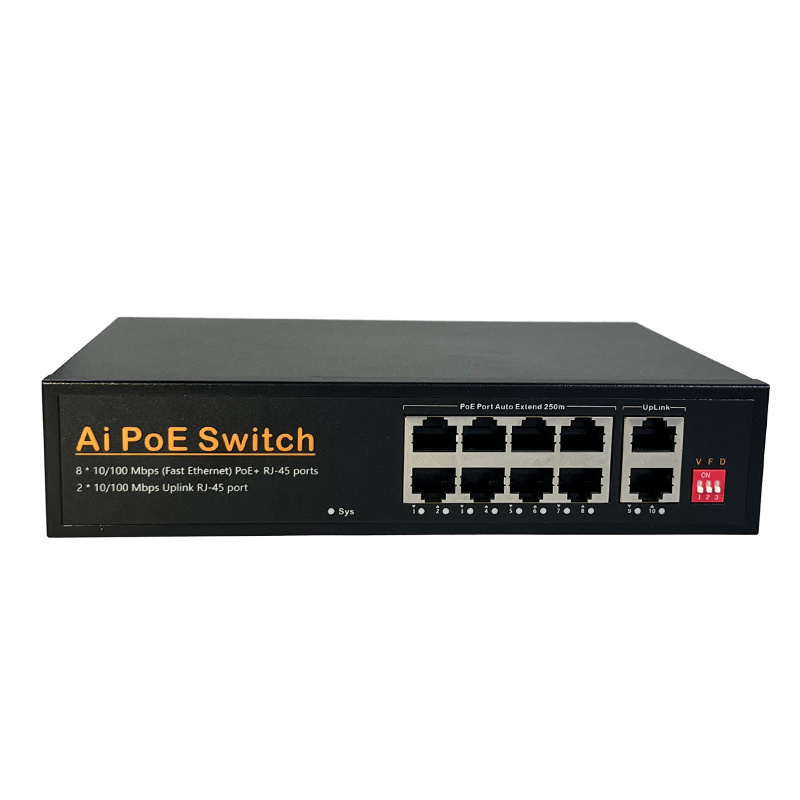

Product Display
Data Parameters
|
Model
|
GRX-P300-402E
|
|
|
|
||||
|
Product Name
|
10 Ports 100Mbit/s Switch
|
|
|
|
||||
|
Port Feature
|
|
|
|
|
||||
|
Fixed Port
|
8*10/100Base-TX POE Port (Data/Power)
2*10/100Base-TX Upper RJ45 Port (Data)
|
|
|
|
||||
|
Characteristics of Network port
|
Port 1-10 is 10/100BaseT(8) automatic detection, full/half duplex MDI/MDI-X adaptive
|
|
|
|
||||
|
Networking Protocol
|
IEEE802.3
IEEE802.3u
IEEE802.3x
|
|
|
|
||||
|
Backplane Bandwidth
|
2 Gbps
|
|
|
|
||||
|
Packet Forwarding Rate
|
1.488Mpps
|
|
|
|
||||
|
Packet Forwarding Cache
|
1.25M
|
|
|
|
||||
|
MAC Address Table
|
2K
|
|
|
|
||||
|
Forwarding Mode
|
Store-and-Forward
|
|
|
|
||||
|
Transmitting in Twisted-Pair
|
10 BASE-T : Cat3,4,5 UP(≤250 meter)
100 BASE-TX : Cat5 or later UP(≤100 meter)
|
|
|
|
||||
|
LED Indicator
|
Running Indicator: Sys (Green)
Network Indicator: Link(Green)
|
|
|
|
||||
|
Special Function(can be custermized)
|
|
|
|
|
||||
|
Function of Switch
|
SW1:VLAN
|
|
|
|
||||
|
|
SW2:Fouce Output
|
|
|
|
||||
|
|
SW3:Watchdog
|
|
|
|
||||
|
Characteristics of PoE and Power Supply
|
|
|
|
|
||||
|
Power Supply Standard of PoE
|
Ports 1-8 support IEEE802.3af/at PoE power supply
|
|
|
|
||||
|
Power Supply Pin of PoE
|
1/2(+), 3/6(-)
|
|
|
|
||||
|
Maximum Single port/Average power of PoE
|
AT-30W/AF-15.4W
|
|
|
|
||||
|
Efficiency of Power Supply
|
120W
|
|
|
|
||||
|
Overall Power Consumption
|
Standby power consumption:<3W
Full power consumption:<120W
|
|
|
|
||||
